Dynaweld Water Soluble Purging Paper & Tape Dubai UAE

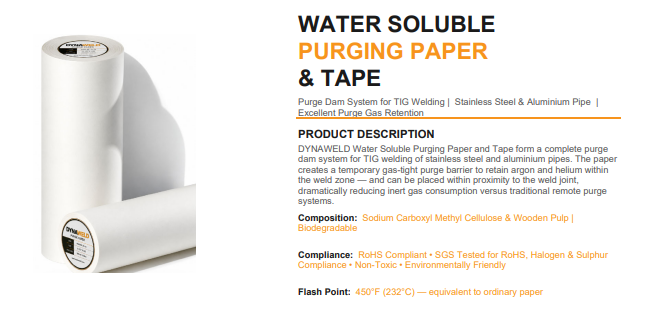

Dynaweld Water Soluble Purging Paper & Tape
Complete purge dam system for TIG welding of stainless steel and aluminium pipes. Creates a gas-tight barrier to retain argon and helium within the weld zone β dramatically reducing inert gas consumption while ensuring clean, oxide-free root welds. Dissolves completely in water with zero residue.
Product Overview
What It Is
Dynaweld Water Soluble Purging Paper and Tape is a complete purge dam system for TIG (GTAW) welding of stainless steel and aluminium pipes. The paper creates a temporary gas-tight purge barrier inside the pipe, retaining argon or helium within the weld zone. Placing the dams close to the weld joint dramatically reduces inert gas consumption versus traditional remote purge systems. After welding, the paper and tape dissolve completely in water or steam, leaving zero residue inside the pipeline.
Who Uses It
Specified by welding engineers, pipeline supervisors, quality inspectors, and fabrication shops working on stainless steel and aluminium TIG welding projects. Used across oil & gas pipeline construction, petrochemical plant piping, pharmaceutical and food & beverage process pipework, nuclear facility piping, shipbuilding, and any application where internal weld quality β freedom from oxidation and sugaring β is a contractual requirement.
Where It Is Used
Suitable for any pipe bore where a purge dam can be inserted β from small bore instrument tubing to large diameter pipeline. Commonly used on stainless steel process pipework in petrochemical facilities across UAE, Saudi Arabia, Qatar, Iraq, and Nigeria, and on pharmaceutical and food industry pipework in Egypt, Kenya, South Africa, and Tanzania where internal cleanliness is mandatory for hygiene compliance.
SGS Testing & Compliance Certification
SGS Independent Laboratory Tested β Global Hardware & Tools LLC
Tests: EU RoHS Directive (EU) 2015/863 β Lead, Mercury, Cadmium, Cr(VI), PBB, PBDE, Phthalates (DEHP, BBP, DBP, DIBP) β PASS | Halogen (F, Br, I) β ND | Sulphur β ND
Tests: Halogen (F, Br, I) β ND | Sulphur β ND | Chlorine (Cl): 170 mg/kg β within acceptable limits per EN 14582:2016
Non-toxic Β· Environmentally Friendly Β· RoHS Compliant Β· Accepted by nuclear, petrochemical, food & beverage industries
Product Specifications β Complete Size Range
Sheets
| Item No. | Grade | Thickness (inch) | Thickness (mm) | Size (inch) | Size (metric) | Case Pack |
|---|---|---|---|---|---|---|
| ASW-35/S-112RW | ASW-35 | 0.0035" | 0.088 mm | 8-1/2" Γ 11" | 22 cm Γ 28 cm | 1,000 sheets/ream |
| ASW-35/S-14R | ASW-35 | 0.0035" | 0.088 mm | 8-1/2" Γ 14" | 216 mm Γ 355 mm | 500 sheets/ream |
| ASW-35/S-22R | ASW-35 | 0.0035" | 0.088 mm | 17" Γ 22" | 431 mm Γ 559 mm | 500 sheets/ream |
| ASW-60/S-22R | ASW-60 | 0.0070" | 0.177 mm | 15-1/2" Γ 22" | 394 mm Γ 559 mm | 250 sheets/ream |
Rolls
| Item No. | Grade | Thickness (inch) | Thickness (mm) | Size (inch) | Size (metric) | Case Pack |
|---|---|---|---|---|---|---|
| ASW-35/R-9 | ASW-35 | 0.0035" | 0.088 mm | 9" Γ 165 ft | 23 cm Γ 50 m | 4 rolls/case |
| ASW-35/R-15 | ASW-35 | 0.0035" | 0.088 mm | 15-1/2" Γ 165 ft | 39 cm Γ 50 m | 4 rolls/case |
| ASW-40C/R20.5 | ASW-40C | 0.0040" | 0.102 mm | 20-1/2" Γ 165 ft | 52 cm Γ 50 m | 4 rolls/case |
| ASW-60/R-15 | ASW-60 | 0.0070" | 0.177 mm | 15-1/2" Γ 165 ft | 39 cm Γ 50 m | 4 rolls/case |
| ASW-60/R-31 | ASW-60 | 0.0070" | 0.177 mm | 31" Γ 165 ft | 79 cm Γ 50 m | 4 rolls/case |
Water Soluble Tape
| Item No. | Width (inch) | Width (metric) | Length | Case Pack | Notes |
|---|---|---|---|---|---|
| ASWT-1 | 1" | 2.5 cm | 300 ft / 92 m | 5 rolls/case | Standard |
| ASWT-2 | 2" | 5 cm | 300 ft / 92 m | 10 rolls/case | EZ Peel Release Liner β quick edge peeling on site |
Recommended Proximity to Weld Joint
| Pipe Diameter (inch) | Pipe Diameter (metric) | Recommended Distance (inch) | Recommended Distance (metric) |
|---|---|---|---|
| 2" β 8" | 51 β 203 mm | 6" | 152 mm |
| 10" β 22" | 254 β 559 mm | 8" | 203 mm |
| 24" β 36" | 610 β 914 mm | 12" | 305 mm |
How to Build & Use a Purge Dam β Step by Step
Trace & Impress
Press the water soluble paper along the pipe's inner edge to create an impression of the inner diameter. Fold to form a 90Β° angle.
Cut
Cut in a circle around the impression β approximately 1/3Γ larger than the pipe diameter to allow for the folded flange.
Slit
Cut 1"β2" slits perpendicular to the impression β start at the 12 o'clock position, then 3 o'clock, 6 o'clock, and so on around the full circle.
Position & Tape
Position the slit paper dam inside the pipe at the correct proximity to the weld zone (see table above). Secure the dam around the entire circumference with Dynaweld Water Soluble Tape.
Activate Tape
Lightly dab a damp sponge along the tape seal. The moisture reactivates the adhesive, creating a low air-permeability seal. Allow to dry to achieve an effective gas-tight seal.
Repeat Opposite Side
Repeat Steps 1β5 on the opposite side of the pipe to close the purge chamber. Ensure both dams are positioned at the correct distance from the weld zone.
Introduce Purge Gas
Insert the purge gas needle into the root gap. Introduce argon or helium while ensuring connection to gas line. Monitor oxygen levels if possible.
Weld
Carry out the TIG welding process. The paper dams retain the purge gas within the purge chamber, ensuring a clean, oxide-free root weld.
Dissolve & Remove
After welding, introduce water or steam during hydro-test. The paper and tape dissolve completely and rapidly β leaving zero residue inside the pipeline.
Key Features & Benefits
Excellent Purge Gas Barrier
Low air-permeable barrier retains argon and helium within the weld zone β essential for clean, oxide-free root welds on stainless steel. Placing dams close to the weld joint (not 10β20 ft away) dramatically reduces the volume of inert gas needed to displace oxygen from the purge chamber.
Completely Dissolvable
Dissolves effortlessly and rapidly in water or steam during hydro-test β in both hot and cold water. Dissolution rate increases with higher water temperature. Will NOT dissolve in oil, fuel, MEK, acetone or other solvents. Dissolves in Ethylene or Propylene Glycol solutions up to 20% concentration.
Zero Residue β Biodegradable
No residue remains inside the pipeline after dissolution. Biodegradable composition safe for nuclear, food & beverage, petrochemical, and pharmaceutical pipework β where zero contamination of the pipeline interior is a mandatory requirement.
SGS Tested β RoHS, Halogen & Sulphur
Independently tested by SGS laboratory (AprilβMay 2025) for RoHS EU 2015/863 compliance, Halogen content, and Sulphur content. Test reports issued directly to Global Hardware & Tools LLC (M9 Mussafah, Abu Dhabi). Non-toxic, safe, accepted by nuclear, petrochemical and food & beverage industries.
Wide Range of Grades & Sizes
Three paper grades (ASW-35 at 0.088mm, ASW-40C at 0.102mm, ASW-60 at 0.177mm) in multiple sheet sizes and roll widths up to 31 inches β suitable for purge dams on any pipe diameter from small bore to large diameter mainline. EZ Peel tape option for faster site installation.
Repositionable Tape
The dry tape has a controlled tack adhesive that allows repositioning before final placement β useful for site welding where precise dam positioning is needed. Once positioned, dampen with a sponge to maximise adhesion and create a zero air-permeable seal.
Applications by Industry
| Industry | Application |
|---|---|
| Oil & Gas β Pipelines | TIG root pass purge dam for stainless steel and duplex/super duplex pipeline welds β UAE (ADNOC), Saudi Arabia (Aramco), Qatar (QatarEnergy), Iraq (Basra), Nigeria (NNPCL). Mandatory on corrosion-resistant alloy (CRA) lined or fully CRA pipelines where internal oxidation is not acceptable |
| Petrochemical & Refining | Stainless steel and high-alloy process pipework TIG welding in refineries and chemical plants β Dammam, Jeddah, Ruwais, Basra, and Lagos β where internal cleanliness prevents product contamination and corrosion initiation at the weld root |
| Nuclear Power | Nuclear-grade pipework welding where zero contamination and certified compliance documentation are required β SGS test reports provide the evidence chain required by nuclear quality assurance programmes |
| Food & Beverage | Hygienic process pipework TIG welding in dairy, beverage, food processing, and brewing β stainless steel 304 and 316L pipe welds where internal sugaring would create bacteria-trapping surface defects |
| Pharmaceutical & Biotechnology | High-purity stainless steel process pipework for pharmaceutical manufacturing, biotech, and cleanroom installations where validated internal weld quality is required by GMP and FDA regulations |
| Offshore Platforms | Stainless and duplex process piping TIG welding on offshore topside facilities β Arabian Gulf, offshore Nigeria, offshore Oman β where internal oxidation in seawater or produced fluid service causes preferential corrosion attack |
| Shipbuilding & Marine | Stainless steel marine pipework TIG welding for exhaust, seawater, and chemical service lines in shipyards across UAE, South Africa, Ghana, and Nigeria |
Frequently Asked Questions
What is water soluble purging paper and why is it used in TIG welding?
Does Dynaweld purging paper dissolve in cold water and leave any residue?
Is this purging paper SGS tested and suitable for food, pharmaceutical and nuclear pipework?
What grades of purging paper are available and which should I use?
How can I get pricing for Dynaweld purging paper and tape in UAE, Saudi Arabia, Qatar or Africa?
For pricing, send us your required grade (ASW-35 / ASW-40C / ASW-60), format (sheet or roll), size, and quantity:
