Pipe Cutting and Beveling Machine

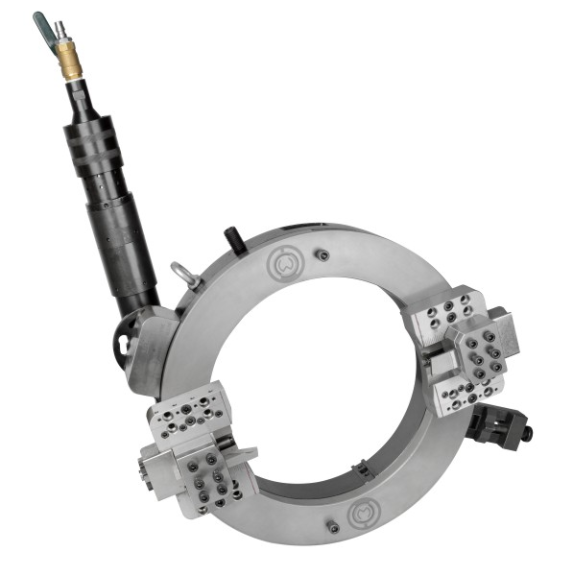

Air / Electrical / Gas Operated Pipe Cutting And Beveling Machine

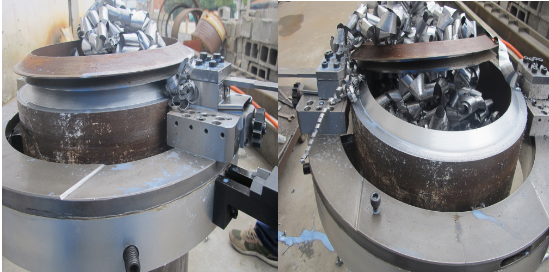

This series of machine are ideal for all types of pipe cutting, beveling and end preparation. The split frame design allows the machine to split in half at the frame and mount around the OD of the in-line pipe or fittings for strong, stable clamping. The equipment performs precision in-line cut or simultaneous cut/bevel, single point, counter bore and flange facing operations, as well as weld end preparation on open ended pipe.
Features:
Applications:
Model |
Working Range (OD) |
d (mm) |
h (mm) |
L (mm) |
|
Inch |
mm |
||||
89 |
3/4”-3” |
25-89 |
94 |
137 |
160 |
159 |
2”-5” |
50-159 |
170 |
215 |
178 |
168 |
2”-6” |
50-168 |
185 |
225 |
178 |
230 |
3”-8” |
80-230 |
236 |
253 |
178 |
275 |
5”-10” |
125-275 |
283 |
277 |
178 |
305 |
6”-10” |
150-305 |
316 |
290 |
178 |
325 |
6”-12” |
168-325 |
334 |
303 |
178 |
377 |
8”-14” |
219-377 |
386 |
330 |
178 |
426 |
10”-16” |
273-426 |
438 |
357 |
180 |
457 |
12”-18” |
300-457 |
469 |
373 |
180 |
508 |
14”-20” |
355-508 |
518 |
399 |
190 |
560 |
16”-22” |
400-560 |
570 |
424 |
190 |
610 |
18”-24” |
457-610 |
618 |
448 |
190 |
660 |
20”-26” |
508-660 |
670 |
474 |
190 |
715 |
22”-28” |
550-715 |
719 |
519 |
190 |
762 |
24”-30” |
600-762 |
770 |
539 |
190 |
830 |
26”-32” |
660-813 |
830 |
567 |
192 |
914 |
30”-36” |
762-914 |
924 |
613 |
212 |
1066 |
36”-42” |
914-1066 |
1077 |
741 |
212 |
1230 |
42”-48” |
1066-1230 |
1248 |
777 |
212 |
1430 |
50”-56” |
1230-1430 |
1438 |
877 |
220 |
Largest stockist of cold cutting and beveling machine in Abu Dhabi, Dubai, UAE, Iraq, Saudi Arabia, Kuwait, Oman.
Cold Cutting Pneumatic Pipe Saw
Cold Cut Hacksaws for pipes up to Ø 440 mm / 16"
Compressed air hacksaw for pipes and profiled sections.
- Ideally suited for trimming pipes and shaped section made of steel, cast-iron, autoclaved aerated concrete and plastics.
- Clamp and feed device available for profiles and pipes from Ø 80 mm to Ø 400 mm.
- Adjustable clamping devices permit mitre cuts up to 45° as well.
- Clamp and feed device.
- Adjustable clamping fixtures. * With chain extension.
Largest stockist of cold cutting and beveling machine in Abu Dhabi, Dubai, UAE, Iraq, Saudi Arabia, Kuwait, Oman.

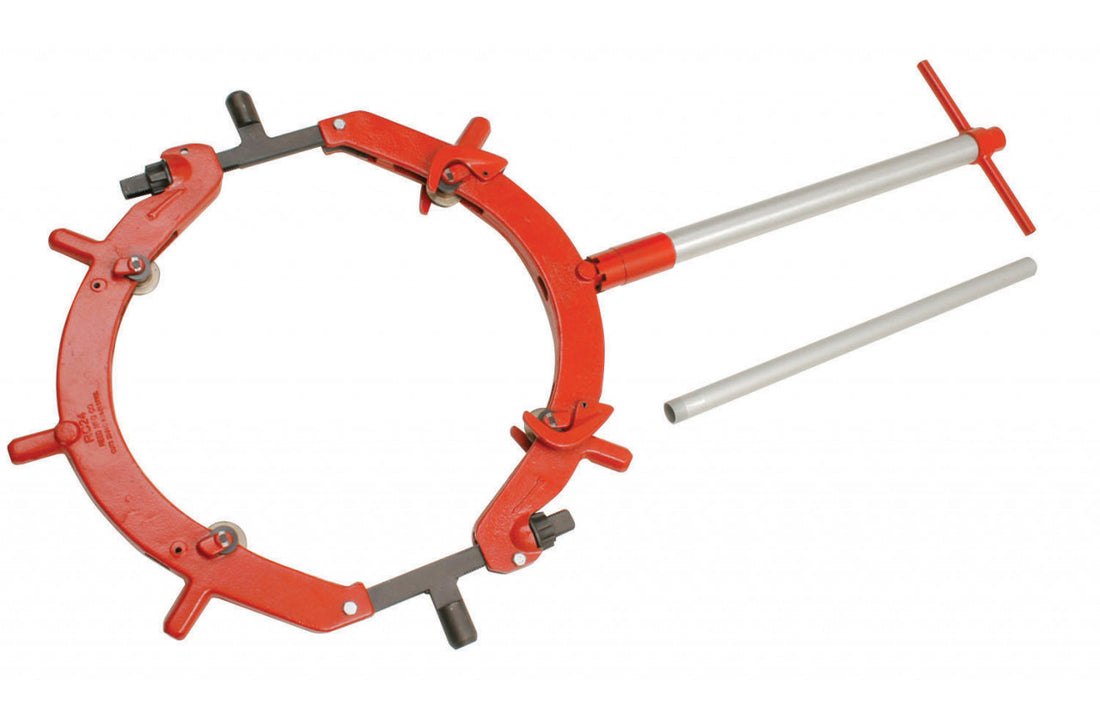

Manual Cold Rotary Pipe Cutter
Manual Cold Rotary pipe cutters are the best manual cutters for ductile iron and a great option for steel and stainless steel pipe. With good leverage from the tool’s long handle, pipe snaps off squarely before wheel penetrates halfway through pipe. Rotary pipe cutters have heavy-duty frames.
Features
Pipe snaps off squarely once the operator completes the cut.
Excellent for cold cuts.
Designed to cut large diameter pipe.
Cold cut large diameter steel, most stainless steel, ductile, and cast iron pipe
in close quarters.
Pipe sizes
18 - 42"
Largest stockist of cold cutting and beveling machine in Abu Dhabi, Dubai, UAE, Iraq, Saudi Arabia, Kuwait, Oman.
Cold Pipe Cutting Machine GBC 2700
Reciprocating saw GBC2700 in pneumatic version, simple and reliable.
Electric version available or a conversion kit to easily change pneumatic to electric.
RANGE:
1'' to 21''
FUNCTIONS:
Cutting up to 45° inclination
MATERIALS
Any kind of steel
POWER
Pneumatic/electric
GBC 2700 | GBC 2700 E | |||
Locking range | mm (ø o/d.) |
25-330
|
25-330
|
|
Idle Speed | stroke/min |
300
|
450
|
|
Torque | Nm |
140
|
143
|
|
Pneumatic motor power | Hp (W) |
1,33 (750)
|
-
|
|
Air consumption | cfm |
55-60
|
-
|
|
Air pressure | psi |
90
|
-
|
|
Air hose connection | inches |
3/4'
|
-
|
|
Electric motor power | Watt |
-
|
1400
|
|
Voltage | Volt |
-
|
110/220
|
|
Frequency (cycles) | Hz |
-
|
50
|
|
Max acoustic emission | db |
75
|
75
|
|
Machine weight | Kg |
11,0
|
9,0
|
|
Largest stockist in Abu Dhabi, Dubai, UAE, Iraq, Saudi Arabia, Kuwait, Oman.
Pipe Cutter MCA
Pipe cutter MCA in pneumatic version, easy to set up thanks to lightweight and low clearance.
Developed for on site use in pipelines, machine body is split frame type allowing set up of machine at any point along pipelines.
RANGE:
1” - 36” o.d.
FUNCTIONS:
pipe cold cutting, bevelling, facing, counterboring.
MATERIALS:
carbon steel, alloy, stainless steel, duplex.
POWER:
pneumatic, electric or hydraulic.
Largest stockist in Abu Dhabi, Dubai, UAE, Iraq, Saudi Arabia, Kuwait, Oman.
