Explosion Proof

The scope of application

    Used in hazardous work places like controlled oil field areas or ship repair yard

Products characteristic

1. CSD1 has water blowout prevention structure, phenolic plastics shell, glass lampshape and metal protective net outside. 24v / 110V / 220V explosion proof hand lamp

2. The handle materials is made of rubber with metal guard.

Specification:

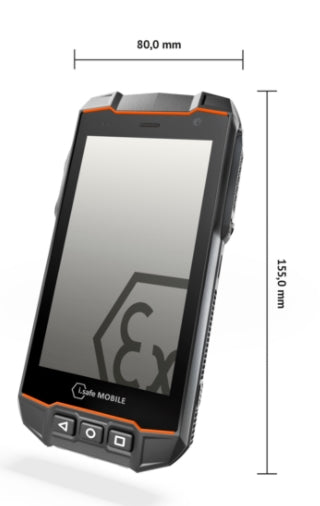

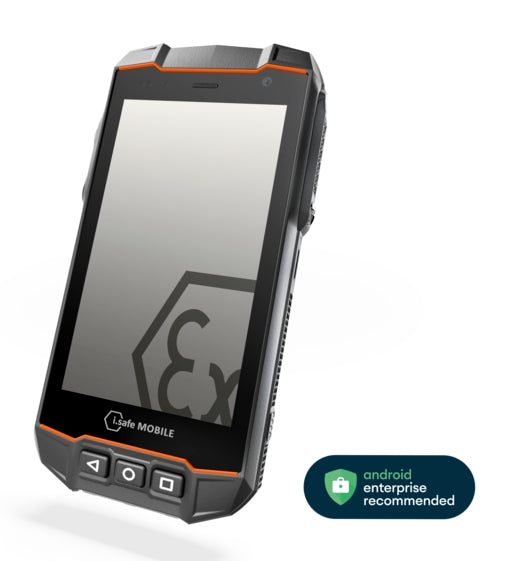

The high-performance industrial smartphone can be used in a variety of ways thanks to the ISM interface. Additional modules such as an RSM, PTT headsets or the professional IS-TH1 barcode scanner make the IS530.1 a high-performance multifunctional device. The smartphone is Android Enterprise Recommended, zero-touch capable and MDM compatible.

Multifunctional, lateral ISM interface for a quick and safe connection of additional devices

SOS key for loneworker protection
LWP ready (third party application required, based on country specific regulations)

Push-To-Talk key
PTT ready (third party application required, based on country specific approvals)

Amplified loudspeaker

Accelerometer, gyroscope, light, magnetic, proximity, pressure sensors

Dual micro-SIM

Type C USB, magnetic charger port, Desktop Charger, Multi Charger

APPROVALS

ATEX (Europe)
approved

II 2G Ex ib IIC T4 Gb
II 2D Ex ib IIIC T135°C Db IP6X

IECEx (International)
approved

Ex ib IIC T4 Gb
Ex ib IIIC T135°C Db IP6X

NEC500 (Northern America)
approved

Class I Div. 1 Groups A, B, C, D, T4
Class II Div. 1 Groups E, F, G, T135°C
Class III Div. 1

EAC (Russia)
approved

1Ex ib IIC T4 Gb X
Ex ib IIIC T135°C Db X IP64

INMETRO (Brazil)
approved

Ex ib IIC T4 Gb
Ex ib IIIC T135°C Db IP6X

KCs (South Korea)
approved

Ex ib IIC T4
Ex ib IIIC T135°C

PCEC (China)
approved

Ex ib IIC T4 Gb
Ex ibD 21 T135°C

JNIOSH (Japan)
approved

Ex ib IIC T4 Gb
Ex ib IIIC T135°C Db IP6X

SANS (South Africa)
approved

Ex ib IIC T4 Gb
Ex ib IIIC T135°C Db IP6X

CONTENTS

INCLUDED

• Smartphone
• Battery
• i.safe PROTECTOR 2.0
• i.safe PROTECTOR 3.0
• Power Adapter universal
• Screwdriver
• Display Protection Foil
• Display cleaning cloth
• Safety Instructions
• Quick Start Manual

Largest stockist of explosion proof in Abu Dhabi, Dubai, UAE, Iraq, Saudi Arabia, Kuwait, Oman.

The only ATEX Explosion Proof Blower with European certificate in the middle east

Features:

Portable full steel body and handle for easy carrying

Explosion proof motor and switch certified to ATEX European standards.

Blades are made from heavy duty Aluminum Alloy.

Inner cylinder are made from Copper to avoid sparking

Flameproof Marking: dIIBT4, come with European ATEX Explosion Proof Certificate

Sizes: 300mm/12", 110V

Model: DY‐EX‐30

Largest stockist for Explosion proof Atex Axial Fans / blowers in Abu Dhabi, Dubai, UAE, Iraq, Saudi Arabia, Kuwait, Oman.

LED Explosion Proof Intrinsically safe ATEX Floodlight 200W

The OHBF model is a intrinsically safe LED floodlight for use in Zone 2 & Zone 22 hazardous areas

0-360° Adjustable Brackets Included

CERTIFICATION:
- ATEX Zone 2 & 22
- Class I DIV 2
- Groups A B C D
- Class II DIV 2 Groups F G
- Class III DIV 2
- Ex nR IIC T5 or T6 Gc
- Ex tc IIIC T95°C or T80°C Dc IP66
- ATEX Certificate No.:TüV 15 ATEX 7672 X

Largest stockist for Explosion proof Atex certified blowers and lights in Abu Dhabi, Dubai, UAE, Iraq, Saudi Arabia, Kuwait, Oman.

The CHALLENGER 2.0 is a rugged dust and water proof industrial mobile phone. It is designed for use under extreme conditions.

• Easy handling and long battery life time offer best comfort.
• LED torch is an useful feature for tough environments.
• The phone can be used with gloves.
• Available as CHALLENGER 2.1 without a camera

ADVANTAGES

• Rugged Phone
• Long battery life time
• LED torch
• Loud ring tone and bright display
• Dust and water proof (IP68)

CERTIFCATION

• ATEX Zone 2/22
  II 3G Ex ic IIC T4 Gc IP54
  II 3D Ex

 Largest stockist in Abu Dhabi, Dubai, UAE, Iraq, Saudi Arabia, Kuwait, Oman.

6 Models Available: 24W, 36W, 50W, 60W, 72W and 80W

2,712 lumens 24W
4,212 lumens 36W
6,250 lumens 50W
7,380 lumens 60W
8,424 lumens 72W
9,120 lumens 80W

KEY FEATURES:
• AC 100-277V ~ 50/60Hz
• Low-profile, lightweight design
• High aluminium housing
• Impact resistant diffused lens
• Stainless steel bracket for ceiling mount
• Professional light distribution, uniformed illumination
• Single-ended feed-through cable or
double ended optional
• Temperature class: T1 to T6
• Standard 6-12KV surge protection
• Enclosures attached to back brackets

CERTIFICATION:
- ATEX Zone 1 & 21 and 2 & 22
- Ex II 2 G Ex emb IIC T6 Gb
- EX II 2 D Ex tb IIIC 80°C Db IP66

Largest stockist in Abu Dhabi, Dubai, UAE, Iraq, Saudi Arabia, Kuwait, Oman.

Compact ATEX Head Torch, 80 Lumens
The EX-HT80 is a compact Atex head torch. Easy twist on and off bezel switch.

KEY FEATURES:
• 80 Lumens
• 70 metre beam
• Runs up to 14 hours
• Intrinsically safe LED head torch for use in hazardous areas
• High powered LED - CREE XP-G2
• Adjustable headband to fit users head or helmet
• Aluminium heat sink enhancing LED efficiency
• Durable impact resistant, drop proof up to 1m
• Easily twist on/off bezel switch while wearing fire gloves
• Powered by 3x AAA batteries (not included)

CERTIFICATION:
- Class I DIV 1 Groups A B C D
  Class II DIV 1 Groups E F G
  Class III DIV
- ATEX: M1 Ex: la | Ma
  II 1 G Ex ia IIC T4 GA
  DEMKO 15 ATEX 1546X
- IECEx: GAS: Ex ia IIC T4 GA
  MINE: Ex: la | Ma
  IECEX UL 15.0086X

PRODUCT CODE: NSEXHT80

Largest stockist in Abu Dhabi, Dubai, UAE, Iraq, Saudi Arabia, Kuwait, Oman.

LED Explosion Proof Intrinsically safe ATEX Floodlight 100W

The OHBF model is a intrinsically safe LED floodlight for use in Zone 2 & Zone 22 hazardous areas

0-360° Adjustable Brackets Included

CERTIFICATION:
- ATEX Zone 2 & 22
- Class I DIV 2
- Groups A B C D
- Class II DIV 2 Groups F G
- Class III DIV 2
- Ex nR IIC T5 or T6 Gc
- Ex tc IIIC T95°C or T80°C Dc IP66
- ATEX Certificate No.:TüV 15 ATEX 7672 X

Largest stockist for Explosion proof Atex certified blowers and lights in Abu Dhabi, Dubai, UAE, Iraq, Saudi Arabia, Kuwait, Oman.

ATEX Flashlight, 185 Lumens
The EX-185 is an lightweight flashlight, it features a safety lock to prevent being accidentally switched on. Ideal for use in the fire & emergency services and utility companies.

KEY FEATURES:
• 185 Lumens
• 117 metre beam
• Runs up to 30 hours
• High powered LED - CREE XP-G2
• Safety locks to prevent accidentally turning on
• Aluminium heat sink enhancing Led efficiency
• On/off tail switch
• Waterproof up to 3metres (IP68)
• Durable impact resistant, drop proof up to 1m
• Easy to use, maintenance free
• Gas pressure release valve
• Ideal for Oil and Gas Industry, Mining Industry, Utility Companies
• Supplied with wrist strap

CERTIFICATION:
- ATEX: Ex II 1 G | Ex ia IIC T4 IP68
- DEMKO 13 ATEX 1205039X
- Class I DIV 1 Groups A B C D
- Class II DIV 1 Groups E F G
- Class III DIV
- IECEx: Ex ia IIC T4 GA IECEx
- UL 13.0060X

Largest stockist in Abu Dhabi, Dubai, UAE, Iraq, Saudi Arabia, Kuwait, Oman.

The EX1265R is a portable, intrinsically safe rechargeable LED floodlight for use in zones 1, 2, 21 & 22 hazardous areas. This explosion proof floodlight is both compact and easy to use, offering an impressive 10 hours run time. This floodlight comes complete with magnetic feet or stainless steel stand.

KEY FEATURES:
• 1265 Lumens, Cool White
• 10 metre beam
• Run up to 10 hours
• Rechargeable lithium battery - 6600mAh
• Intrinsically safe LED floodlights for use in hazardous areas
• Explosion proof
• High powered SEOUL LED, 10W
• Mount on stand or magnetic feet
• High strength aluminium housing
• Compact, ideal for confined spaces

Choice of Bases Magnetic Feet or Stainless Steel Stand

CERTIFICATION:
- ATEX Zone 1 & 21 and 2 & 22
- Class I DIV 1 & 2 Groups A B C D
- Class II DIV 1 Groups E F G
- Class II DIV 2 Groups F G
- Class III DIV 1
- Class III DIV 2
- Ex d IIC T6 Gb
- Ex tb IIIC T80°C Dc IP66

PRODUCT CODE:
NSEX1000R (With Stand)
NSEX1000R-MAG (Magnetic Feet)

Largest stockist in Abu Dhabi, Dubai, UAE, Iraq, Saudi Arabia, Kuwait, Oman.

The EX-160R is an intrinsically safe, explosion proof rechargeable flashlight. It is made from high strength aluminium housing with a secure grip and offers a front torch light, along with a rear flood light.

KEY FEATURES:
• 157 Lumens
• 200 metre beam
• Runtime 18.5 hours
• Rechargeable lithium battery - 2.2Ah
• High powered OSRAM LED
• High strength aluminium housing
• Durable impact resistant, drop proof up to 1m
• Gas pressure release valve
• Supplied with wrist strap

CERTIFICATION:
- ATEX Zone 1 & 21 and 2 & 22
- Class I DIV 1 & 2 Groups A B C D
- Class II DIV 1 Groups E F G
- Class II DIV 2 Groups F G
- Class III DIV 1
- Class III DIV 2
- Ex ib IIC T4 Gb
- Ex tb IIIC T130°C Db IP68

Model: EX160R

Largest stockist in Abu Dhabi, Dubai, UAE, Iraq, Saudi Arabia, Kuwait, Oman.

The EX-125 is an 3-C cell high capacity flashlight, giving a runtime of over 80 hours. It features a has a very handy removable clip allowing you to easily attach to overalls, jackets and clip boards.

KEY FEATURES:
• Powerful 125 Lumens
• 144 metre beam
• Runs up to 80 hours
• High powered LED - CREE XB- H T4
• Removable clip
• On/off tail switch
• Aluminium heat sink enhancing LED efficiency
• Durable impact resistant, drop proof up to 1m
• Gas pressure release valve
• Supplied with 3x C-Cell batteries

CERTIFICATION:
- Class I DIV 1 Groups A B C D
Class II DIV 1 Groups E F G
Class III DIV
- ATEX: Ex: II 1 G
Ex ia IIC T4
DEMKO 13 ATEX 1112940X
- IECEx: Ex ia IIC T4 Ga

Largest stockist in Abu Dhabi, Dubai, UAE, Iraq, Saudi Arabia, Kuwait, Oman.
