I.safe Explosion Proof Mobile IS530.1
I.safe Explosion Proof Mobile IS530.1
I.safe Explosion Proof Mobile IS530.1
I.safe Explosion Proof Mobile IS530.1

I.safe Explosion Proof Mobile IS530.1

PLEASE CONTACT US IF YOU ARE INTERESTED IN THIS PRODUCT

The high-performance industrial smartphone can be used in a variety of ways thanks to the ISM interface. Additional modules such as an RSM, PTT headsets or the professional IS-TH1 barcode scanner make the IS530.1 a high-performance multifunctional device. The smartphone is Android Enterprise Recommended, zero-touch capable and MDM compatible.

ADVANTAGES

  • Universal, 13-pin ISM (multifunctional) interface for connecting additional devices for a wide range of applications
  • Android Enterprise Recommended
  • Zero-touch capable
  • MDM compatible

TECHNICAL FEATURES

Operating system Android™ 10
Processor Qualcomm Snapdragon SDM660 Octa Core
Memory 4 GB RAM
64 GB internal memory
microSD to 128 GB
Frequencies 2G GSM 850/900/1800/1900 MHz
3G WCDMA B1/2/4/5/8
4G LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12 MFBI/B13/B14/B17/B20/B25/B26/B28A/B28B/B29/B30/B66
4G LTE-TDD: B38/B39/B40/B41
4G LTE-TD: B34/B38

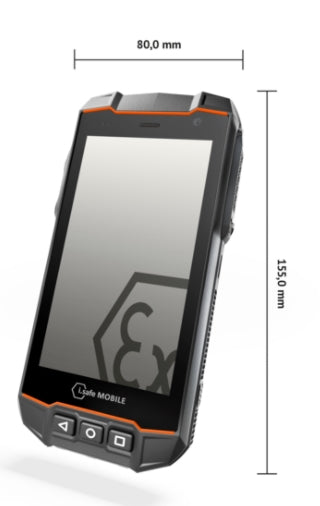

Dimensions Size: 155 x 80 x 25 mm
Weight: 325 g
Display 4,5" (11,43 cm) Gorilla Glass V3
usable with gloves
Battery 3600 mAh, 3,8 V
replaceable
Camera 13 MP AF rear
5 MP FF front
Connectivity WiFi 2.4 GHz + WiFi 5.0 GHz: IEEE 802.11 a/b/g/n/ac/e/k/r/h with hotspot
Bluetooth® 5
GPS, A-GPS, Glonass, Beidou, Galileo
Near Field Communication
Types of protection IP68 dust-/waterproof
MIL-STD 810G
Usable from -20 °C to 60 °C





FURTHER FEATURES

Multifunctional ISM interface
Multifunctional, lateral ISM interface for a quick and safe connection of additional devices
TASTE_SOS_ROT
SOS key for loneworker protection
LWP ready (third party application required, based on country specific regulations)
TASTE_PTT
Push-To-Talk key
PTT ready (third party application required, based on country specific approvals)
VERSTAERKTER_LAUTSPRECHER
Amplified loudspeaker
Sensors
Accelerometer, gyroscope, light, magnetic, proximity, pressure sensors
SIM cart
Dual micro-SIM
LADEOPTIONENGEN
Type C USB, magnetic charger port, Desktop Charger, Multi Charger

APPROVALS

ATEX (Europe)
ATEX (Europe)
approved
II 2G Ex ib IIC T4 Gb
II 2D Ex ib IIIC T135°C Db IP6X
IECEx (International)
IECEx (International)
approved
Ex ib IIC T4 Gb
Ex ib IIIC T135°C Db IP6X
NEC500 (Northern America)
NEC500 (Northern America)
approved
Class I Div. 1 Groups A, B, C, D, T4
Class II Div. 1 Groups E, F, G, T135°C
Class III Div. 1
EAC (Russia)
EAC (Russia)
approved
1Ex ib IIC T4 Gb X
Ex ib IIIC T135°C Db X IP64
INMETRO (Brazil)
INMETRO (Brazil)
approved
Ex ib IIC T4 Gb
Ex ib IIIC T135°C Db IP6X
KCs (South Korea)
KCs (South Korea)
approved
Ex ib IIC T4
Ex ib IIIC T135°C
PCEC (China)
PCEC (China)
approved
Ex ib IIC T4 Gb
Ex ibD 21 T135°C
JNIOSH (Japan)
JNIOSH (Japan)
approved
Ex ib IIC T4 Gb
Ex ib IIIC T135°C Db IP6X
SANS (South Africa)
SANS (South Africa)
approved
Ex ib IIC T4 Gb
Ex ib IIIC T135°C Db IP6X

CONTENTS

INCLUDED
  • Smartphone
  • Battery
  • i.safe PROTECTOR 2.0
  • i.safe PROTECTOR 3.0
  • Power Adapter universal
  • Screwdriver
  • Display Protection Foil
  • Display cleaning cloth
  • Safety Instructions
  • Quick Start Manual
Largest stockist of explosion proof in Abu Dhabi, Dubai, UAE, Iraq, Saudi Arabia, Kuwait, Oman.
