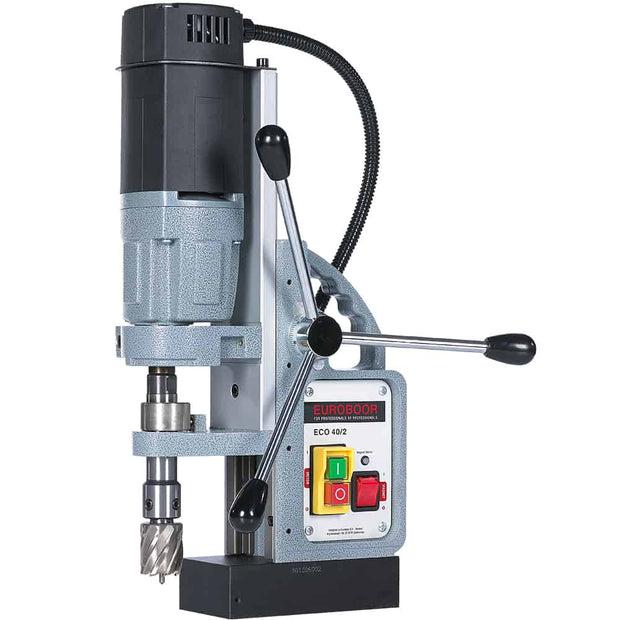

Euroboor Magnetic Drilling Machine ECO.40/2
Euroboor Magnetic Drilling Machine ECO.40/2
Euroboor Magnetic Drilling Machine ECO.40/2
Euroboor Magnetic Drilling Machine ECO.40/2
Euroboor Magnetic Drilling Machine ECO.40/2
Euroboor Magnetic Drilling Machine ECO.40/2

Euroboor Magnetic Drilling Machine ECO.40/2

PLEASE CONTACT US IF YOU ARE INTERESTED IN THIS PRODUCT

Specially designed for twist drilling

  • Particularly suitable for twist drilling

  • Detachable spindle drive and integrated tool cooling and lubrication

  • Integrated slide and two-speed gearbox for:
    • High accuracy
    • Enlarged lifecycle
    • Minimal vibration

  • High precision height adjustment for
    • Low maintenance
    • Minimal wear correction

• Strong dual coil CNC machined magnet

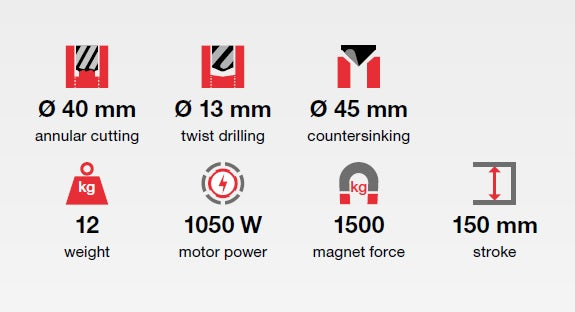

Technical data
Annular cutting Ø 12 - 40 mm
Twist drilling Ø 1 - 13 mm
Countersinking Ø 10 - 45 mm
Length 320 mm
Width 210 mm
Height 395 - 540 mm
Stroke 150 mm
Weight 12 kg
Magnet (l x w x h) 160 x 80 x 42 mm
Magnetic force 1500 kg
Motor power 1050 W
Total power 1100 W
Speed (no load) (I) 720 rpm
(II) 1300 rpm
Speed (load 1050 W) (I) 315 rpm
(II) 560 rpm
Spindle (Weldon) 19,05 mm
Voltage 110 - 120 V / 60 Hz

220 - 240 V / 50 - 60 Hz
