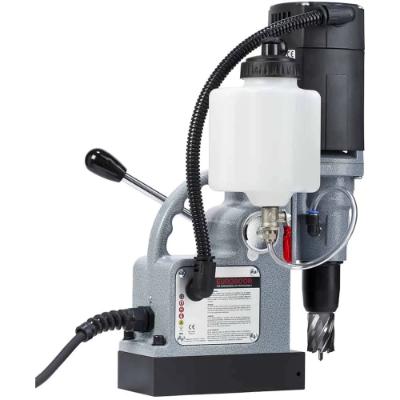

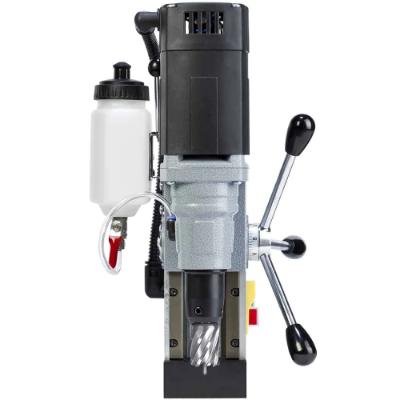

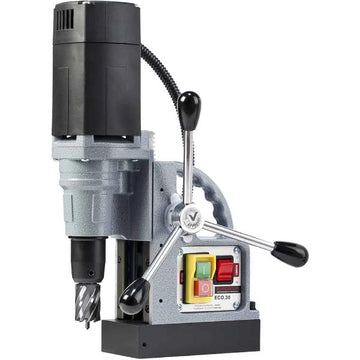

Magnetic Drilling Machine ECO.30
Magnetic Drilling Machine ECO.30
Magnetic Drilling Machine ECO.30
Magnetic Drilling Machine ECO.30
Magnetic Drilling Machine ECO.30

Magnetic Drilling Machine ECO.30


Please contact us if you are interested in this product.


  • Lightest corded Ø 30 mm Magnetic Drilling Machine:
    • Most compact in class
    • Incredibly easy to handle

  • Direct spindle drive and integrated tool cooling and lubrication

  • Integrated slide and one-speed gearbox for:
    • High accuracy
    • Enlarged lifecycle
    • Minimal vibration

  • High precision height adjustment for:
    • Low maintenance
    • Minimal wear correction
    • Strong dual coil CNC machined magnet



Technical data

Annular cutting Ø 12 - 30 mm
Twist drilling Ø 1 - 13 mm
Countersinking Ø 10 - 35 mm
Length 275 mm
Width 190 mm
Height 293 - 383 mm
Stroke 90 mm
Weight 8,5 kg
Magnet (l x w x h) 160 x 80 x 37 mm
Magnetic force 1200 kg
Motor power 900 W
Total power 950 W
Speed (no load) 775 rpm
Speed (load 900 W) 400 rpm
Spindle (Weldon) 19,05 mm
Voltage 110 - 120 V / 60 Hz

220 - 240 V / 50 - 60 Hz
