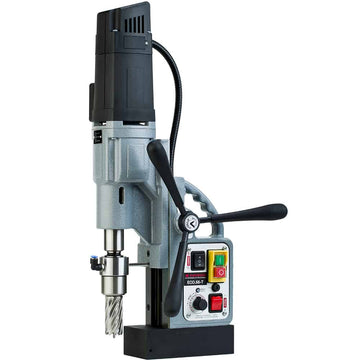

Magnetic Drilling Machine ECO.55-T
Magnetic Drilling Machine ECO.55-T
Magnetic Drilling Machine ECO.55-T
Magnetic Drilling Machine ECO.55-T
Magnetic Drilling Machine ECO.55-T

Magnetic Drilling Machine ECO.55-T


Please contact us if you are interested in this product.


  • Digital display showing ideal power usage

  • Smart Restart technology

  • Particularly suitable for threading

  • Right/left functionality and electronic speed adjustment

  • Easily accessible auto shut-off carbon brushes

  • High accuracy capstan hub

  • Morse Taper 3 spindle with integrated tool cooling and lubrication

  • Integrated slide and two-speed oil lubricated gearbox for:
    • High accuracy
    • Enlarged lifecycle
    • Minimal vibration

  • High precision height adjustment for:
    • Low maintenance
    • Minimal wear correction

  • Strong dual coil CNC machined magnet
Technical data
Annular cutting Ø 12 - 55 mm
Twist drilling Ø 1 - 23 mm
Countersinking Ø 10 - 60 mm
Threading M3 - M20
Length 320 mm
Width 200 mm
Height 490 - 660 mm
Stroke 170 mm
Weight 13,75 kg
Magnet (l x w x h) 168 x 84 x 49 mm
Magnetic force 1850 kg
Motor power 1600 W
Total power 1700 W
Speed (no load) (I) 60 - 275 rpm
  (II) 100 - 500 rpm
Speed (load 1600 W) (I) 60 - 275 rpm
  (II) 100 - 500 rpm
Spindle (Weldon) MT3 19,05 mm
Voltage 110 - 120 V / 60 Hz
  220 - 240 V / 50 - 60 Hz
