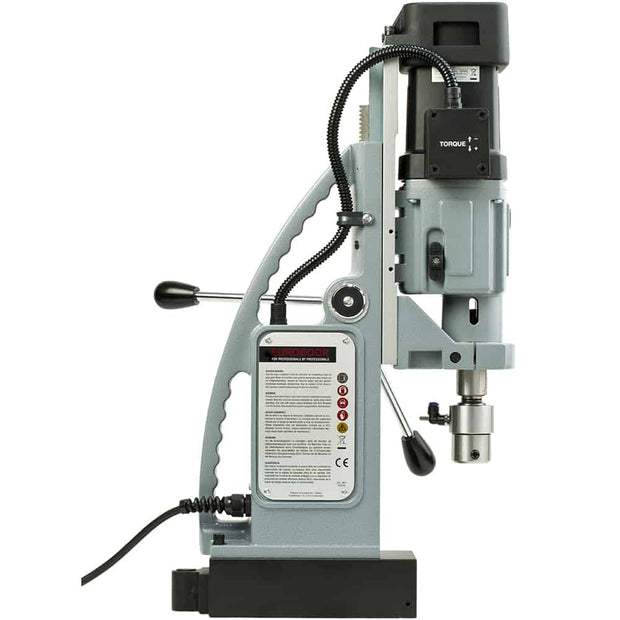

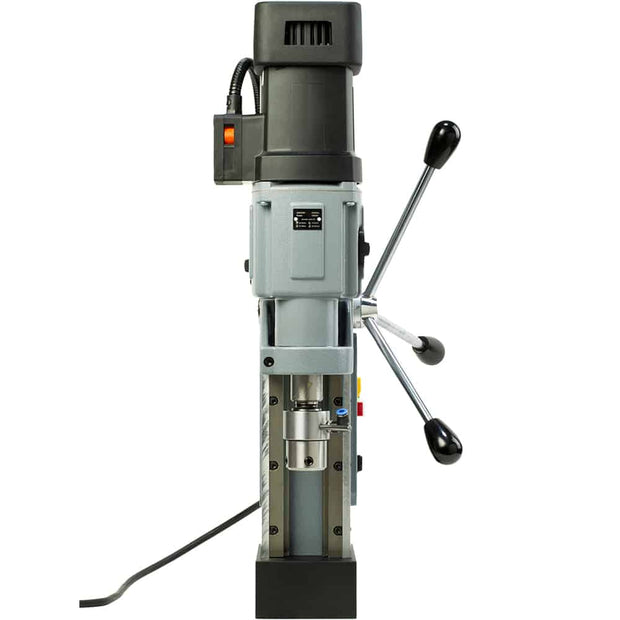

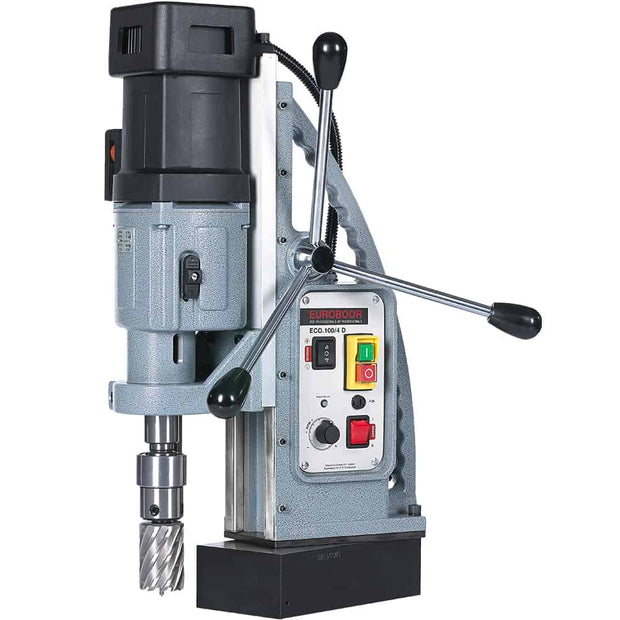

Magnetic Drilling Machine ECO.100/4(D)
Magnetic Drilling Machine ECO.100/4(D)
Magnetic Drilling Machine ECO.100/4(D)
Magnetic Drilling Machine ECO.100/4(D)

Magnetic Drilling Machine ECO.100/4(D)


Please contact us if you are interested in this product.


  • Four-speed gearbox

  • Particularly suitable for threading

  • Right/left functionality and electronic speed adjustment
  • Torque control on motor house

  • Heat protection

  • Morse Taper 3 spindle with integrated tool cooling and lubrication
  • Strong dual coil CNC machined magnet

ECO.100/4 D

  • Precise positioning swivel base

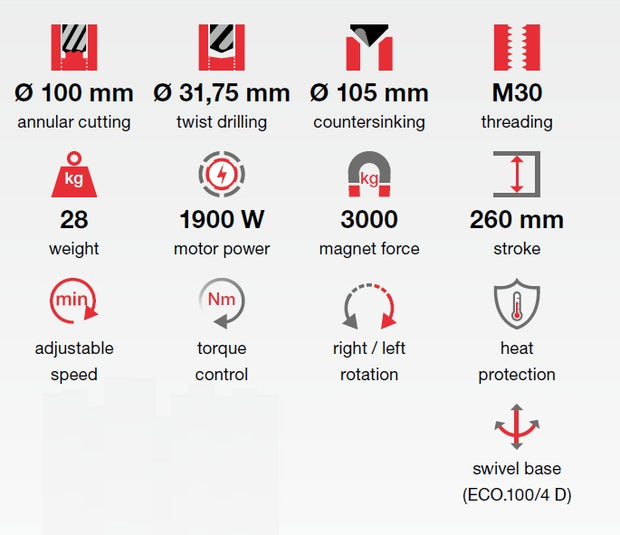

Technical data
Annular cutting Ø 12 - 100 mm
Twist drilling Ø 1 - 31,75 mm
Countersinking Ø 10 - 105 mm
Threading M3 - M30
Length 365 mm
Width 310 mm
Height 515 - 715 mm
Stroke 260 mm
Weight 28 kg
Magnet (l x w x h) 220 x 110 x 64 mm
Magnetic force 3000 kg
Motor Power 1900 W
Total power 2050 W
Speed (no load) (I) 42 - 110 rpm
  (II) 65 - 190 rpm
  (III) 140 - 400 rpm
  (IV) 220 - 620 rpm
Speed (load 1900 W) (I) 85 rpm
  (II) 152 rpm
  (III) 270 rpm
  (IV) 480 rpm
Spindle (Weldon) MT3 19,05 mm
Voltage 110 - 120 V / 60 Hz
  220 - 240 V / 50 - 60 Hz
