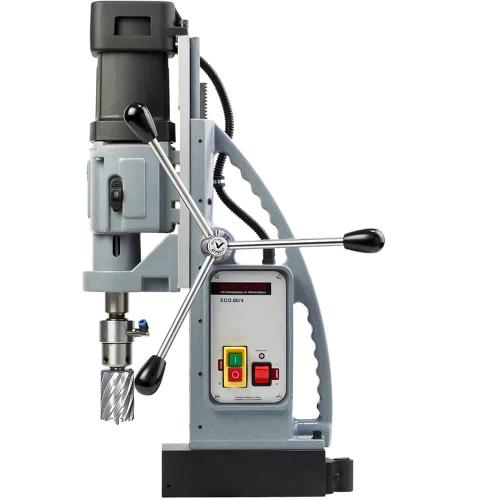

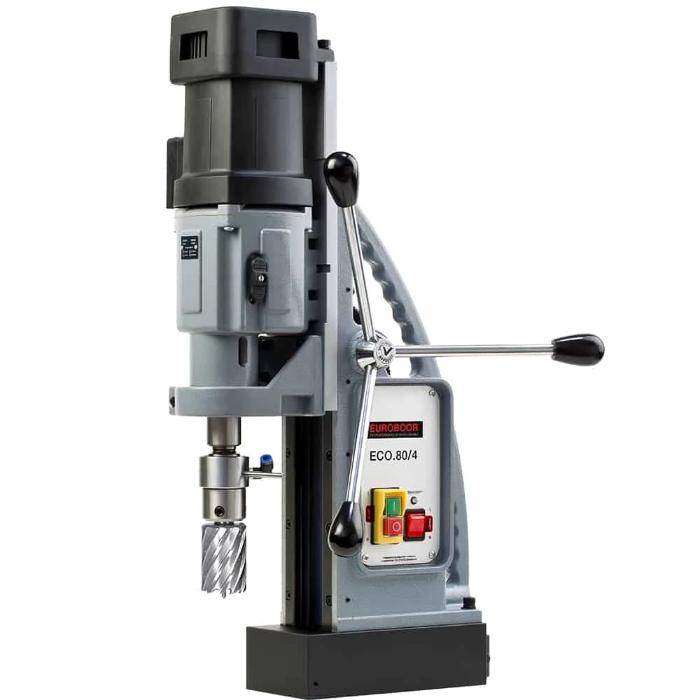

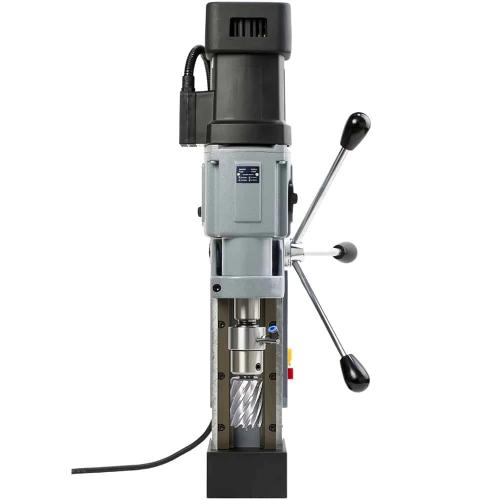

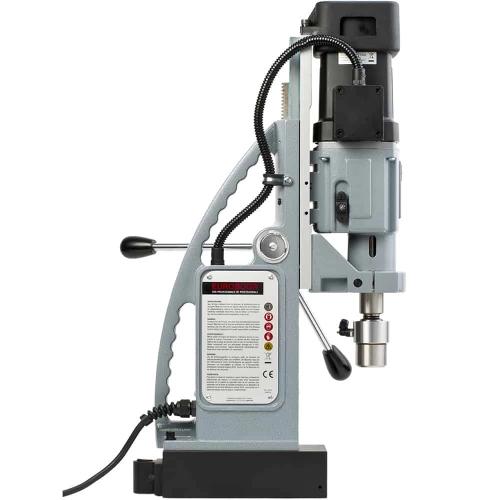

Magnetic Drilling Machine ECO.80/4
Magnetic Drilling Machine ECO.80/4
Magnetic Drilling Machine ECO.80/4
Magnetic Drilling Machine ECO.80/4
Magnetic Drilling Machine ECO.80/4

Magnetic Drilling Machine ECO.80/4


Please contact us if you are interested in this product.


  • Four-speed gearbox

  • Morse Taper 3 spindle with integrated tool cooling and lubrication
  • Strong dual coil CNC machined magnet

    Technical data
    Annular cutting Ø 12 - 60 mm
    Twist drilling Ø 1 - 23 mm
    Countersinking Ø 10 - 65 mm
    Length 320 mm
    Width 200 mm
    Height 452 - 622 mm
    Stroke 170 mm
    Weight 13 kg
    Magnet (l x w x h) 168 x 84 x 49 mm
    Magnetic force 1850 kg
    Motor power 1600 W
    Total power 1700 W
    Speed (no load) (I) 60 - 275 rpm
      (II) 100 - 500 rpm
    Speed (load 1600 W) (I) 60 - 275 rpm
      (II) 100 - 500 rpm
    Spindle (Weldon) MT 3 19,05 mm
    Voltage 110 - 120 V / 60 Hz
      220 - 240 V / 50 - 60 Hz
