SIGNAL GENERATOR SGV
The Classic SGV Signal Generator is designed for use alongside a Classic Cable Avoidance Tool. Using the combination of a Signal Generator with a Cable Avoidance Tool makes the task of cable avoidance far more effective.
The C.Scope SGA will optimise the performance of the Cable Avoidance Tool enabling operators to locate more buried utilities including street lighting cables.
INCREASED EFFECTIVENESS, LESS CABLE STRIKES
The Classic SGV Signal Generator is designed for use alongside a Classic Cable Avoidance Tool. A C.Scope SGV Signal Generator is a vital accompaniment to a C.Scope Cable Avoidance Tool and significantly increases the number of buried services that can be detected and reduce the day-to-day risk of cable strikes.
The 33kHz SGA Signal Generator can energise a buried metal pipe or cable either by 'direct connection'to the target pipe or cable or the simpler 'induction method from above ground.
The SGV has a class leading One watt Power output which helps to get a detectable signal onto deeper and less conducting pipes and cables for complex locate tasks and provides longer distance tracing capability. It also features aFOUR position power level adjustment so the operator has total control of how much power is in use and when.
The SGV Signal Generator has a multi-segment Liquid Crystal Display that provides clear information about the functions selected. The display also shows the all important battery condition so the operator knows how much battery life is available.
A Pulsed or Continuous signal output allows operators to switch to the Pulsed Mode at the push of a button in high interference situations and keep on tracing. The SGV has a clear audible signal output to indicate when it is in operation. A useful in-built audio mute control is also included.
TRAINING
C.Scope provide a comprehensive training course including certification for the use of all our products.
Please contact us or download the brochure if you would like to know more about the SGV.
Product Name
SGV Signal Generator Black
Part No.
CSSGV-33
Output Power
Switchable through four levels up to a maximum of One Watt.
Product Dimensions
360 x 180 x 230mm
Weight
2.0kg unit only.
3.4kg incl. accessories.
Batteries
4 x D (LR20) alkaline batteries typically giving up to 40 hours intermittent use at 20C.
Compatible with NiMH rechargeable batteries.
Largest stockist in Abu Dhabi, Dubai, UAE, Iraq, Saudi Arabia, Kuwait, Oman.
SIGNAL GENERATOR SGA
The new C.Scope MXT2 Transmitter is the ideal partner for the MXL2 Locator. The range of operating frequencies and adjustable power output is designed to make the MXL2 and MXT2 an extremely versatile combination for pipe and cable location that can tackle many varied locating tasks.
The MXT2 Transmitter from C.Scope has been designed to set a new performance benchmark. It is loaded with new features to help detect, trace and identify specific buried pipes and cables more effectively, reliably and accurately even in areas of high service density.
IMPROVED PERFORMANCE & MULTI FREQUENCY
The C.Scope MXT2 Transmitterr is designed for use alongside an MXL2 Pipe and Cable Locator. It enables significantly more underground utilities to be detected, identified and traced.
The MXT2 Transmitter offers a choice of frequencies to suit any job. Use the simultaneous 33+13kHz signal detectionfor general utility applications and detecting smaller buried pipes and cables such as telecoms, sheathed fibre optics and street lighting spurs, 8kHz traces deeper and over longer distances and the ultra low frequency 512/640Hz signal is invaluable for specialist tracing.
The MXT2 has a powerful One watt Power output which helps to get a detectable signal onto deeper and less conducting pipes and cables for complex locate tasks and provides longer distance tracing capability. It also features aFOUR position power level adjustment so the operator has total control of how much power is in use and when.
The MXT2 Transmitter has a multi-segment Liquid Crystal Display that provides clear information about the functions selected. The display also shows the all important battery condition so the operator knows how much battery life is available.
A Pulsed or Continuous signal output allows operators to switch to the Pulsed Mode at the push of a button in high interference situations and keep on tracing. The SGV2 has a clear audible signal output to indicate when it is in operation. A useful in-built audio mute control is also included.
Using the MXT2 Trasmitter with the MXL2 Locator maximises the full performance capabilities of the new products resulting in the ability to detect, identify and trace significantly more buried services.
TRAINING
C.Scope provide a comprehensive training course including certification for the use of all our products.
Please contact us or download the brochure if you would like to know more about the MXT2.
Product Name
SGA Signal Generator Black
Part No.
CSSGA-33
Output Power
High/Low toggle up to 1 Watt.
Product Dimensions
360 x 180 x 230mm
Weight
2.0Kg unit only.
3.4Kg incl. accessories.
Batteries
4 x D (LR20) alkaline batteries typically giving up to 40 hours intermittent use at 20C.
Compatible with NiMH rechargeable batteries.
IP Rating
IP65
Transmitter Features
|
MXT2
|
---|---|
One Watt Power
|
4 LEVEL
|
- 33+131kHz
|
• |
- 8kHz
|
• |
- 512 / 640Hz
|
• |
Pulsed/Continuous Output Signal
|
• |
Signal Connection Modes
|
|
- Direct Connection
|
• |
- Induction
|
• |
- Wraparound
|
• |
Display (LCD)
|
• |
Accessory Tray*
|
• |
Three Year Warranty**
|
• |
Batteries****
|
4 x D (LR20)
|
IP65
|
• |
* Accessory Tray includes Direct Connection Lead, Auxiliary 10m Earth Lead, Connection Magnets and Earth Stake.
*** Batteries. The MXT2 use 4 x D LR20 Alkaline or NiMh Rechargeable batteries.
Largest stockist in Abu Dhabi, Dubai, UAE, Iraq, Saudi Arabia, Kuwait, Oman.

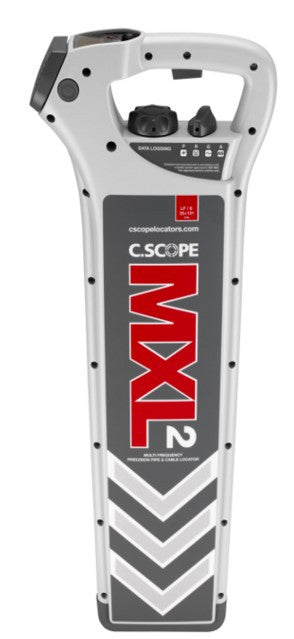

Pipe and Cable Locator
As the underground network of pipes and cables becomes ever more complex and congested, operators need a more sophisticated pipe and cable locator to precisely identify and trace in amongst a range of utilities. The C.Scope MXL2 Locator is the answer.
The MXL2 is a precision Pipe and Cable Locator that will accurately locate, identify and trace specific underground pipes and cables. The use of additional signal detection frequencies and innovative new features hugely improves the resolution and accuracy of identification and tracing.
The C.Scope MXL2 Locator should be used alongside the high power multi frequency MXT2 Transmitter.
Product name
MXL2 Locator
Part No.
MXL2 Locator - ZXMXL2
MXL2 Locator with Data Logging - ZXMXL2-DL
Product Dimensions
720mm x 280mm x 65mm
Weight
2.6kg incl. batteries.
2.4kg excl. batteries.
Batteries
Internal 8 x AA (LR6) cells alkaline batteries typically giving up to 40 hours intermittent use at 20°C.
Compatible with NiMH rechargeable batteries.
Temperature Range
-20°C to +50°C
IP Rating
IP65
Approvals
CE
Locator Features
|
MXL2
|
MXL2-DL
|
---|---|---|
Power Mode
|
• | • |
Radio Mode
|
• | • |
Transmitter Mode
|
• | • |
- 33+131kHz
|
• | • |
- 8kHz
|
• | • |
- 512 / 640Hz
|
• | • |
ALL SCAN Mode
|
• | • |
Depth
|
• | • |
Signal Current Measurement
|
• | • |
Automatic Noise Rejection
|
• | • |
Dynamic Swing Sensor
|
• | • |
Automatic Daily Self Test (ADST)*
|
• | • |
Data Logging
|
-
|
• |
Data Transfer via USB
|
-
|
• |
Display (LCD)
|
• | • |
Three Year Warranty**
|
• | • |
Batteries***
|
8 x AA (LR6)
|
8 x AA (LR6)
|
IP65
|
• | • |
* ADST. | C.Scope's new MXL2 performs an Automatic Daily Self Test (ADST). If attention is required the ADST will alert the user to please contact an authorised C.Scope Service centre for assistance. |
*** Batteries. | The MXL2 uses 8 x AA LR6 Alkaline or NiMhCad or Rechargeable batteries sealed in a secure fitted battery compartment. The battery pack will typically provide approximately 40 hours of use. The battery compartment also houses a spare battery holder. |
Mode/feature
|
Frequency
|
Sensitivity @ 1m Depth
|
Detection Depth
|
---|---|---|---|
Power
|
50 - 400Hz
|
5mA
|
Up to 3m
|
Radio
|
10kHz - 30kHz
|
25µA |
Up to 2m
|
Transmitter
|
33kHz + 131kHz
|
5µA |
Up to 5m
|
8kHz
|
100µA
|
Up to 5m
|
|
512Hz / 640Hz
|
500µA
|
Up to 5m
|
|
All Scan
|
50Hz - 33kHz
|
100µA
|
Up to 3m
|
Sonde
|
33kHz
|
-
|
Up to 7m
|
8kHz
|
-
|
Up to 7m
|
|
512Hz / 640 Hz
|
-
|
Up to 7m
|

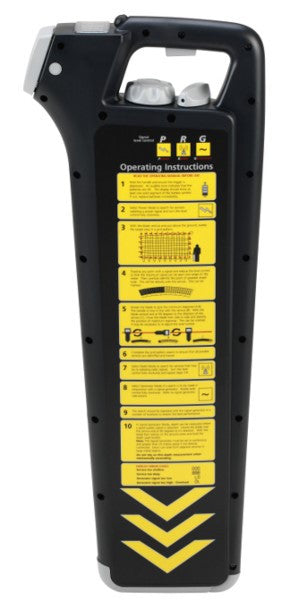

Pipe and Cable Locator
SAFE, SIMPLE, QUICK AND RELIABLE
The C.Scope Cable Avoidance / Locator Tool has three familiar detection modes (POWER, RADIO AND GENERATOR) to select from. Each mode provides its own specific advantages. Many operators will be familiar with these operating modes.
The POWER mode is the quickest way to detect most buried electricity cables by detecting the signal created by the electrical current itself.
The RADIO mode detects re-radiated Radio type signals that are often present on metal pipes and cables allowing their position to be determined using just the Cable Avoidance Tool alone.
The GENERATOR mode is used to detect the signal applied to a metal pipe or cable by a C.Scope SGA or SGV Signal Generator. In addition the Generator mode can be used to detect the signal being transmitted by a C.Scope Sonde for non-metallic pipe tracing.
When combined with a C.Scope SGA or SGV Signal Generator and accessories, the Cable Avoidance Tool becomes a versatile, all round pipe and cable locating and tracing package. Robustly made and equipped with LCD meter, detachable loudspeaker and easy-to-operate fingertip controls the C.Scope Cable Avoidance Tool is the ideal Locator for all levels of staff who need to be able to detect buried services quickly and with confidence.
Controls
On/off control. Press for ‘on’, release for ‘off’. Battery check tone at switch on.
3 position function select switch:
– P – Power Mode for detecting live imbalanced cables.
– R – Radio Mode for detecting re-radiated radio signals.
– G – Generator Mode for detecting conductors carrying the signal generated by the C.Scope Signal Generator or from the Sonde Transmitter.
Sensitivity Control.
Push button to activate depth measurement.
Display
Large, easy to read liquid crystal display. Shock resistant, mounted behind polycarbonate lens for maximum protection.
The display indicates: Signal strength, Battery condition, Confirmation of selected mode, Depth in G mode.
Frequency
P – 50-400 Hz R – 15-20 kHz G – 33 kHz
Depth of detection
Live mode up to 3m, Sonde mode up to 6m
Shallow depth indication – less than 0.25m
Batteries
8 x AA (IEC type LR6), Typical life (guide) – 40 hours.
Weight
3.0 kgs (including batteries), Moisture/dust resistant to IP65.
