Cutting & Beveling

The IK-12 Beetle is an affordable, portable, oxy-fuel cutting machine. It is known around the world as one of the best portable cutting machines in the industry. This portable single torch gas cutting machine has a solid aluminum body and can perform straight line cutting, circle cutting, and bevel cutting.

IK-12 Beetle Features & Benefits

Multiple Use Oxy-Fuel Machine

Performs high quality straight, circle and bevel cuts; includes 1 torch and 3 tips.

Stepless Drive System

Maintains constant travel speed even with high temperatures ensuring stable, trouble-free cutting

Light Weight - 9.5 kgs (20.9 lbs)

Easy to carry and use yet rugged enough to be a true workhorse

Use on Radiagraph Track

Possible replacement for discontinued Radiagraph; user can use existing track

Extendable 72in (1800mm) Track Sections

Cut longer parts

High Quality Oxy-Fuel Cutting Tips

Koike's superior design Series 100 torch tips are included to ensure fast, smooth cuts

Optional Snap Valve

One-touch on/off gas valve

CG1-30 Straight line track guide flame gas cutter oxy-fuel cutting machine
IK-12 Beetle
Portable Track Guided Cutting

 Largest stockist in Abu Dhabi, Dubai, UAE, Iraq, Saudi Arabia, Kuwait, Oman and Africa

This manually operated portable oxy-fuel pipe cutting machine uses a chain and gear drive system. The drive chain is comprised of durable, interlocking links that can easily be added or removed for quick change of pipe diameters. A graduated bevel collar ensures accurate bevel setting. The control valves for fuel, preheat oxygen and cutting oxygen are positioned away from heat yet conveniently placed for easy operator use.

Picle-1-II Features & Benefits

Oxy Fuel Pipe Cutter
Bevel cut or straight cut steel pipe.
Manually Operated
No power/electricity needed to cut pipe, ideal for field use.
Interlocking, Unique Chain System
Add or remove links as needed for various size pipes; 114-600mm (4-24in) diameters possible with standard chain.

Picle-1-II - Koike
E-Z Pipecut Manual - Mathey Dearman
CG2-11G PIPE CUTTING - Huawei Cutting
Oxy-Fuel Pipe Cutting & Pipe Beveling Machine
CG2-11G Hand Pipe cutter Picle cutting machine.

Largest stockist in Abu Dhabi, Dubai, UAE, Iraq, Saudi Arabia, Kuwait, Oman and Africa

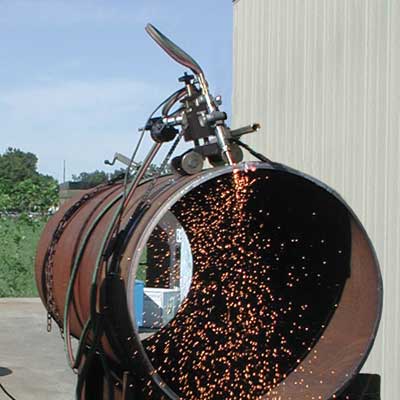

Most popular of all chain machines, the lightweight Mini Chain Machine is recommended for cutting random lots of small or larger diameters of pipe. Easily adjustable from one pipe size to another, the Mini follows the pipe outside diameter to produce a consistent bevel. The Mini Chain Machine’s compact and unique design delivers exceptional performance and consistent results, while reducing down time and maintenance costs. Cuts pipe diameters from 2" (51mm) to unlimited sizes.

FEATURES:

• BEST CHOICE for a small shop or maintenance facility.
• DURABLE and RUGGED enough to withstand the rigor of construction.
• VIRTUALLY ELIMINATES the need for more than one machine regardless of pipe diameters.
• ACCURACYof the Mini Chain Machine is attained through its four wheel positioning, double cottered roller chain, and (for over 18" pipe) with the optional guide tracks.
• Vertical pipe or vessels 18" (457mm) and larger can be accurately cut when used with the guide strips.
• The rack adjustable torch support allows the torch to pierce the pipe away from the cut line, and then move to the cut line, reducing notching of the weld bevel.
• Up to 50% FASTER than hand cutting and grinding.

Mini Jolli Machine Kit includes:

• Base machine
• Torch arm
• Service keys
• Sliding support
• Hose support
• Torch holder
• Service keys
• Parts and operating manual

Most popular of all chain machines, the lightweight Mini Chain Machine is recommended for cutting random lots of small or larger diameters of pipe. The addition of a Plasma Speed motor controller and a 115 VAC or 230 VAC motor makes our Chain Machine even more versatile. Easily adjustable from one pipe size to another, the Mini follows the pipe outside diameter to produce a consistent bevel. The Mini Chain Machine’s compact and unique design delivers exceptional performance and consistent results, while reducing down time and maintenance costs. Cuts pipe diameters from 2" (51mm) to unlimited sizes.

FEATURES:

• BEST CHOICE for a small shop or maintenance facility.
• DURABLE and RUGGED enough to withstand the rigor of construction.
• VIRTUALLY ELIMINATES the need for more than one machine regardless of pipe diameters.
• ACCURACYof the Mini Chain Machine is attained through its four wheel positioning, double cottered roller chain, and (for over 18" pipe) with the optional guide tracks.

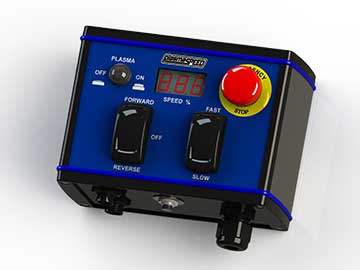

• The Plasma Speed digital motor control gives a consistent cutting speed both up hill and down.
• Vertical pipe or vessels 18" (457mm) and larger can be accurately cut when used with the guide strips.
• The rack adjustable torch support allows the torch to pierce the pipe away from the cut line, and then move to the cut line, reducing notching of the weld bevel.
• Up to 50% FASTER than hand cutting and grinding.

Mini Jolli Machine Kit includes:

• Base machine
• Plasma Speed Digital Controller
• Torch arm
• Service keys
• Sliding support
• Hose support
• Torch holder
• Service keys
• Parts and operating manual
