Magnetic Drilling Machines

Euroboor Magnetic Drilling Machine ECO.200

Euroboor Magnetic Drilling Machine ECO.200

PLEASE CONTACT US IF YOU ARE INTERESTED IN THIS PRODUCT

Two-speed gearbox
Integrated tool cooling and lubrication tank and fluid level indication

Integrated safety strap and lifting shackle
High precision tubular rail balancer system
Progressive feed assist
Morse Taper 4 spindle
Strong triple coil CNC machined magnet

Technical data
Annular cutting	Ø 12 - 200 mm
Twist drilling	Ø 1 - 44 mm
Countersinking	Ø 10 - 205 mm
Length	480 mm
Width	260 mm
Height	660 - 840 mm
Stroke	180 mm
Weight	53 kg
Magnet (l x w x h)	330 x 110 x 63 mm
Magnetic force	3900 kg
Motor power	3600 W
Total power	3800 W
Speed (no load)	(I) 70 - 150 rpm
	(II) 170 - 410 rpm
Speed (load 3600 W )	(I) 70 - 150 rpm
	(II) 170 - 410 rpm
Spindle (Weldon)	MT4 31,75 mm
Voltage	110 - 120 V / 60 Hz
	220 - 240 V / 50 - 60 Hz

Largest stockist of Magnetic Drill Machine euroboor in Abu Dhabi, Dubai, UAE, Iraq, Saudi Arabia, Kuwait, Oman.

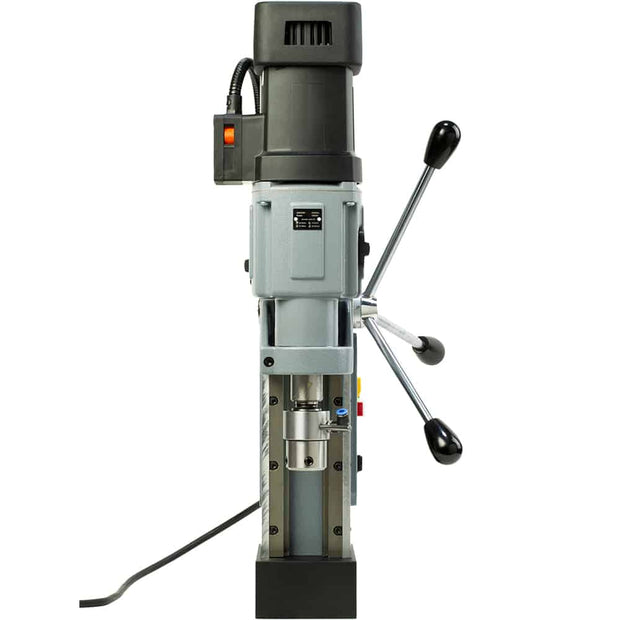

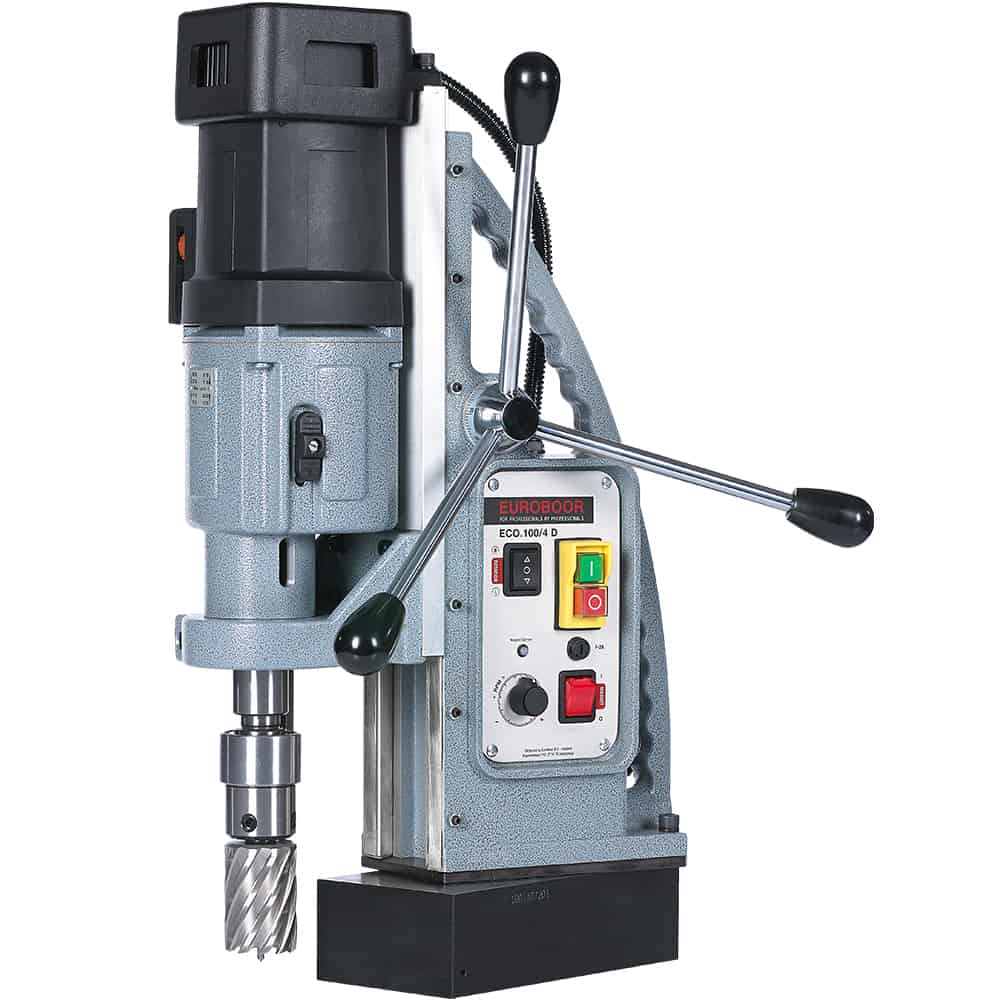

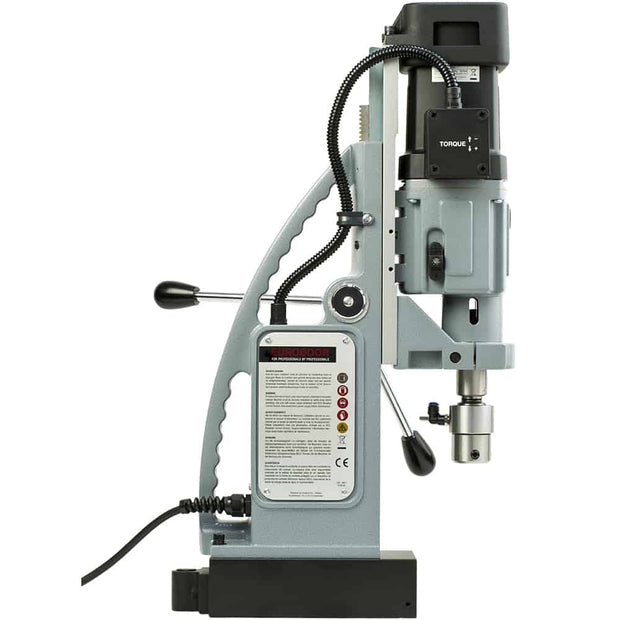

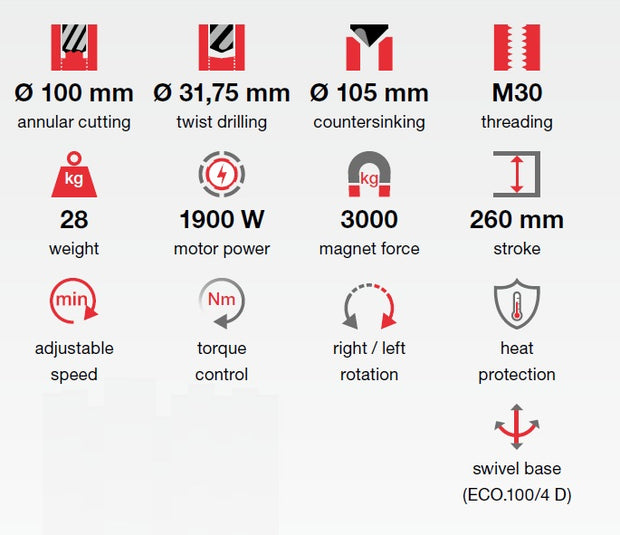

Euroboor Magnetic Drilling Machine ECO.100/4(D)

Euroboor Magnetic Drilling Machine ECO.100/4(D)

PLEASE CONTACT US IF YOU ARE INTERESTED IN THIS PRODUCT

Four-speed gearbox
Particularly suitable for threading
Right/left functionality and electronic speed adjustment

Torque control on motor house
Heat protection
Morse Taper 3 spindle with integrated tool cooling and lubrication

Strong dual coil CNC machined magnet

ECO.100/4 D

Precise positioning swivel base

Technical data
Annular cutting	Ø 12 - 100 mm
Twist drilling	Ø 1 - 31,75 mm
Countersinking	Ø 10 - 105 mm
Threading	M3 - M30
Length	365 mm
Width	310 mm
Height	515 - 715 mm
Stroke	260 mm
Weight	28 kg
Magnet (l x w x h)	220 x 110 x 64 mm
Magnetic force	3000 kg
Motor Power	1900 W
Total power	2050 W
Speed (no load)	(I) 42 - 110 rpm
	(II) 65 - 190 rpm
	(III) 140 - 400 rpm
	(IV) 220 - 620 rpm
Speed (load 1900 W)	(I) 85 rpm
	(II) 152 rpm
	(III) 270 rpm
	(IV) 480 rpm
Spindle (Weldon)	MT3 19,05 mm
Voltage	110 - 120 V / 60 Hz
	220 - 240 V / 50 - 60 Hz

Largest stockist of Magnetic Drill Machine euroboor in Abu Dhabi, Dubai, UAE, Iraq, Saudi Arabia, Kuwait, Oman.

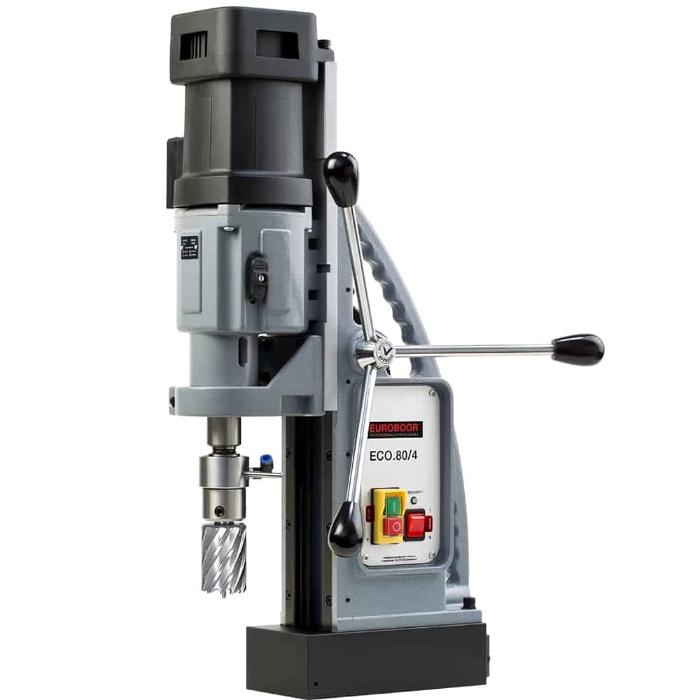

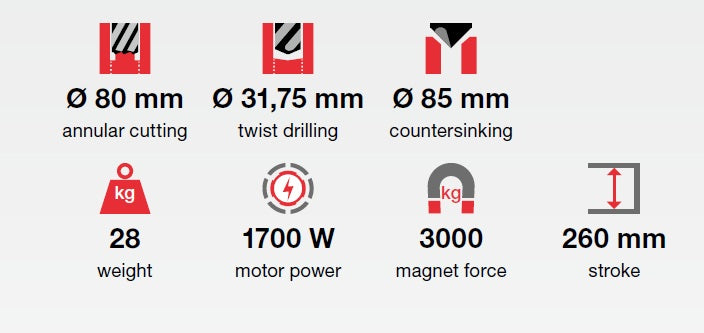

Euroboor Magnetic Drilling Machine ECO.80/4

Euroboor Magnetic Drilling Machine ECO.80/4

PLEASE CONTACT US IF YOU ARE INTERESTED IN THIS PRODUCT

Four-speed gearbox
Morse Taper 3 spindle with integrated tool cooling and lubrication

Strong dual coil CNC machined magnet

Technical data
Annular cutting	Ø 12 - 60 mm
Twist drilling	Ø 1 - 23 mm
Countersinking	Ø 10 - 65 mm
Length	320 mm
Width	200 mm
Height	452 - 622 mm
Stroke	170 mm
Weight	13 kg
Magnet (l x w x h)	168 x 84 x 49 mm
Magnetic force	1850 kg
Motor power	1600 W
Total power	1700 W
Speed (no load)	(I) 60 - 275 rpm
	(II) 100 - 500 rpm
Speed (load 1600 W)	(I) 60 - 275 rpm
	(II) 100 - 500 rpm
Spindle (Weldon)	MT 3 19,05 mm
Voltage	110 - 120 V / 60 Hz
	220 - 240 V / 50 - 60 Hz

Largest stockist of Magnetic Drill Machine euroboor in Abu Dhabi, Dubai, UAE, Iraq, Saudi Arabia, Kuwait, Oman.

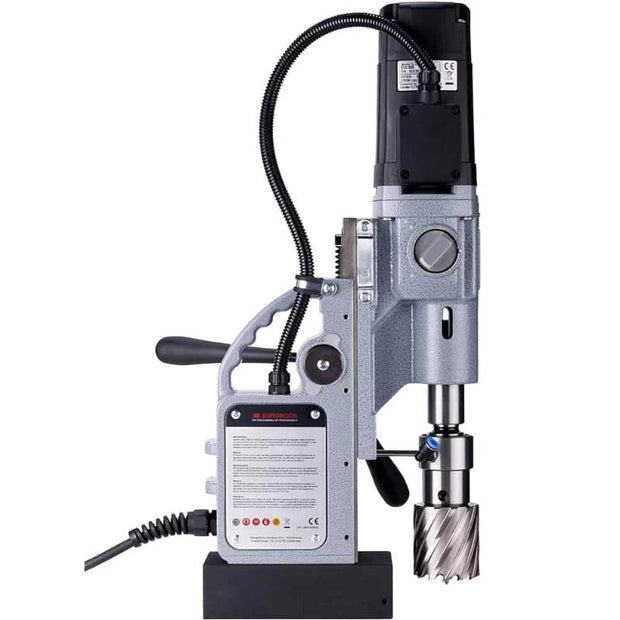

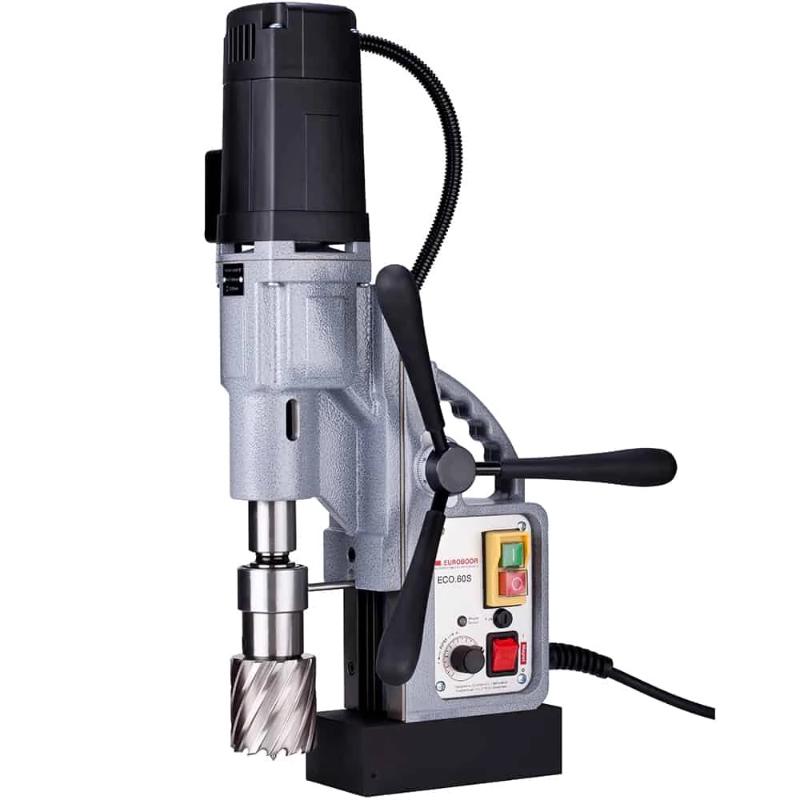

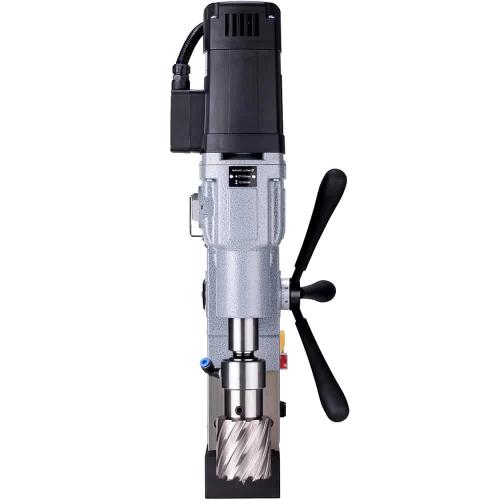

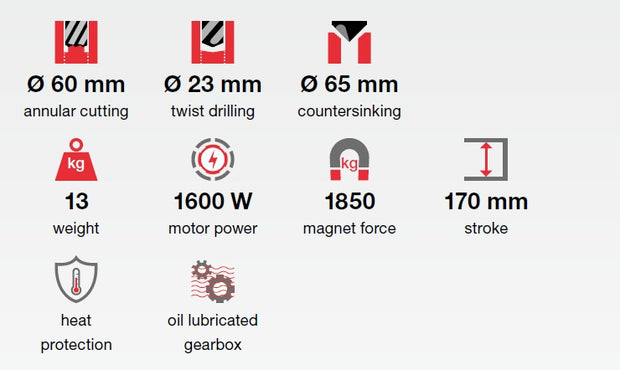

Euroboor Magnetic Drilling Machine ECO.60S

Euroboor Magnetic Drilling Machine ECO.60S

PLEASE CONTACT US IF YOU ARE INTERESTED IN THIS PRODUCT

Electronic speed adjustment
Heat protection
High accuracy capstan hub
Morse Taper 3 spindle with integrated tool cooling and lubrication

Integrated slide and two-speed oil lubricated gearbox for:

High accuracy
Enlarged lifecycle
Minimal vibration

High precision height adjustment for:

Low maintenance
Minimal wear correction

Strong dual coil CNC machined magnet

Technical data
Annular cutting	Ø 12 - 60 mm
Twist drilling	Ø 1 - 23 mm
Countersinking	Ø 10 - 65 mm
Length	320 mm
Width	200 mm
Height	452 - 622 mm
Stroke	170 mm
Weight	13 kg
Magnet (l x w x h)	168 x 84 x 49 mm
Magnetic force	1850 kg
Motor power	1600 W
Total power	1700 W
Speed (no load)	(I) 60 - 275 rpm
	(II) 100 - 500 rpm
Speed (load 1600 W)	(I) 60 - 275 rpm
	(II) 100 - 500 rpm
Spindle (Weldon)	MT 3 19,05 mm
Voltage	110 - 120 V / 60 Hz
	220 - 240 V / 50 - 60 Hz

Largest stockist of Magnetic Drill Machine euroboor in Abu Dhabi, Dubai, UAE, Iraq, Saudi Arabia, Kuwait, Oman.

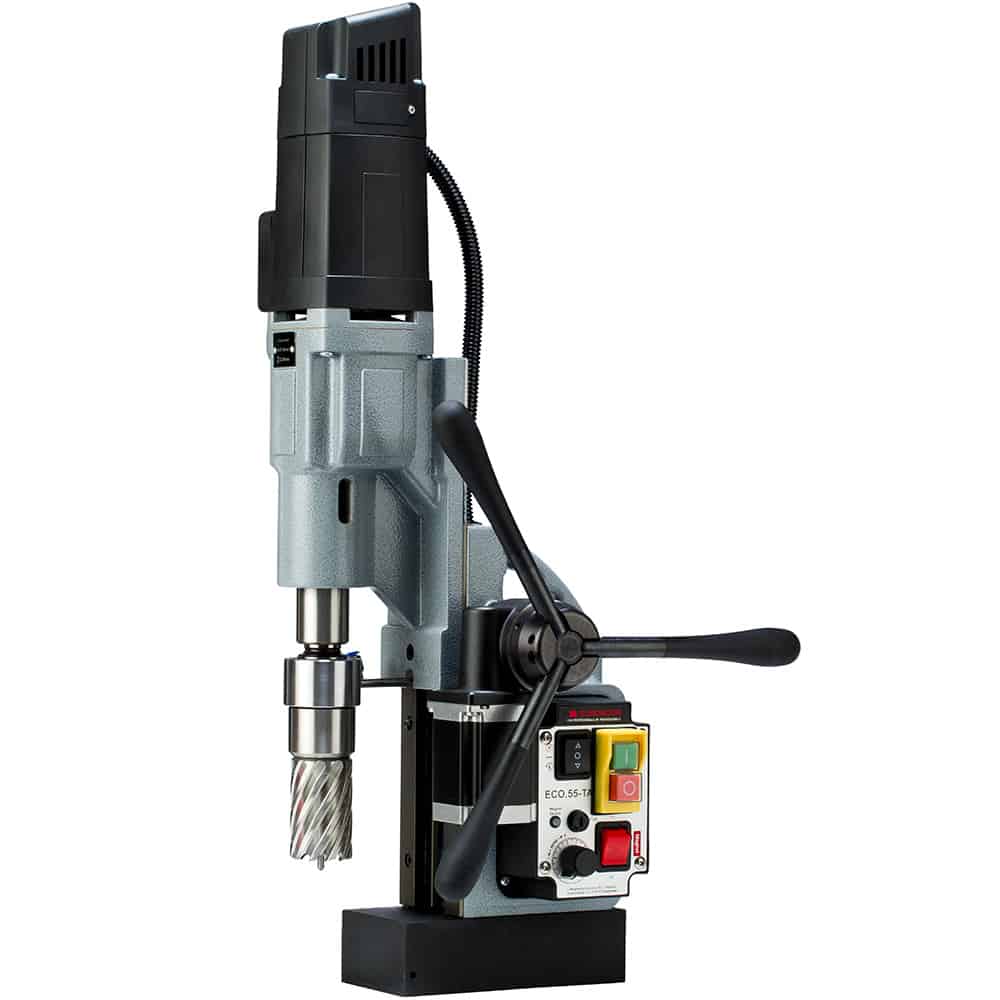

Euroboor Magnetic Drilling Machine ECO.55-TA

Euroboor Magnetic Drilling Machine ECO.55-TA

PLEASE CONTACT US IF YOU ARE INTERESTED IN THIS PRODUCT

Automatic drill functionality with automatic return (for annular cutting)

Digital display showing ideal power usage
Smart Restart technology
Particularly suitable for threading
Right/left functionality and electronic speed adjustment

Easily accessible auto shut-off carbon brushes

Morse Taper 3 spindle with integrated tool cooling and lubrication

Integrated slide and two-speed oil lubricated gearbox for:

High accuracy
Enlarged lifecycle
Minimal vibration

High precision height adjustment for:

Low maintenance
Minimal wear correction

Strong dual coil CNC machined magnet

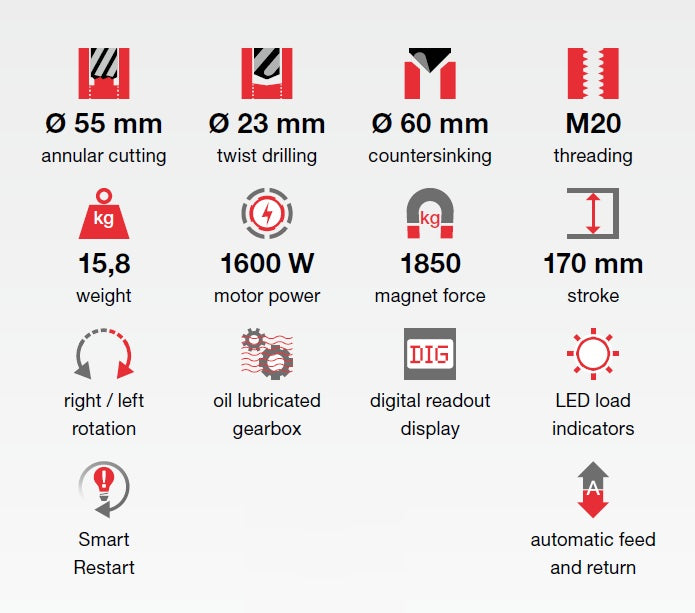

Technical data
Annular cutting	Ø 12 - 55 mm
Twist drilling	Ø 1 - 23 mm
Countersinking	Ø 10 - 60 mm
Threading	M3 - M20
Length	345 mm
Width	305 mm
Height	490 - 660 mm
Stroke	170 mm
Weight	15,8 kg
Magnet (l x w x h)	168 x 84 x 49 mm
Magnetic force	1850 kg
Motor Power	1600 W
Total power	1700 W
Speed (no load)	(I) 60 - 275 rpm
	(II) 100 - 500 rpm
Speed (load 1600 W )	(I) 60 - 275 rpm
	(II) 100 - 500 rpm
Spindle (Weldon)	MT 3 19,05 mm
Voltage	110 - 120 V / 60 Hz
	220 - 240 V / 50 - 60 Hz

Largest stockist of Magnetic Drill Machine euroboor in Abu Dhabi, Dubai, UAE, Iraq, Saudi Arabia, Kuwait, Oman.

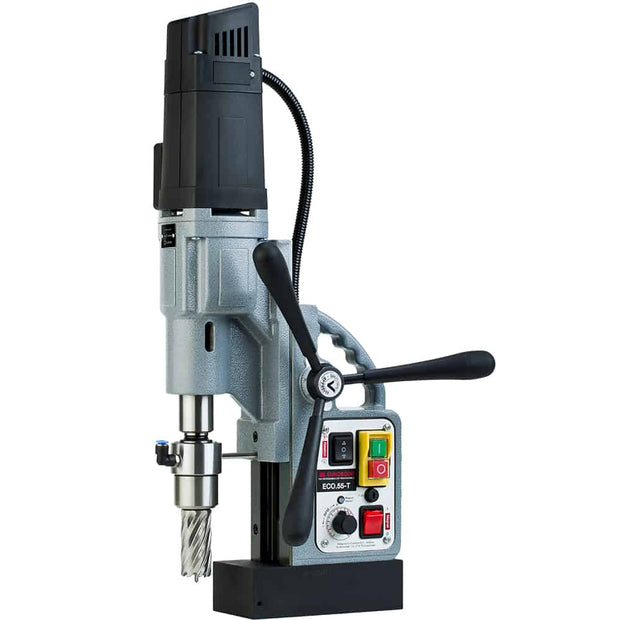

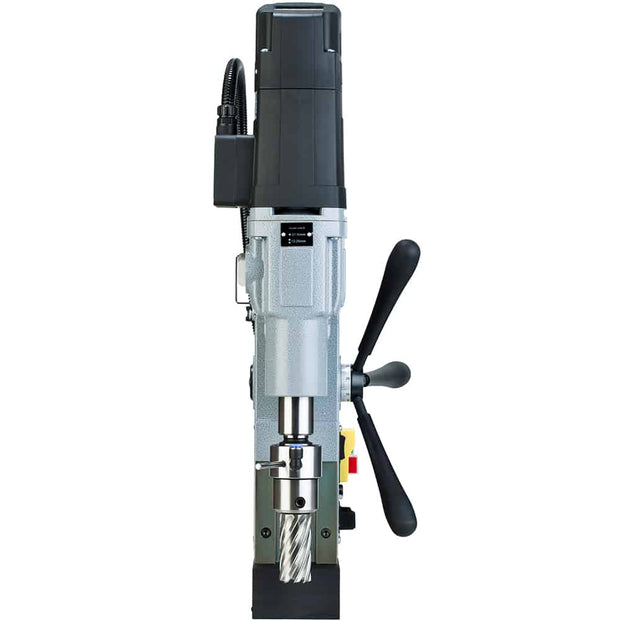

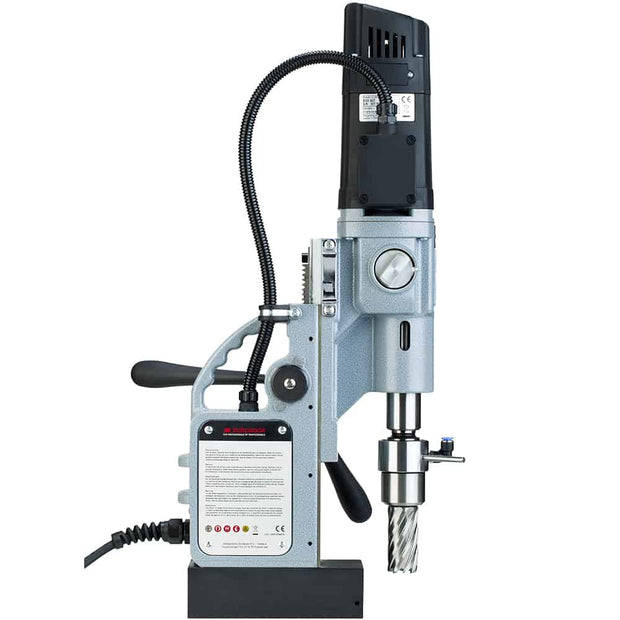

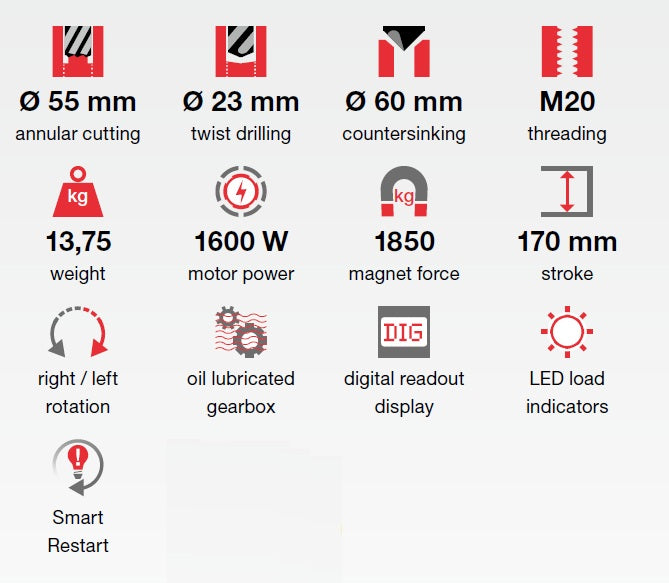

Euroboor Magnetic Drilling Machine ECO.55-T

Euroboor Magnetic Drilling Machine ECO.55-T

PLEASE CONTACT US IF YOU ARE INTERESTED IN THIS PRODUCT

Digital display showing ideal power usage
Smart Restart technology
Particularly suitable for threading
Right/left functionality and electronic speed adjustment
Easily accessible auto shut-off carbon brushes
High accuracy capstan hub
Morse Taper 3 spindle with integrated tool cooling and lubrication
Integrated slide and two-speed oil lubricated gearbox for:

High accuracy
Enlarged lifecycle
Minimal vibration

High precision height adjustment for:

Low maintenance
Minimal wear correction

Strong dual coil CNC machined magnet

Technical data
Annular cutting	Ø 12 - 55 mm
Twist drilling	Ø 1 - 23 mm
Countersinking	Ø 10 - 60 mm
Threading	M3 - M20
Length	320 mm
Width	200 mm
Height	490 - 660 mm
Stroke	170 mm
Weight	13,75 kg
Magnet (l x w x h)	168 x 84 x 49 mm
Magnetic force	1850 kg
Motor power	1600 W
Total power	1700 W
Speed (no load)	(I) 60 - 275 rpm
	(II) 100 - 500 rpm
Speed (load 1600 W)	(I) 60 - 275 rpm
	(II) 100 - 500 rpm
Spindle (Weldon)	MT3 19,05 mm
Voltage	110 - 120 V / 60 Hz
	220 - 240 V / 50 - 60 Hz

Largest stockist of Magnetic Drill Machine euroboor in Abu Dhabi, Dubai, UAE, Iraq, Saudi Arabia, Kuwait, Oman.

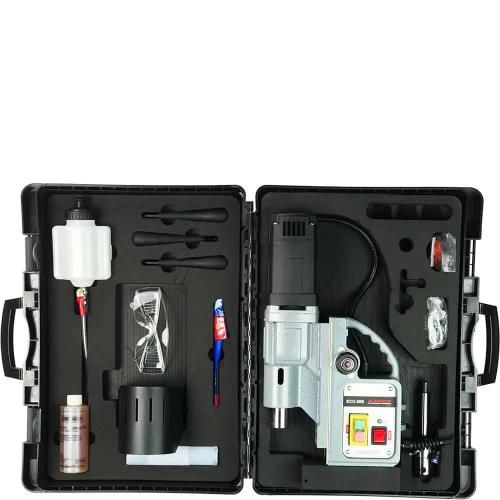

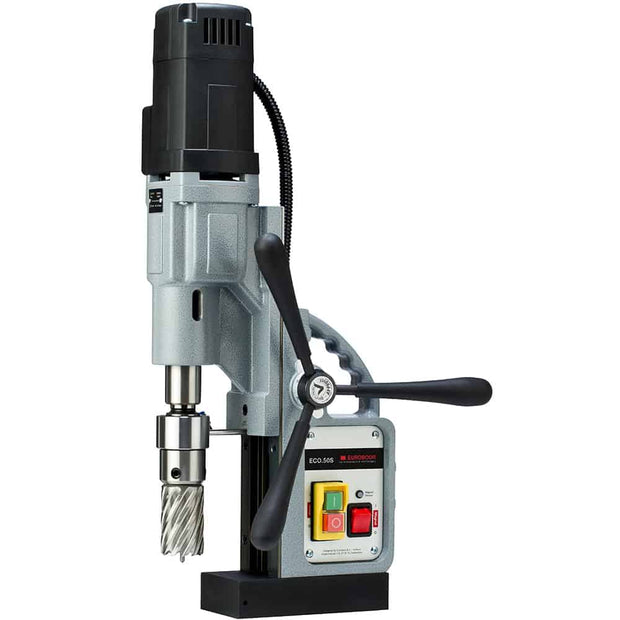

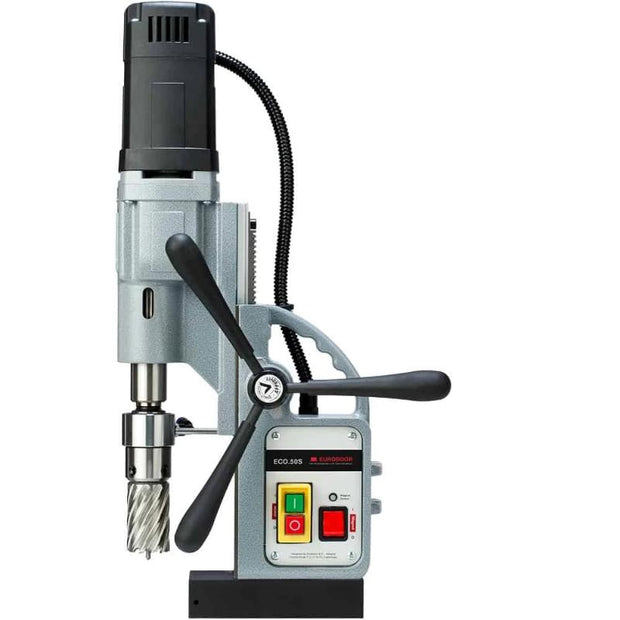

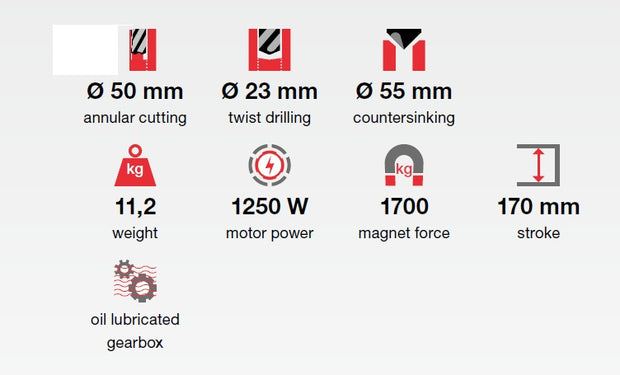

Euroboor Magnetic Drilling Machine ECO.50S

Euroboor Magnetic Drilling Machine ECO.50S

PLEASE CONTACT US IF YOU ARE INTERESTED IN THIS PRODUCT

High accuracy capstan hub
Morse Taper 3 spindle with integrated tool cooling and lubrication
Integrated slide and two-speed oil lubricated gearbox for:

High accuracy
Enlarged lifecycle
Minimal vibration

High precision height adjustment for:

Low maintenance
Minimal wear correction

Strong dual coil CNC machined magnet

Technical data
Annular cutting	Ø 12 - 50 mm
Twist drilling	Ø 1 - 23 mm
Countersinking	Ø 10 - 55 mm
Length	320 mm
Width	200 mm
Height	445 - 615 mm
Stroke	170 mm
Weight	11,2 kg
Magnet (l x w x h)	160 x 80 x 42 mm
Magnetic force	1700 kg
Motor power	1250 W
Total power	1300 W
Speed (no load)	(I) 315 rpm
	(II) 690 rpm
Speed (load 1250 W)	(I) 235 rpm
	(II) 415 rpm
Spindle (Weldon)	MT3 19,05 mm
Voltage	110 - 120 V / 60 Hz
	220 - 240 V / 50 - 60 Hz

Largest stockist of Magnetic Drill Machine euroboor in Abu Dhabi, Dubai, UAE, Iraq, Saudi Arabia, Kuwait, Oman.

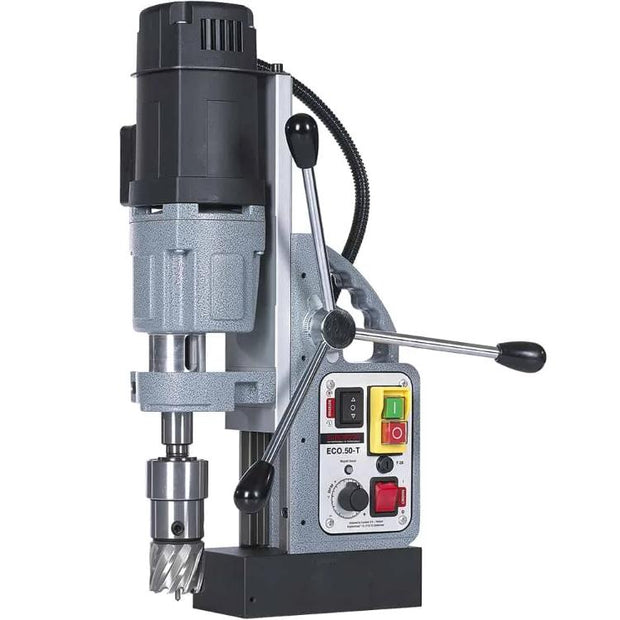

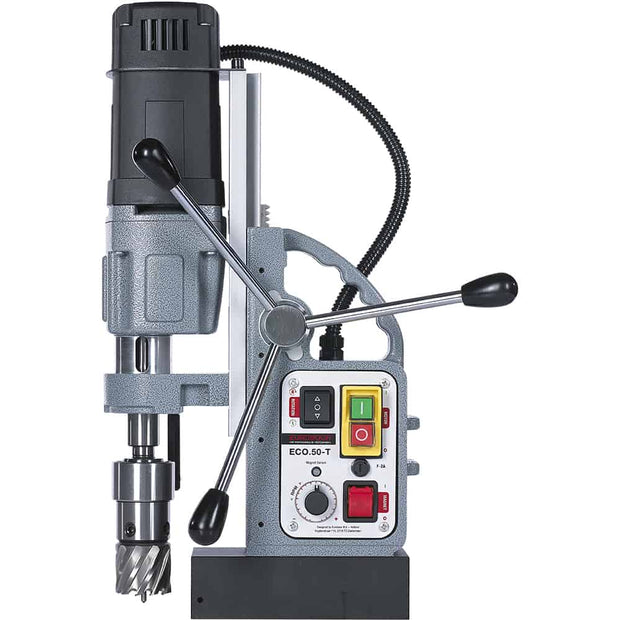

Euroboor Magnetic Drilling Machine ECO.50-T

Euroboor Magnetic Drilling Machine ECO.50-T

PLEASE CONTACT US IF YOU ARE INTERESTED IN THIS PRODUCT

Particularly suitable for tapping
Two-speed gearbox
Right/left functionality and electronic speed adjustment
Heat protection
Morse Taper 2 spindle with integrated tool cooling and lubrication
High precision height adjustment for:

Low maintenance
Minimal wear correction

Strong dual coil CNC machined magnet

Technical data
Annular cutting	Ø 12 - 55 mm
Twist drilling	Ø 1 - 23 mm
Countersinking	Ø 10 - 60 mm
Threading	M3 - M20
Length	320 mm
Width	200 mm
Height	490 - 660 mm
Stroke	170 mm
Weight	13,75 kg
Magnet (l x w x h)	168 x 84 x 49 mm
Magnetic force	1850 kg
Motor power	1600 W
Total power	1700 W
Speed (no load)	(I) 60 - 275 rpm
	(II) 100 - 500 rpm
Speed (load 1600 W)	(I) 60 - 275 rpm
	(II) 100 - 500 rpm
Spindle (Weldon)	MT3 19,05 mm
Voltage	110 - 120 V / 60 Hz
	220 - 240 V / 50 - 60 Hz

Largest stockist of Magnetic Drill Machine euroboor in Abu Dhabi, Dubai, UAE, Iraq, Saudi Arabia, Kuwait, Oman.

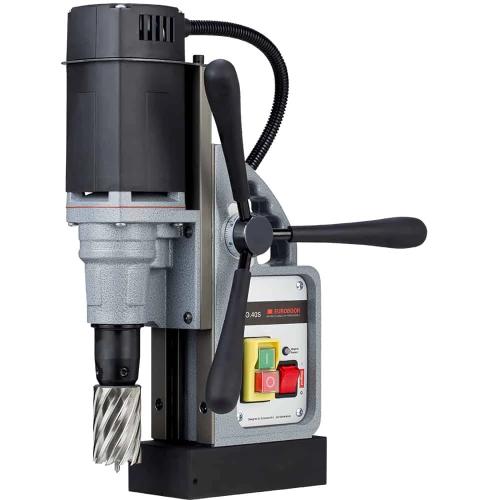

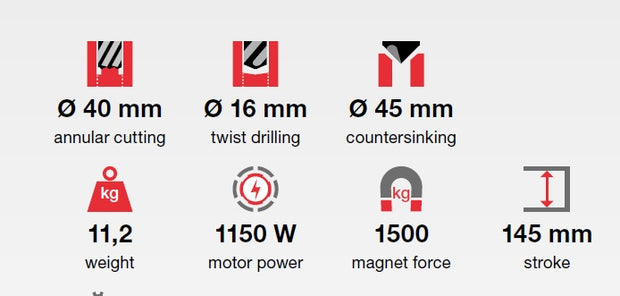

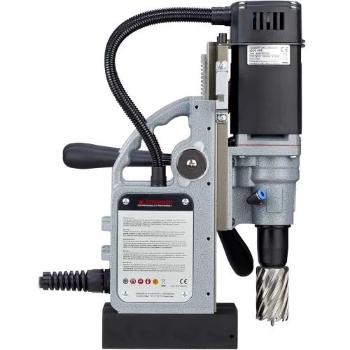

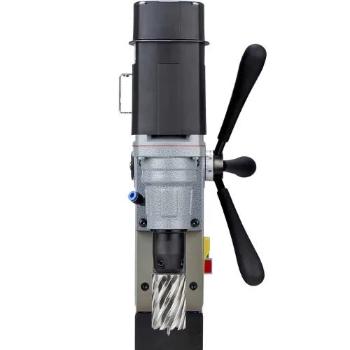

Euroboor Magnetic Drilling Machine ECO.40S

Euroboor Magnetic Drilling Machine ECO.40S

PLEASE CONTACT US IF YOU ARE INTERESTED IN THIS PRODUCT

Lightest Ø 40 mm Magnetic Drilling Machine
Fits cutters up to 110 mm DoC
High Efficiency motor with less heath generation
High accuracy capstan hub
Direct spindle drive and integrated tool cooling and lubrication
Integrated slide and one-speed oil lubricated gearbox for:

High accuracy
Enlarged lifecycle
Minimal vibration

High precision height adjustment for:

Low maintenance
Minimal wear correction

Strong dual coil CNC machined magnet

Technical data
Annular cutting	Ø 12 - 40 mm
Twist drilling	Ø 1 - 16 mm
Countersinking	Ø 10 - 45 mm
Length	264 mm
Width	180 mm
Height	360 - 440 mm
Stroke	145 mm
Weight	11,2 kg
Magnet (l x w x h)	160 x 80 x 42 mm
Magnetic force	1500 kg
Motor power	1150 W
Total power	1200 W
Speed (no load)	600 rpm
Speed (load 1150 W)	380 rpm
Spindle (Weldon)	19,05 mm
Voltage	110- 120 V / 60 Hz
Voltage	220 - 240 V / 50 - 60 Hz

Largest stockist of Magnetic Drill Machine euroboor in Abu Dhabi, Dubai, UAE, Iraq, Saudi Arabia, Kuwait, Oman.

Euroboor Magnetic Drilling Machine ECO.40/2

Euroboor Magnetic Drilling Machine ECO.40/2

PLEASE CONTACT US IF YOU ARE INTERESTED IN THIS PRODUCT

Specially designed for twist drilling

Particularly suitable for twist drilling
Detachable spindle drive and integrated tool cooling and lubrication
Integrated slide and two-speed gearbox for:

High accuracy
Enlarged lifecycle
Minimal vibration

High precision height adjustment for

Low maintenance
Minimal wear correction

• Strong dual coil CNC machined magnet

Technical data
Annular cutting	Ø 12 - 40 mm
Twist drilling	Ø 1 - 13 mm
Countersinking	Ø 10 - 45 mm
Length	320 mm
Width	210 mm
Height	395 - 540 mm
Stroke	150 mm
Weight	12 kg
Magnet (l x w x h)	160 x 80 x 42 mm
Magnetic force	1500 kg
Motor power	1050 W
Total power	1100 W
Speed (no load)	(I) 720 rpm
Speed (no load)	(II) 1300 rpm
Speed (load 1050 W)	(I) 315 rpm
Speed (load 1050 W)	(II) 560 rpm
Spindle (Weldon)	19,05 mm
Voltage	110 - 120 V / 60 Hz
Voltage	220 - 240 V / 50 - 60 Hz

Largest stockist of Magnetic Drill Machine euroboor in Abu Dhabi, Dubai, UAE, Iraq, Saudi Arabia, Kuwait, Oman.

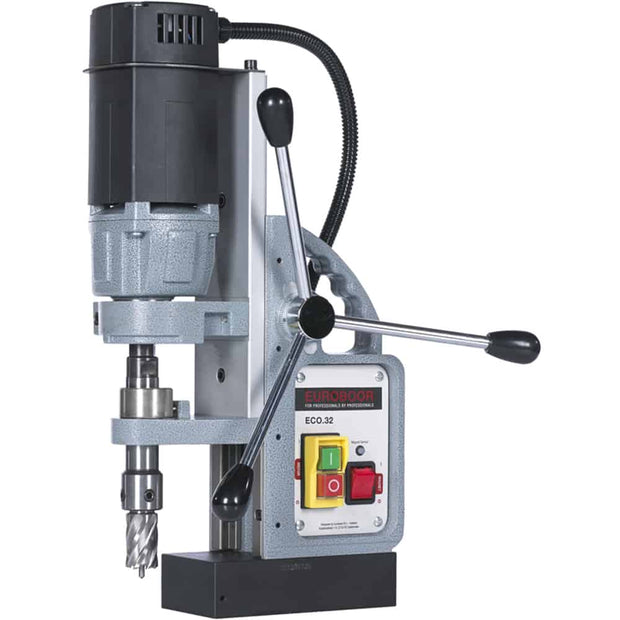

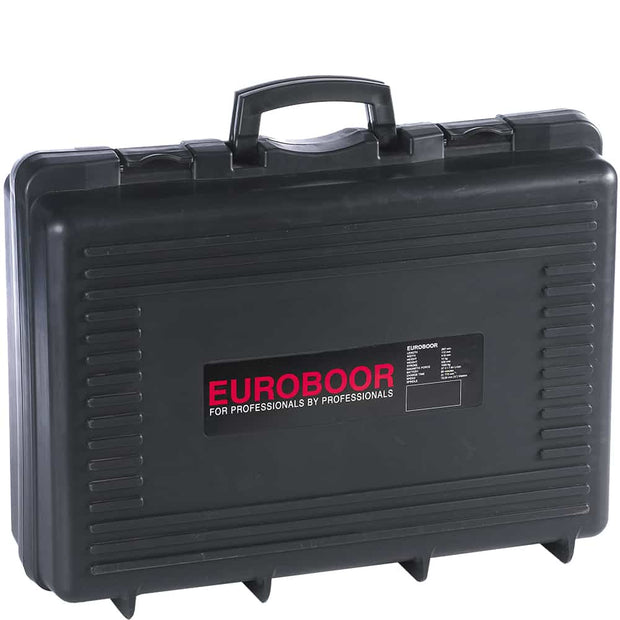

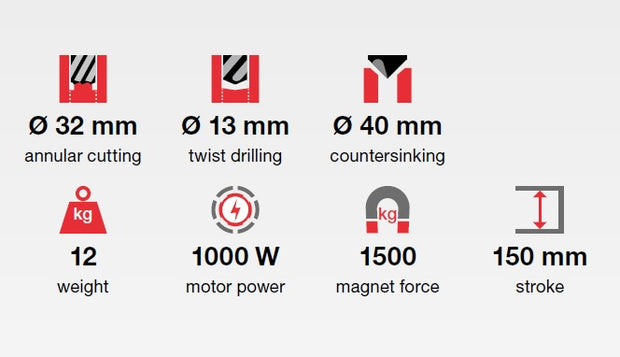

Euroboor Magnetic Drilling Machine ECO.32

Euroboor Magnetic Drilling Machine ECO.32

PLEASE CONTACT US IF YOU ARE INTERESTED IN THIS PRODUCT

One-speed gearbox
Detachable spindle drive and integrated tool cooling and lubrication
High precision height adjustment for:

Low maintenance
Minimal wear correction

Strong dual coil CNC machined magnet

Technical data
Annular cutting	Ø 12 - 32 mm
Twist drilling	Ø 1 - 13 mm
Countersinking	Ø 10 - 40 mm
Length	320 mm
Width	210 mm
Height	370 - 512 mm
Stroke	150 mm
Weight	12 kg
Magnet (l x w x h)	160 x 80 x 42 mm
Magnetic force	1500 kg
Motor power	1000 W
Total power	1050 W
Speed (no load)	775 rpm
Speed (load 1000 W)	440 rpm
Spindle (Weldon)	19,05 mm
Voltage	110 - 120 V / 60 Hz 220 - 240 V / 50 - 60 Hz

Largest stockist of Magnetic Drill Machine euroboor in Abu Dhabi, Dubai, UAE, Iraq, Saudi Arabia, Kuwait, Oman.

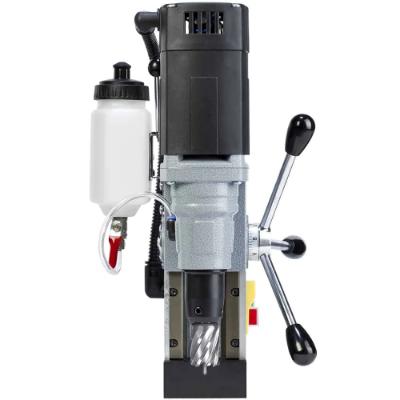

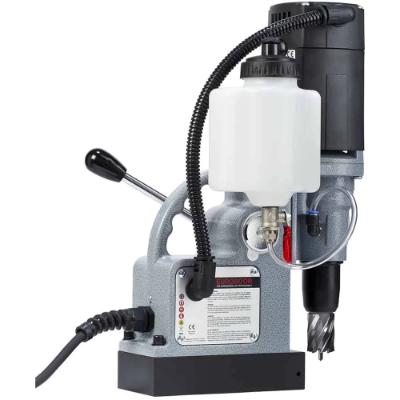

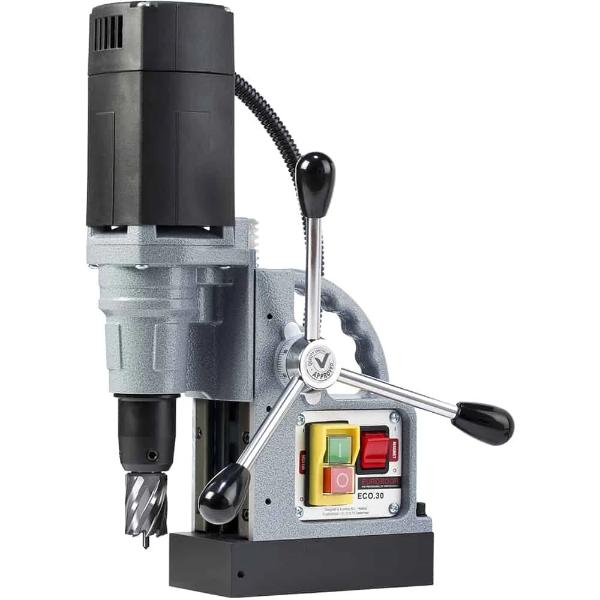

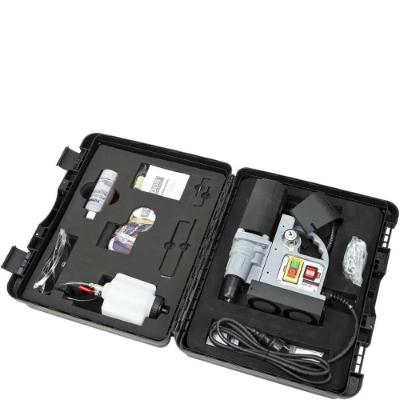

Euroboor Magnetic Drilling Machine ECO.30

Euroboor Magnetic Drilling Machine ECO.30

PLEASE CONTACT US IF YOU ARE INTERESTED IN THIS PRODUCT

Lightest corded Ø 30 mm Magnetic Drilling Machine:

Most compact in class
Incredibly easy to handle

Direct spindle drive and integrated tool cooling and lubrication
Integrated slide and one-speed gearbox for:

High accuracy
Enlarged lifecycle
Minimal vibration

High precision height adjustment for:

Low maintenance
Minimal wear correction
Strong dual coil CNC machined magnet

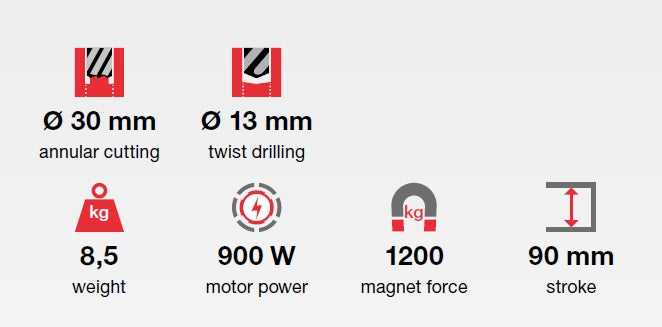

Technical data
Annular cutting	Ø 12 - 30 mm
Twist drilling	Ø 1 - 13 mm
Countersinking	Ø 10 - 35 mm
Length	275 mm
Width	190 mm
Height	293 - 383 mm
Stroke	90 mm
Weight	8,5 kg
Magnet (l x w x h)	160 x 80 x 37 mm
Magnetic force	1200 kg
Motor power	900 W
Total power	950 W
Speed (no load)	775 rpm
Speed (load 900 W)	400 rpm
Spindle (Weldon)	19,05 mm
Voltage	110 - 120 V / 60 Hz
Voltage	220 - 240 V / 50 - 60 Hz

Largest stockist of Magnetic Drill Machine euroboor in Abu Dhabi, Dubai, UAE, Iraq, Saudi Arabia, Kuwait, Oman.
