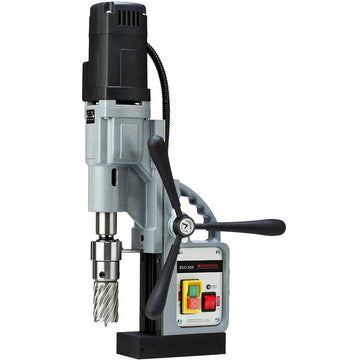

Magnetic Drilling Machine ECO.50S
Magnetic Drilling Machine ECO.50S
Magnetic Drilling Machine ECO.50S
Magnetic Drilling Machine ECO.50S
Magnetic Drilling Machine ECO.50S

Magnetic Drilling Machine ECO.50S


Please contact us if you are interested in this product.


  • High accuracy capstan hub

  • Morse Taper 3 spindle with integrated tool cooling and lubrication

  • Integrated slide and two-speed oil lubricated gearbox for:
    • High accuracy
    • Enlarged lifecycle
    • Minimal vibration
  • High precision height adjustment for:
    • Low maintenance
    • Minimal wear correction
  • Strong dual coil CNC machined magnet
Technical data
Annular cutting Ø 12 - 50 mm
Twist drilling Ø 1 - 23 mm
Countersinking Ø 10 - 55 mm
Length 320 mm
Width 200 mm
Height 445 - 615 mm
Stroke 170 mm
Weight 11,2 kg
Magnet (l x w x h) 160 x 80 x 42 mm
Magnetic force 1700 kg
Motor power 1250 W
Total power 1300 W
Speed (no load) (I) 315 rpm
  (II) 690 rpm
Speed (load 1250 W) (I) 235 rpm
  (II) 415 rpm
Spindle (Weldon) MT3 19,05 mm
Voltage 110 - 120 V / 60 Hz
  220 - 240 V / 50 - 60 Hz
