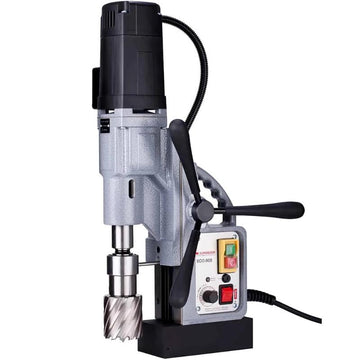

Magnetic Drilling Machine ECO.60S
Magnetic Drilling Machine ECO.60S
Magnetic Drilling Machine ECO.60S
Magnetic Drilling Machine ECO.60S
Magnetic Drilling Machine ECO.60S

Magnetic Drilling Machine ECO.60S


Please contact us if you are interested in this product.


  • Electronic speed adjustment

  • Heat protection

  • High accuracy capstan hub

  • Morse Taper 3 spindle with integrated tool cooling and lubrication
    • Integrated slide and two-speed oil lubricated gearbox for:
      • High accuracy
      • Enlarged lifecycle
      • Minimal vibration
  • High precision height adjustment for:
    • Low maintenance
    • Minimal wear correction
  • Strong dual coil CNC machined magnet
Technical data
Annular cutting Ø 12 - 60 mm
Twist drilling Ø 1 - 23 mm
Countersinking Ø 10 - 65 mm
Length 320 mm
Width 200 mm
Height 452 - 622 mm
Stroke 170 mm
Weight 13 kg
Magnet (l x w x h) 168 x 84 x 49 mm
Magnetic force 1850 kg
Motor power 1600 W
Total power 1700 W
Speed (no load) (I) 60 - 275 rpm
  (II) 100 - 500 rpm
Speed (load 1600 W) (I) 60 - 275 rpm
  (II) 100 - 500 rpm
Spindle (Weldon) MT 3 19,05 mm
Voltage 110 - 120 V / 60 Hz
  220 - 240 V / 50 - 60 Hz
