Gate Valve Lockout

Largest stockist in Abu Dhabi, Dubai, UAE, Iraq, Saudi Arabia, Kuwait, Oman.

Safe & effective method for locking out Miniature Circuit Breakers.

The lockout can easily be installed with the aid of a screw driver or with the help of new dandy Twister Screw.

It can be used on single & multi - pole breakers.

A Padlock on UBL should be applied to Lockout the MCB.

MODEL PRODUCT DESCRIPTION

ES-UBL  Universal Circuit Breaker Lockout ( A / B / C / D ) - order individually

ES-UBL - A TS     UBL : A TAIL Type with Twister Screw

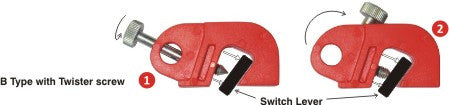

ES-UBL - B TS      UBL : B Type with Twister Screw

Largest stockist in Abu Dhabi, Dubai, UAE, Iraq, Saudi Arabia, Kuwait, Oman.

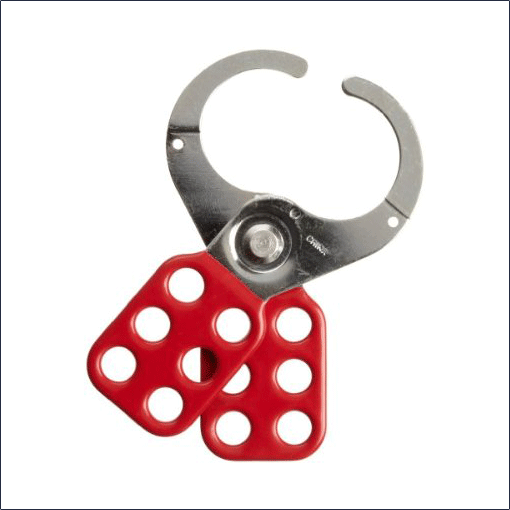

VINYL COATED LOCKOUT HASO

 Safety lockout hasps are used when you wish to use multiple padlocks to isolate one energy source. A hasp is placed through the isolating point and closed, allowing each authorised person to place their own padlock on it.

• The system is then locked out, preventing any re-energising until all padlocks are removed. Scissor action hasps are available in 25 mm / 38 mm Dia Jaw size.
• In vinyl coated hasps the padlock fixing section is vinyl coated for better grip & visibility.
• Accepts padlocks with a shackle diameter up to 9 mm. 6 locks can be installed on each hasp.
• Manufactured from high tensile steel sheet which has been electro-plated to prevent rusting

ES-VCH-P          Vinyl Coated Hasp – Premier – RED (6mm Shackle Thickness)

Largest stockist in Abu Dhabi, Dubai, UAE, Iraq, Saudi Arabia, Kuwait, Oman.

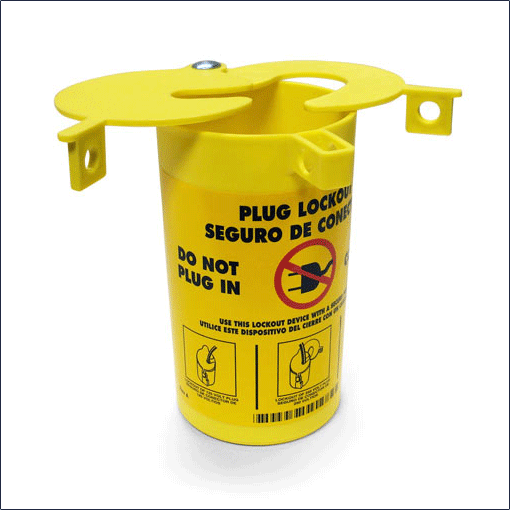

Plug Lockout Box : Manufactured from sturdy polystyrene, the unit has been developed to completely enclose electrical plugs to prevent a machine being energized. The plug completely sits inside the unit with the cable being fed through an access hole inside.
The small unit is suitable for a variety of electrical connections up to 40 mm diameter, with a locking mechanism taking up to 4 safety padlocks. The large unit is suitable for standard and larger electrical plugs, including 3 phase connectors.

• Plug lockout prevent electrical plugs from being inserted into a wall outlet.
• Made of rugged polypropylene.
• Small 110V plug lockout: 2”H x 2”D x 3½”W with ½” diameter hole for cable.
• Large 220V / 500V plug lockout: 3¼”H x 3¼”D x 7”W with 1” diameter hole for cable.
• Especially developed to secure all types of plugs.
• Completely encloses electrical plugs to prevent accidental re-connection.
• Two sizes available.

ES-SPLO               Small Plug Lockout – Box

ES-LPLO               Large Plug Lockout – Box

Largest stockist in Abu Dhabi, Dubai, UAE, Iraq, Saudi Arabia, Kuwait, Oman.

Plug lockouts

Largest stockist in Abu Dhabi, Dubai, UAE, Iraq, Saudi Arabia, Kuwait, Oman.

Multi Purpose Cable Lockouts

Largest stockist in Abu Dhabi, Dubai, UAE, Iraq, Saudi Arabia, Kuwait, Oman.

Locks out a wide range of three phase Circuit Breakers (227 V & above).

Fits on lever of Circuit Breaker upto 3" wide & 0.9" thick.

Handy Device : make it easy to secure the large Circuit Breakers at any workplace.

Rugged Stainless Steel / PVC Constructions.

Corrosion resistant.

Easy installation - simply turn the screw into the Circuit breaker handle & add your own Padlock & Tag after fitting it properly.

MODEL PRODUCT DESCRIPTION

ES-LCB  LARGE Circuit Breaker Lockout

ES-LCB - TS          LCB - with Twister Screw

ES-LCB R               LCB - Round Handle

Largest stockist in Abu Dhabi, Dubai, UAE, Iraq, Saudi Arabia, Kuwait, Oman.

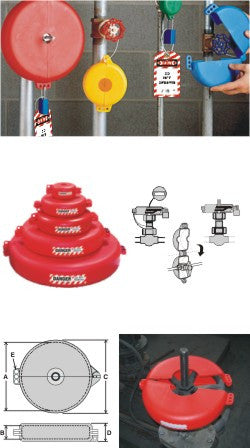

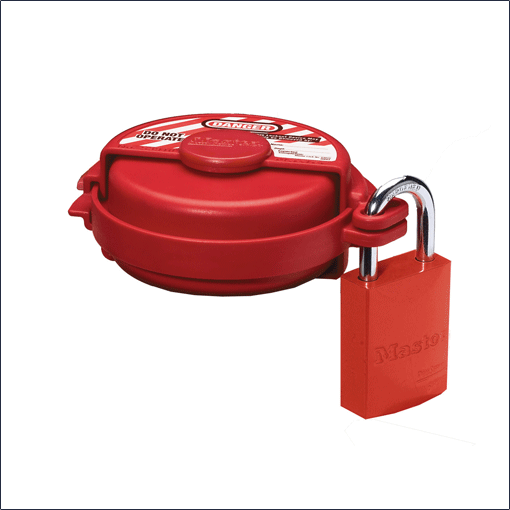

Gate Valve Lockout : Virtually indestructible valve covers.

Once locked, they rotate freely around the hand wheel & prevent the valve wheel from being turned.

The strong polyurethane plastics make them resistant to cracking and abrasion.

They are resistant to extreme weather and temperature conditions.

Available in 5 sizes ( Red colour ) Other colours are available on request - minimum quantity applicable.

3 padlock holes are available in each gate valve lockout device.

Different sizes cover most commonly used valve diameters.

Withstands temperatures from - 20°F to 200°F

Unique knockout center accommodates OS & Y or “rising stem” valves.

Suitable for hasps and padlocks.

  Dimensions

Size        Inside dia (A)     Inside depth.(B)               Outside dia. (C) Outside height (D)

25 - 63.5 mm      70 mm  32 mm  76 mm  38 mm

63.5 - 127 mm    130 mm                34 mm  140 mm                44 mm

127 - 165 mm     170 mm                41 mm  177 mm                50 mm

165 - 254 mm     257 mm                50 mm  267 mm                63 mm

254 - 355 mm     355 mm                63 mm  368 mm                74 mm

MODEL PRODUCT DESCRIPTION

ES - 02 - GVL       Fits on handle wheel dia from 25 to 63.5 mm ( 1" - 2½" inch)

ES - 04 - GVL       Fits on handle wheel dia from 63.5 to 127 mm ( 2½" - 5" inch)

ES - 06 - GVL       Fits on handle wheel dia from 127 to 165 mm ( 5" - 6½" inch)

ES - 08 - GVL       Fits on handle wheel dia from 165 to 254 mm ( 6½" - 10" inch)

ES - 10 - GVL       Fits on handle wheel dia from 254 to 355 mm ( 10" - 13" inch)

Largest stockist in Abu Dhabi, Dubai, UAE, Iraq, Saudi Arabia, Kuwait, Oman.

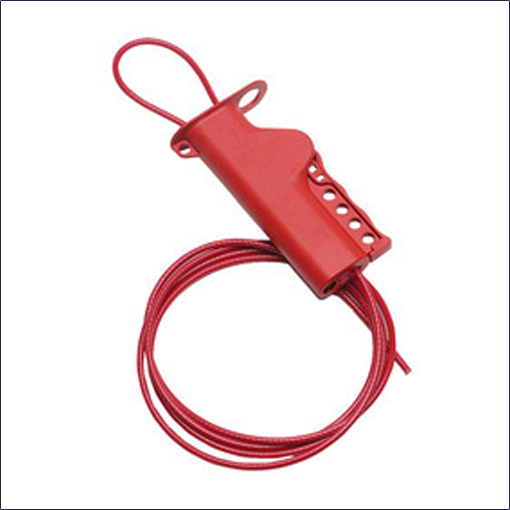

• Economy Multi Purpose Cable Lockout : Injection molded one set construction, comprising of Stainless Steel nut and bolt for corrosion free / long lasting working.
• Supplied with 2 Mtrs. Galvanized Vinyl Coated Steel Cable.
• Patented design.
• Will accept multiple padlocks (6 locks) for multiple lockout applications.
• Withstands Temperatures ( +55° C to -20º C )

ES-EML + C10    EML with 10 Mtrs. of Vinyl Coated Steel Cable

Largest stockist in Abu Dhabi, Dubai, UAE, Iraq, Saudi Arabia, Kuwait, Oman.

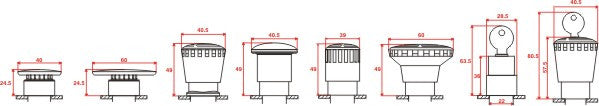

Most appreciated lockout solution for the Oversize Electrical Push Buttons on the electrical panels or on control stations. Also finds its application on the Special crane / heavy machinery.

This lockout device can be easily installed in seconds - by just placing it on the Push buttons thus concealing them in a cocoon - hence protecting them from being accidently energized.

The two parts are plugged and then locked out with the help of our lockout padlock.

Inner size of 70 mm x 85 mm height with 30 mm dia hole in center.

Largest stockist in Abu Dhabi, Dubai, UAE, Iraq, Saudi Arabia, Kuwait, Oman.

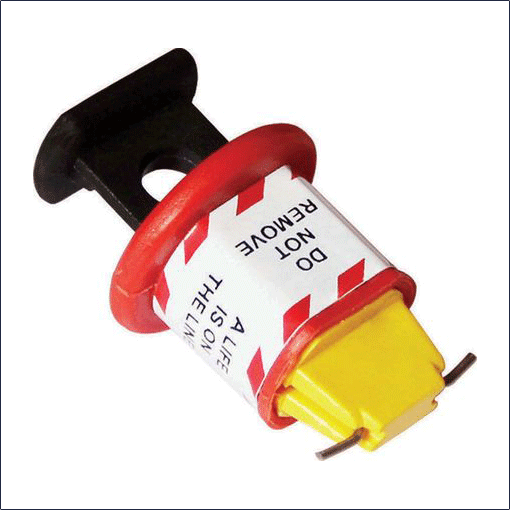

Safe & Effective method for locking out Miniature Circuit Breakers.

Push Button Installation - Does not require any tool for installation.

The Tie Bar Style Lockout has a convenient thumb wheel for quick application on Multiple Breakers.

Can be applied on Single / Multiple Breakers.

A Padlock should be applied to Lockout the MCB

MODEL PRODUCT DESCRIPTION

ES - PIN IN CBL  PIN IN Circuit Breaker Lockout

ES - PIN OUT CBL              PIN OUT Circuit Breaker Lockout

ES - PIN OUT WIDE CBL  PIN OUT WIDE Circuit Breaker Lockout

ES - COMBO CBL               1-Piece each of all the three PI / PO / POW CBL

ES - TIE BAR CBL                Tie Bar Circuit Breaker Lockout

Largest stockist in Abu Dhabi, Dubai, UAE, Iraq, Saudi Arabia, Kuwait, Oman.

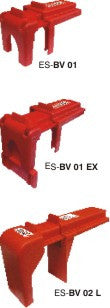

Ball Valve Lockout : These easy to use lockouts, clamp over the valve lever - preventing the valve from operating. BV-01 can lock the small size valves in the open or closed positions, whilst the larger BV-01 EX / BV-02 L can only be used in the closed position.

These two piece, die section molded lockouts can be installed on most of the types of ball valves available internationally.

Virtually indestructible finger friendly valve covers. Inner slider can be used for gripping the valve handle sleeves inside the cover.

Once locked, they prevent valve handle from being turned.

The strong polyurethane plastic make them resistant to cracking and abrasion.

They are resistant to extreme weather temperature conditions.

Available in 3 sizes.

Non conductive.

MODEL PRODUCT DESCRIPTION

ES - BV 01            For Ball Valve Dia 3/8" - 1¼" ( Max Handle length 7½" )

ES - BV 01 EX      For Ball Valve Dia 1½" - 2½" ( Max Handle length 10" )

ES - BV 02 L         For Ball Valve Dia 2" - 8" (Large Size)
