Step Down Transformer UAE
Quick view
Step Down Transformer UAE
Step Down Transformer UAE

Step Down Transformer UAE

PLEASE CONTACT US IF YOU ARE INTERESTED IN THIS PRODUCT

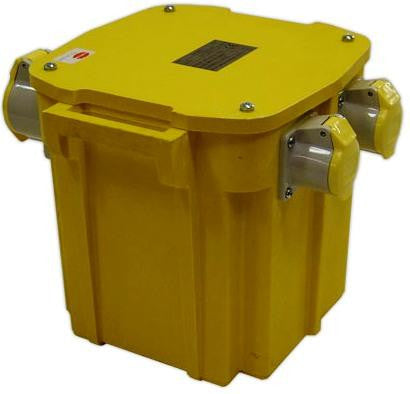

These 3000VA / 3KVA transformers are b65uilt with a tough corrosion-resistant case and fitted with thermal overload protection and two 16A sockets with full copper windings, these site transformers are ideal for use with all 110V power tools and halogen lighting on building sites. Fitted with 2M (approx.) cable and approved plug.

Specifications:
• Input voltage: 230V
• Output voltage: 110V
• Output amperage: 16A
• No. of 16A sockets: two

Complies to EN61000, EN61558 and IP44 and made in the UK


Largest stockist in Abu Dhabi, Dubai, UAE, Iraq, Saudi Arabia, Kuwait, Oman.
Step Down Transformer UAE

Step Down Transformer UAE

PLEASE CONTACT US IF YOU ARE INTERESTED IN THIS PRODUCT

5.0KVA Portable Tool Rated Transformer

Enclosure:
Moulded two part GRP case in yellow.

Transformer:
5.0KVA intermittent duty cycle (5 mins on 15mins off), 2.5KVA continuous rated isolating transformer.
Input 230 volts 1-PH @ 50/60Hz.
Output 110 volts C.T.E @ 45 amps.
Insulation class B.

Input Cable:
1.5mtr 1.5mm² sq 3 core arctic blue (Supplied With 16A 230V Blue Plug, can be changed to 13A UK Plug, please e-mail after purchase to request)

Sockets:
2 x 110 volt 16 amp + 1 x 110 volt 32 amp 2P+E IP44 rated to IEC60309

Protection:
Manually resetable 18 amp thermal MCB on input.

Misc Information:
Transformer is potted in silica sand and sealed with resin.

Dimensions:
H: 271mm, L: 315mm, W: 345mm aprx

Weight:
32Kg aprox

Largest stockist in Abu Dhabi, Dubai, UAE, Iraq, Saudi Arabia, Kuwait, Oman.
