Cell Phones

The high-performance industrial smartphone can be used in a variety of ways thanks to the ISM interface. Additional modules such as an RSM, PTT headsets or the professional IS-TH1 barcode scanner make the IS530.1 a high-performance multifunctional device. The smartphone is Android Enterprise Recommended, zero-touch capable and MDM compatible.

Multifunctional, lateral ISM interface for a quick and safe connection of additional devices

SOS key for loneworker protection
LWP ready (third party application required, based on country specific regulations)

Push-To-Talk key
PTT ready (third party application required, based on country specific approvals)

Amplified loudspeaker

Accelerometer, gyroscope, light, magnetic, proximity, pressure sensors

Dual micro-SIM

Type C USB, magnetic charger port, Desktop Charger, Multi Charger

APPROVALS

ATEX (Europe)
approved

II 2G Ex ib IIC T4 Gb
II 2D Ex ib IIIC T135°C Db IP6X

IECEx (International)
approved

Ex ib IIC T4 Gb
Ex ib IIIC T135°C Db IP6X

NEC500 (Northern America)
approved

Class I Div. 1 Groups A, B, C, D, T4
Class II Div. 1 Groups E, F, G, T135°C
Class III Div. 1

EAC (Russia)
approved

1Ex ib IIC T4 Gb X
Ex ib IIIC T135°C Db X IP64

INMETRO (Brazil)
approved

Ex ib IIC T4 Gb
Ex ib IIIC T135°C Db IP6X

KCs (South Korea)
approved

Ex ib IIC T4
Ex ib IIIC T135°C

PCEC (China)
approved

Ex ib IIC T4 Gb
Ex ibD 21 T135°C

JNIOSH (Japan)
approved

Ex ib IIC T4 Gb
Ex ib IIIC T135°C Db IP6X

SANS (South Africa)
approved

Ex ib IIC T4 Gb
Ex ib IIIC T135°C Db IP6X

CONTENTS

INCLUDED

• Smartphone
• Battery
• i.safe PROTECTOR 2.0
• i.safe PROTECTOR 3.0
• Power Adapter universal
• Screwdriver
• Display Protection Foil
• Display cleaning cloth
• Safety Instructions
• Quick Start Manual

Largest stockist of explosion proof in Abu Dhabi, Dubai, UAE, Iraq, Saudi Arabia, Kuwait, Oman.

The IS520.1 is an industrial smartphone with current technology. It combines modern design, updated technology and robustness of an industrial product.

ADVANTAGES

• AndroidTM 7.1
• 4G (LTE)
• Bluetooth® 4.1 LE
• Near Field Communication
• 4,5“ (11.43 cm)
• Capacitive touchscreen
• 2 cameras: 8 MP rear camera with autofocus and 2 MP front camera
• MicroSD-card slot up to 32 GB
• quick charge
• optional: Lone Worker Protection & Push to Talk (application of another provider needed)

APPROVALS

• ATEX zone 1/21
  II 2G Ex ib IIC T4 Gb
  II 2D Ex ib IIIC T135°C Db IP64

• IECEx zone 1/21
  Ex ib IIC T4 Gb
  Ex ib IIIC T135°C Db IP64
• EAC
  (approved for Russia)
  1Ex ib IIC T4 GB X
  Ex ib IIIC T135°C Db X
  IP 64
• CSA
  (approved for North America)
  Class I Division 1, Groups A, B, C, D, T4
  Class II Division 1, Groups E, F, G
  Class III Division 1
• INMETRO
  (approved for Brazil)
  Ex ib IIC T4 Gb
  Ex ib IIIC T135°C Db IP6X

The powerful mobile phone for zone 1/21 with Android operating system. The rugged key-operated phone providesmany technical advantages: Wi-Fi, Android, NFC, Micro SIM, LEDtorch, strong battery, amplified loudspeaker and SOS button.

ADVANTAGES

• AndroidTM 4.4
• 3G (GSM/WCDMA)
• Bluetooth 4.0
• Near Field Communication
• 4“ (6.1 cm) RugDisplay-Glass
• with a resolutionof 240 x 320 pixel
• camera: 2 MP rear camera
• external memory micro SD up to 32 GB
• SOS button with emergencycall functionality
• optional: Lone Worker Protection & Push to Talk (application of another provider needed)

APPROVALS

• ATEX zone 1/21
  II 2G Ex ib IIC T4 Gb
  II 2D Ex ib IIIC T135°C Db IP64

• IECEx zone 1/21
  Ex ib IIC T4 Gb
  Ex ib IIIC T135°C Db IP64
• EAC
  (approved for Russia)
  1Ex ib IIC T4 GB X
  Ex ib IIIC T135°C Db X
  IP 64
• CSA
  (approved for North America)
  Class I Division 1, Groups A, B, C, D, T4
  Class II Division 1, Groups E, F, G
  Class III Division 1

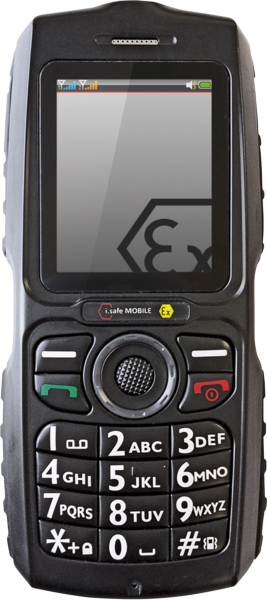

The CHALLENGER 2.0 is a rugged dust and water proof industrial mobile phone. It is designed for use under extreme conditions.

• Easy handling and long battery life time offer best comfort.
• LED torch is an useful feature for tough environments.
• The phone can be used with gloves.
• Available as CHALLENGER 2.1 without a camera

ADVANTAGES

• Rugged Phone
• Long battery life time
• LED torch
• Loud ring tone and bright display
• Dust and water proof (IP68)

CERTIFCATION

• ATEX Zone 2/22
  II 3G Ex ic IIC T4 Gc IP54
  II 3D Ex
