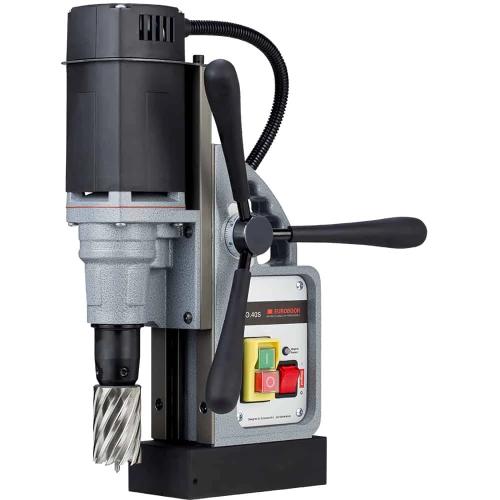

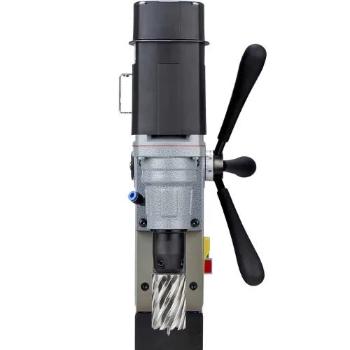

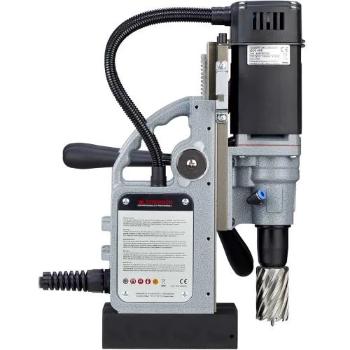

- Lightest Ø 40 mm Magnetic Drilling Machine
- Fits cutters up to 110 mm DoC
- High Efficiency motor with less heath generation
- High accuracy capstan hub
- Direct spindle drive and integrated tool cooling and lubrication
- Integrated slide and one-speed oil lubricated gearbox for:
- High accuracy
- Enlarged lifecycle
- Minimal vibration
- High precision height adjustment for:
- Low maintenance
- Minimal wear correction
- Strong dual coil CNC machined magnet

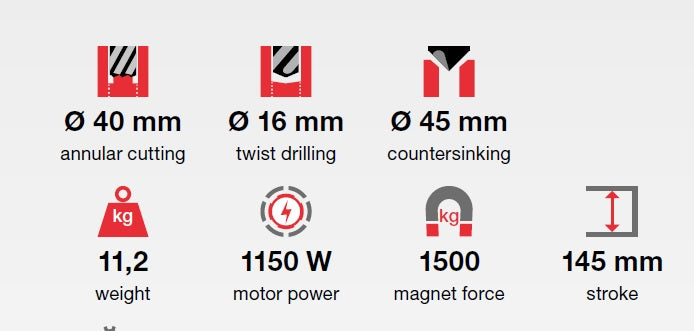

| Technical data |
|
| Annular cutting |
Ø 12 - 40 mm |
| Twist drilling |
Ø 1 - 16 mm |
| Countersinking |
Ø 10 - 45 mm |
| Length |
264 mm |
| Width |
180 mm |
| Height |
360 - 440 mm |
| Stroke |
145 mm |
| Weight |
11,2 kg |
| Magnet (l x w x h) |
160 x 80 x 42 mm |
| Magnetic force |
1500 kg |
| Motor power |
1150 W |
| Total power |
1200 W |
| Speed (no load) |
600 rpm |
| Speed (load 1150 W) |
380 rpm |
| Spindle (Weldon) |
19,05 mm |
| Voltage |
110- 120 V / 60 Hz |
| 220 - 240 V / 50 - 60 Hz |
