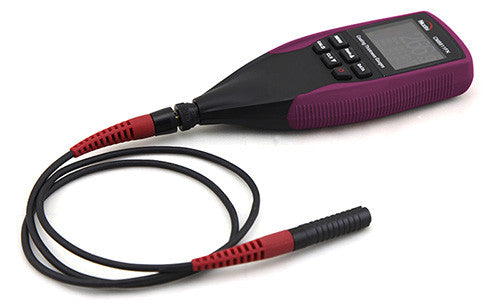

CM8811FN Coating Thickness Gauge

Overview
Coating Thickness Gauge CM8811FN is a highly intelligent and precise instrument used to quickly and accurately measure thickness of coating or plating on almost all kinds of metal surface.
It not only indicates thickness of coating or plating but also automatically identifies the base material.
It is applicable to measure non-magnetic painting, ceramic, enamel, plastic, rubber coating on magnetic base materials such as iron and steel , non- ferrous metal plating such as nickel & chromium, anticorrosive coating, non- conductive painting, plastic coating and anodic oxide film on non-magnetic conductive devices.
Function:
Measuring: Continuous and Single Measurement available

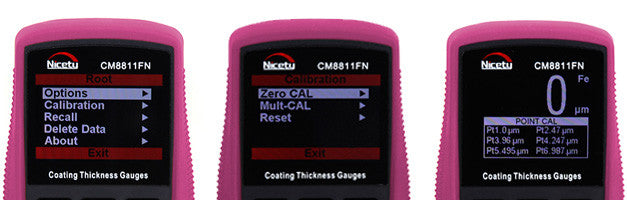

Display: Simultaneously display Measuring Value, Average Value, Maximum Value, Minimum Value and Standard Deviation
Memory: 50 data store
Unit: Metric/Imperial switchable (mil/um selectable)
Back light:  Brightness adjustable, clear and easy reading under any light condition
Alarm: Set higher and lower alarm range for measuring
Calibration: Zero-in, 2 points calibration and multi-point calibration selectable
Battery: Low battery indication
Language: English (customization for other languages available)
Data Delete: delete a single data or clear all the data
Specification
Range: 0-1250μm /0-50mil
Resolution: 0.1μm/mil
Accuracy: ±(2%+2μm) / ±(2%+0.1mil)
Display: TFT 320*240 LCD
Test Limits:
       Surface curvature: convex 1.5 mm / concave 7 mm
       Minimum test surface: Φ8mm
       Minimum thickness of base material: 0.4mm
Operation Condition(not in high magnetic field):Temperature: 0℃~40℃
Humidity: 20%RH-90RH
Product Size: 166 x 68 x 30mm
Weight: 180g (batteries included)
Standard Individual Packing:Fe / NFe probes.Set of plastic test shims and 2 reference calibration plates (Steel and Aluminum).Hard shell storage case.Instruction manual.
Standard Quantity Per Carton:30PCS
Standard Carton Measurement:48.5*58.5*26mm
Standard Carton Gross Weight: 14.8kg
