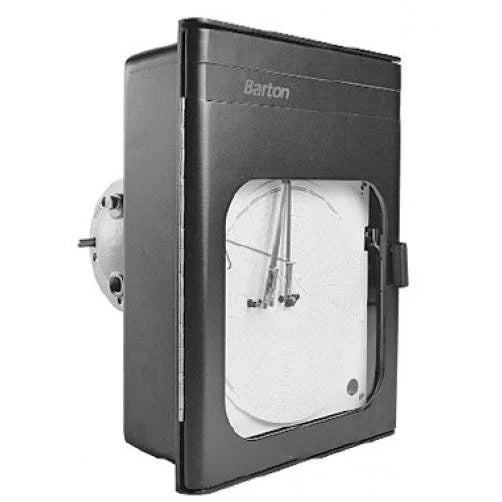

BARTON Chart Recorders
Industry-standard mechanical chart recorders for pressure, differential pressure and temperature measurement. Engineered for gas transmission, oil & gas, water and offshore applications — including NACE-compliant models for H₂S sour gas environments.
Model Range Overview
Widely used in gas transmission and distribution. Accurate calibration under extreme variations in static pressure and ambient temperature.
Available in 1 to 4 pen configurations (DP + up to 3 additional pens for temperature and supplemental pressure). Actuated by BARTON Model 199 DPU.
SWP: Up to 6000 psi (414 bar) | Accuracy: ±0.5% F.S.
Designed for sour gas applications. Fully NACE compliant per MR-01-75 (1991 Revision) for H₂S environments. Uses K-monel element and BARTON M199 NACE DPU.
For SWP ranges between 2000 psi and 4500 psi, refer to the optional NACE version of M202E.
SWP: Up to 2000 psi (138 bar) | Accuracy: ±0.5% F.S.
12-inch chart recorder for temperature and pressure measurement in general industrial pressure applications.
Suitable for a wide range of process industries requiring combined pressure and temperature recording on a single circular chart.
Pressure: Up to 30,000 psi (2068 bar) | Accuracy: ±1.0% F.S.
Compact 8-inch chart recorder for temperature and pressure measurement where space is restricted. Available in single or dual pen — any combination of pressure helical elements or temperature thermal systems.
Dimensions: 10.5" W × 13.75" H × 4.625" D | Pressure: Up to 30,000 psi
Product Overview
What It Is
Cameron BARTON chart recorders are mechanical instruments for the continuous measurement and recording of pressure, differential pressure (DP), and temperature on 12-inch or 8-inch circular charts. All models use precision wound mechanical elements, stainless steel recording mechanisms, and NUFLO™ wood-free, low-shrinkage chart paper for reliable, accurate process records.
Who Uses It
Commonly specified by instrumentation engineers, process engineers, pipeline operators, and facility managers in oil & gas, gas transmission, petrochemical, water utilities, and offshore industries. Procurement teams across the UAE, Saudi Arabia, Iraq, Qatar, Kuwait, Nigeria, Kenya, South Africa, Egypt, Tanzania and Ghana rely on BARTON recorders for field instrumentation projects.
Where It Is Used
Designed for gas transmission and distribution pipelines, wellheads, sour gas facilities (NACE model), offshore platforms, refineries, water distribution networks, and industrial process plants. Suitable for indoor control panels and outdoor field installations — with optional stainless steel or offshore-coated cases for harsh, saltwater environments.
Technical Specifications
Common Components — All Models
| Component | Specification |
|---|---|
| Case Material | Die-cast aluminium, polyurethane electrostatic powder paint — high resistance to weathering, scratches and industrial fumes. Optional stainless steel or offshore corrosion-resistant coating available. |
| Door Hinge | Aircraft-type hinge (302 SST) — excellent resistance to salt spray and H₂S |
| Door Seal | Neoprene — non-absorbent, resistant to oils and most solvents |
| Chart Size | 12-inch (Models 202E, 202N, 242E) / 8-inch (Model J8A) |
| Charts (NUFLO™) | Wood-free, low-shrinkage paper — eliminates eccentric and elliptical errors. Shrink-wrapped to maintain factory default size. Resealable storage bag supplied. |
| Chart Drive | Battery and spring-wound versions available. Wide variety of chart speeds. Simple positive chart lock hub — all drives interchangeable. |
| Recording Mechanism | All stainless steel construction. Rugged pen mount with ball pivot shafts to minimise friction. Micrometer adjustable links for accurate calibration. Disposable pens standard. |
| Pen Configurations | Model 202E: 1 to 4 pens (DP + up to 3 additional). Model J8A: Single or dual pen. All others: as specified. |
Model-by-Model Specifications
| Specification | 202E (DP) | 202N (NACE DP) | 242E (Temp/Press) | J8A (Compact) |
|---|---|---|---|---|
| Chart Size | 12 inch | 12 inch | 12 inch | 8 inch |
| Safe Working Pressure | Up to 6000 psi (414 bar) | Up to 2000 psi (138 bar) | — | — |
| Pressure Element Range | Up to 30,000 psi (2068 bar) | Up to 6000 psi (K-monel) | Up to 30,000 psi (2068 bar) | Up to 30,000 psi (2068 bar) |
| DP Range | Up to 100 PSID (6.9 bar) | Up to 100 PSID (6.9 bar) | — | — |
| Accuracy | ±0.5% F.S. | ±0.5% F.S. | ±1.0% F.S. | ±1.0% F.S. |
| Temperature Limits | -40°F to 180°F (-40°C to 82°C) | -40°F to 180°F (-40°C to 82°C) | -40°F to 180°F (-40°C to 82°C) | -40°F to 180°F (-40°C to 82°C) |
| NACE Compliant | Optional NACE version available | Yes — MR-01-75 (1991) | — | — |
| Actuating Unit | BARTON Model 199 DPU | BARTON M199 NACE DPU | Precision wound elements | Helical elements / thermal systems |
Pressure Elements
| Parameter | Details |
|---|---|
| Type | Precision wound helical — available in a variety of materials (Models 202E, 242E, J8A) |
| Low Pressure Range | Up to 30" mercury vacuum (up to 14.7 psi / 1 bar) |
| High Pressure Range | Up to 30,000 psi (up to 2068 bar) |
| Model 202N Element | K-monel element — ranges up to 250 psi (17 bar) through to 6000 psi (414 bar) |
| Process Connection (standard) | 1/4" NPT for ranges below 10,000 psi (689 bar) |
| Process Connection (high pressure) | Aminco 9/16-18 (1/4" ODT) female — for ranges above 10,000 psi (689 bar) |
Thermal Systems (Temperature)
| Class | Type | Temperature Range | Fill Material |
|---|---|---|---|
| Class VA | Mercury fill, 11/16" OD bulb — Fully compensated | -40°F to 600°F (-40°C to 315°C) | Mercury |
| Class VB | Mercury fill, 11/16" OD bulb — Case compensated | -40°F to 600°F (-40°C to 315°C) | Mercury |
| Class IA | Hydrocarbon fill, 3/8" OD bulb — Fully compensated | Varies with fill (see below) | Ethyl-benzene / Kerosene / Alcohol |
| Class IB | Hydrocarbon fill, 3/8" OD bulb — Case compensated | Varies with fill (see below) | Ethyl-benzene / Kerosene / Alcohol |
| Ethyl-benzene (IA/IB) | — | -125°F to 350°F (-87°C to 177°C) | Ethyl-benzene |
| Kerosene (IA/IB) | — | -20°F to 500°F (-29°C to 260°C) | Kerosene |
| Alcohol (IA/IB) | — | -200°F to 150°F (-129°C to 66°C) | Alcohol |
| Thermal Accuracy | ±1.0% of Full Scale | ||
| Capillary — Standard Length | 10 ft (additional lengths available). Stainless steel armoured capillary with bourdon tube and bendable bulb extension. | ||
| Thermal System Requirement | Span must exceed 50°F (27°C). High temperature limit must be above 95°F (35°C). | ||
Physical Dimensions — Models 202 & 242
| Dimension | Measurement |
|---|---|
| Overall Height | 20.625" (52 cm) |
| Overall Width | 14.500" (37 cm) |
| Overall Depth | 19.250" (49 cm) |
| Chart Centre Height | 18.250" (46 cm) |
| Pipe Centre Width | 9.625" (24 cm) |
| Weight (M242E / J8A) | Approx. 25 lb (11 kg). SST versions: add 10 lb (6 kg). |
Model J8A — Physical Dimensions
| Dimension | Measurement |
|---|---|
| Overall Width | 10.5" |
| Overall Height | 13.75" |
| Overall Depth | 4.625" |
| Case Thickness | 3 inches |
| Door Window | 8" square glass, Plexiglas (Lexan), or 16-gauge steel plate (solid door option) |
| Gasket | Closed cell neoprene |
Key Features & Benefits
| Feature | Benefit |
|---|---|
| Rugged Die-Cast Aluminium Case | Built-in rainshield and high-resistance polyurethane powder coat — suitable for outdoor, coastal, and industrial environments across the Middle East and Africa |
| Aircraft-Type SST Door Hinge | Excellent H₂S and salt spray resistance — critical for offshore platforms and sour gas facilities in Saudi Arabia, Iraq, and Nigeria |
| NACE Compliant Model (202N) | Purpose-built for H₂S sour gas applications — meets MR-01-75 (1991) requirements, reducing procurement risk on NACE-specified projects |
| 1 to 4 Pen Configurations (202E) | Record DP, static pressure, and temperature simultaneously on one chart — reduces instrument count on pipeline and wellhead installations |
| BARTON Rupture-Proof Bellows DPU | Overrange protection and pulsation dampening on DP models — protects the instrument against process upsets and pressure spikes |
| NUFLO™ Low-Shrinkage Charts | Eliminates eccentric and elliptical errors from chart paper expansion — improves accuracy of recorded data in variable temperature field conditions |
| Interchangeable Chart Drives | Battery and spring-wound drives with multiple chart speeds — configure monitoring duration to match operational requirements without replacing the recorder |
| All-SST Recording Mechanism | Long service life with micrometer-adjustable links for accurate field calibration — reduces maintenance downtime and recalibration cost |
| Wide Pressure Range | From vacuum (30" Hg) to 30,000 psi — a single product family covers wellhead, pipeline, utility, and ultra-high-pressure applications |
| Optional Offshore Case | Stainless steel or corrosion-resistant offshore coating available — specified for saltwater, coastal and platform environments |
Applications by Industry
| Industry | Typical Use Case |
|---|---|
| Gas Transmission & Distribution | DP and static pressure recording on transmission pipelines using Model 202E — widely used across Saudi Arabia (Aramco pipelines), Iraq (SOMO), UAE (ADNOC gas grid) and Nigeria (NNPCL) |
| Sour Gas / H₂S Environments | Model 202N for NACE-compliant pressure and DP recording at sour gas wellheads and processing facilities in Saudi Arabia, Kuwait, and Iraq (Basra) |
| Oil & Gas — Wellhead | Pressure and temperature recording at wellheads and Christmas trees — Models 242E and J8A for combined measurement on single charts |
| Offshore Platforms | Differential pressure and temperature monitoring using stainless steel case variants — suitable for offshore facilities in Oman, Qatar, and offshore Nigeria |
| Refining & Petrochemical | Process stream pressure and temperature recording in refineries across Dammam, Jeddah, Basra, and Lagos — supports process compliance and maintenance records |
| Water & Utilities | Mains water pressure recording and distribution network monitoring for water utilities in Egypt (Cairo), Kenya (Nairobi), South Africa (Johannesburg), and Tanzania |
| Industrial Process Plants | General pressure and temperature chart recording in manufacturing, chemical, and food processing facilities |
| Pipeline Commissioning | Hydrostatic test pressure recording during pipeline commissioning and pressure testing across MENA infrastructure projects |
Mounting Options & Ordering
Available Mounting Configurations
| Mounting Type | Description |
|---|---|
| Panel Mount | Flush panel mounting for control room and cabinet installations |
| Wall Mount | Standard wall mounting for field buildings and substations |
| Pipe Mount | Slip-on, non-thread pipe mount for 1.5" or 2" standard pipe — common on field wellhead and pipeline installations |
| Portable Stand | Portable stand with handle — suitable for temporary monitoring and commissioning work |
| Wall Shock-Mount Kit | Shock-absorbing wall mount for high-vibration environments |
Required Ordering Information
| Item | Details Required |
|---|---|
| Model Number | 202E / 202N / 242E / J8A |
| Housing Pressure Rating (SWP) | DPU models only |
| Housing & Bellows Materials | DPU models only — specify for process compatibility |
| Process Material (Bellows) | DPU models only — fluid contacting bellows |
| DP Range | DPU models only |
| Pressure Elements | Range and material required |
| Pens | Disposable pens — number of pens and type |
| Chart Drive | Type (battery/spring-wound) and rotation speed |
| Thermal Systems | Temperature range, capillary length, and compensation class |
| Mounting | Pipe / wall / flush panel / portable / shock mount |
| Charts | NUFLO™ chart type and quantity |
