Hydraulic Bolt Tools & Torque Wrenches Dubai UAE
⚙ ISO 9001 Certified Manufacturer — Hydraulic Bolting Solutions

Hydraulic Bolt Tools &
Torque Wrenches

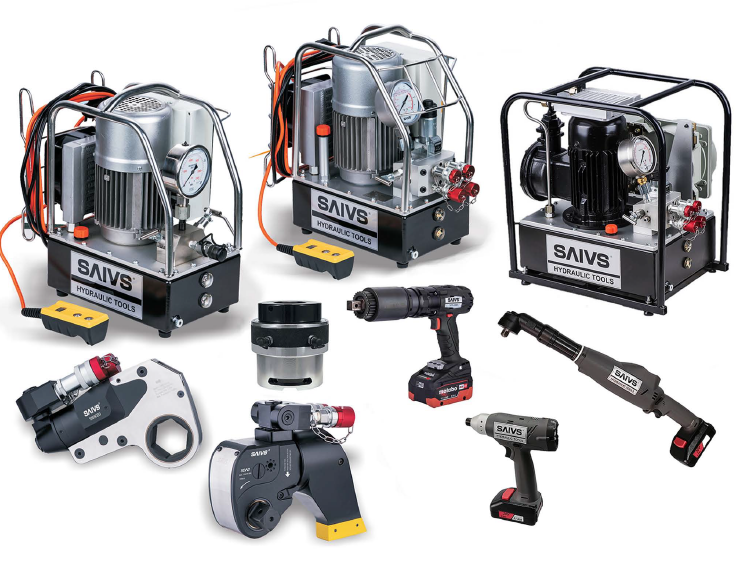

A complete range of professional hydraulic bolting tools — torque wrenches, bolt tensioners, electric and pneumatic pump stations, battery and electric torque wrenches, hand multipliers, and high-pressure hoses. Engineered for controlled tightening in oil & gas, petrochemical, power, offshore, and structural applications across the Middle East and Africa.

⚡ Up to 47,245 Nm ✓ Hydraulic Torque Wrenches ✓ Bolt Tensioners ✓ Electric Torque Wrenches ✓ Battery Torque Wrenches ✓ Pneumatic Torque Wrenches ✓ Hydraulic Pump Stations ✓ 700 bar Max. Pressure ✓ Accuracy ±3% ✓ ATEX / Anti-Explosion Options
47,245
Max Nm Torque
700
Max Bar Pressure
±3%
Torque Accuracy
3,447
Max KN Tensioner
ISO
9001:2008 Certified
30+
Tool Series
01

Product Overview

Joint Assembly

From simple pipe alignment to complex joint positioning of large structural assemblies — hydraulic and mechanical torque wrenches, PLC-controlled multi-point tightening systems, and electric/battery torque wrenches for precise controlled bolt tightening across all applications.

Controlled Tightening

Manual torque multipliers, pneumatic torque wrenches, electric torque wrenches, and a full range of hydraulic torque wrenches — from hand-held battery tools for light work to heavy-duty hydraulic wrenches up to 47,245 Nm for large structural and flange bolting.

Joint Separation

Hydraulic nut splitters and a variety of mechanical and hydraulic spreading tools for joint separation operations — used for maintenance, turnaround, and decommissioning work on flanged joints, structural connections, and process plant equipment across the oil & gas and petrochemical sectors.

02

Hydraulic Torque Wrenches

💡 How to Select the Right Hydraulic Torque Wrench

1
Determine your required bolt tightening torque (Nm or Ft.lbs) — refer to your bolting specification or torque recommendation table based on bolt size and grade.
2
Measure the nut across-flats (mm) to confirm the hexagon size — this determines whether you need a low profile hexagon wrench or a square drive wrench with impact socket.
3
Check available working space — low profile wrenches are designed for confined spaces where standard wrenches cannot fit.
4
Select the matching pump station (electric, pneumatic, or gasoline) based on your available power supply and number of wrenches to operate simultaneously.

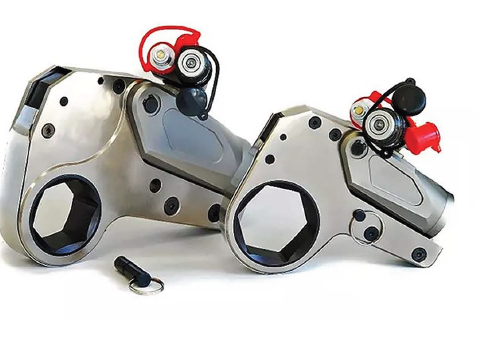

Low Profile Hexagon Hydraulic Torque Wrench

SHW Series
2,349 – 38,463 Nm Hex 19–155 mm 700 bar ±3% Accuracy

Ultra-slim low profile cassette design for tight spaces. Interchangeable hexagon cassettes and reducers — no tools required. 360°×180° swivel manifold. Full range: SHWD10 to SHWD60. Suitable for flanges, pipe connections, and structural bolting where clearance is limited.

Square Drive Hydraulic Torque Wrench

SDW Series
1,803 – 47,245 Nm 3/4"– 2-1/2" Drive 700 bar ±3% Accuracy

Compact aircraft alloy body. 360° reaction arm with dual rotation direction. High cycle life — 2-3× longer than competing technology. Anti-reverse pawl for improved preload accuracy. Impact sockets available for all nut sizes. Models SDW1 to SDW8.

Low Profile Hydraulic Torque Wrench

SOW / SGH Series
232 – 30,408 Nm Hex 19–175 mm 700 bar ±3%

SOW series: aluminium-titanium alloy body, minimum wall thickness operation, pressure relief valve, rust-resistant finish. SGH series: flat design with consistent power head thickness, 360°×180° swivel, 5 models covering 314–30,408 Nm. Direct-on-nut operation for higher accuracy.

Square Drive Hydraulic Torque Wrench

SBT / AVANTI Series
112 – 72,000 Nm 3/4"– 2-1/2" Drive 700 bar ±3%

SBT: 360° reaction arm, click-on change, 360×180° swivel hose, anti-lock switch, drop-hole over-pressure protection. AVANTI: patented reaction drive technology eliminates torsion risk, high-accuracy torque angle display, wide configuration options. Models from 07-SBT to 50-SBT.

Backup Wrenches

BW Series
Up to 37,962 Nm AF 30–145 mm 1-1/4" – 5-3/4" AF

Simplest and most efficient solution for preventing nut counter-rotation. Patented embedded magnet technology for hands-free operation. Low profile design prevents rotation on the opposing stud side. Safety splint lock mechanism. Available M30–M145 metric and imperial. Color coated surface.

Hand Torque Multiplier

SNF Series
1,500 – 20,000 Nm Ratio 1:4 – 1:76 ±5% Accuracy AF S30–145

Precision planetary gear torque multiplier. Anti-returning device prevents back-drive. Reversible bar and button switching. One operator applies 4–28× output torque. Pre-settable matching torque wrench emits audible click at target torque. Available with integrated or split reaction arm.

03

Electric, Battery & Pneumatic Torque Wrenches

Hand-Held Servo Electric Torque Wrench

SAT / SAT-TC
80 – 10,000 Nm 0.75"– 2" Drive ±3% 2–47 RPM

CNC-controlled digital display, 10-gear quick adjustment, torque/angle/yield limit control methods, wireless function, USB storage, MODBUS/PROFIBUS support. SAT-TC variant supports 32–256 connection nodes and MES system integration for automated assembly lines.

Battery Powered Brushless Torque Wrench

SCW-A / SCW-R
200 – 8,000 Nm 0.75"– 1.5" Drive ±4% 1.1–6.5 RPM

Brushless motor — no carbon brush replacement. Digital LCD display, 1–99 gear adjustment, 10 preset torques, overload limit, temperature monitoring, fast charge battery. SCW-R adds optional corner + angle mode, planetary gear auto-shifting. Metric and imperial support.

Electric Torque Wrench

SM-A / SM-AD
240 – 12,000 Nm 0.75"– 2" Drive ±5% CNC Board

CNC target torque setting with digital display, 10-gear adjustment, voltage regulator unit, power grid fluctuation compensation. SM-AD elbow CNC variant adds planetary gear reduction, color control panel, ±2% precision, pass/fail monitoring output. Models from SM-8A (240 Nm) to SM-120A (12,000 Nm).

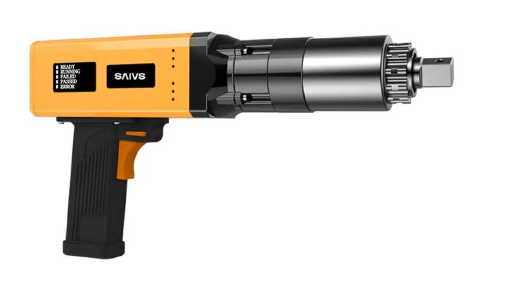

Pneumatic Torque Wrench

SFW-A Series
240 – 8,000 Nm 0.75"– 1.5" Drive ±4% 18–22 RPM

Gun-type pneumatic tightening wrench. Standard pneumatic motor with high precision planetary gear box. Multi-pole gearbox for high reliability. Low noise, non-impact output torque. Forward and reverse rotation. Ideal for high efficiency maintenance and production line applications.

Cordless Battery Torque Wrench

SCW-P / SCW-L
3 – 60 Nm 1/4" Hex / 3/8" Sq 5.0Ah Li-Ion 1.01 kg

Ultra-lightweight at 1.01kg with 5–16 Nm range (SCW-P). SCW-L right-angle battery torque wrench for cramped spaces where pneumatic or electric tools are impractical — ISO 5393 CMk>1.67 ±10% accuracy. 5.0Ah Li-ion battery for extended run time without memory effect.

Torque Socket with Built-in Sensor

SE Series
200 – 16,000 Nm 1"– 2" Drive ±2% Accuracy Bluetooth

Patented integrated torque sensor — measures actual torque in real-time during tightening without changing conditions. LCD display, Bluetooth APP software for Android, Windows platform torque statistics, USB data logging. Records 100,000 data sets. Bolts M22–M60 coverage.

04

Hydraulic Bolt Tensioners

Hydraulic Bolt Tensioners — Spring Reset

SRT Series
160 – 3,200 KN M20–M100 / 3/4"–4" 10mm Stroke 1,500 bar

Interchangeable, spring reset design. Piston stroke 10mm. Max tool pressure 21,750 psi (1,500 bar). Bolt protrusion above nut = 1× bolt diameter. Load cells SRT0–SRT7 with interchangeable adapter kits for full bolt range coverage. Product development ongoing — dimensions may change.

Hydraulic Bolt Tensioners — Gravity Reset

MRT Series
280 – 3,200 KN M24–M100 / 1"–4" 15mm Stroke 1,500 bar

Interchangeable type with gravity restoration. Unique quick-release bridge adaption. Designed to fit BS1560/ANSI B16.5/API flanges. Piston cylinder misalignment compensation. Bolt coverage from 25mm to 89mm with 6 tools. Multiple simultaneous connection for synchro-draw tightening.

Subsea Stud Bolt Tensioners

SST Series
140 – 3,447 KN M24–M100 / 1"–4" 30mm Stroke 1,500 bar

Quick reaction nut reduces diver fatigue. Positive 'over-stroke' stop prevents piston expulsion. Visible piston stroke indication. Piston/cylinder misalignment compensation. Anti-slip cylinder surface. Low friction seals. Anti-corrosion coating. Designed for BS1560/ANSI B16.5/API flanges and compact flange designs.

Bolt Tensioners for Wind Turbines

TW Series
465 – 2,221 KN M30–M64 8–10mm Stroke 1,500 bar

Lightweight compact structure for small-space wind turbine flange operations. Special steel body with advanced surface treatment — perfect rust and corrosion resistance. Double stage cylinder increases stretching length. Automatic retraction for heavy-duty purpose. Rated working pressure 1,500 bar.

05

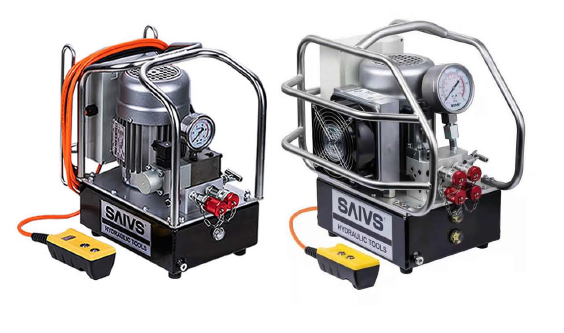

Hydraulic Pump Stations

Pump Series Summary

Series Type Max Pressure Flow @ Rated Pressure Oil Capacity Best For
SWP5000 / SWP1000 Electric Hydraulic 700 bar 0.28–0.85 L/min 5 L Standard hydraulic torque wrenches — single phase 110V or 220V
SWP8000 Electric Large Flow 700 bar 1.7 L/min 10 L Multiple simultaneous wrenches — three phase 220–575V
SPA-70 Air Driven 700 bar 0.85 L/min 5 L Explosion-proof / no electrical supply — air input 4-8 bar
SFBP400 Anti-Explosion Electric 700 bar 0.85 L/min 14 L Hazardous areas — EXDIICT4 certified, three phase 380V
SWPG5000 Gasoline Engine 700 bar 0.5 L/min 10 L Remote field locations — no power supply
SPAT / PTE / PTEA Ultra High Pressure 1,500–2,800 bar 0.3–0.57 L/min 5–6 L Bolt tensioner operation — air, electric, or automatic
PTA / PTG Pneumatic / Gasoline UHP 1,500 bar 0.37 L/min 5–10 L Bolt tensioners — hazardous or remote locations
SPS16 Lightweight Hand Pump 1,600 bar 2.5 cm³/stroke 1,440–3,240 cm³ Portable tensioner operation — two speed, safety valve
Electric — Single & Three Phase
Air Driven — Explosion Proof
ATEX / EXDIICT4 Anti-Explosion
Gasoline Engine — Remote Sites
Ultra High Pressure — 1,500–2,800 bar
Auto Cut-Off & Decompression
Multi-Wrench Manifold Option
06

Applications by Industry

Industry Typical Application Recommended Tool
Oil & Gas — Pipelines Flange bolt tightening on pipeline tie-ins, valve flanges, and wellhead connections across UAE (ADNOC), Saudi Arabia (Aramco), Iraq (Basra), and Nigeria (NNPCL) SHW Low Profile Hexagon Wrench + SWP Electric Pump
Petrochemical Plants Controlled torque tightening on process vessel flanges, heat exchanger covers, and pressure vessel assemblies during turnaround maintenance SDW Square Drive Wrench + SWP8000 Large Flow Pump
Offshore Platforms Flange bolting on topside piping and subsea equipment — explosion-proof pump mandatory in hazardous zones across Arabian Gulf, offshore Nigeria, and offshore Oman SST Subsea Tensioner + SPA Air Pump or SFBP ATEX Pump
Power Generation Turbine casing bolt tightening, generator flange assembly, and boiler flange maintenance at power plants across Egypt, Kenya, Nigeria, and South Africa SRT Bolt Tensioner + PTE Ultra High Pressure Pump
Wind Energy Tower flange bolt tensioning and hub bolt tightening for wind turbine installation and maintenance — requiring precise simultaneous multi-bolt tightening TW Wind Turbine Tensioner + PTE or SPAT Pump
Structural Steel High-strength structural bolt tightening on bridges, industrial buildings, and offshore jacket structures across the GCC and Africa SAT Electric Torque Wrench or SCW Battery Torque Wrench
Shipbuilding & Marine Engine room flange bolting, shaft coupling assembly, and structural connection tightening in UAE shipyards and South Africa dry docks SDW or SBT Hydraulic Torque Wrench
Mining Mill bolting, crusher assembly, and heavy equipment maintenance at mining operations in South Africa, Ghana, and Kenya SNF Hand Torque Multiplier or SHW Hexagon Wrench
07

Frequently Asked Questions

What is the difference between a hydraulic torque wrench and a bolt tensioner?
A hydraulic torque wrench applies controlled rotational torque to a nut — tightening by turning the fastener. It is the standard method for most bolting applications and is limited in accuracy by friction at the nut/flange interface. A bolt tensioner stretches the bolt axially in direct tension using hydraulic pressure, then the nut is run down hand-tight before the pressure is released — leaving the bolt in a defined clamp load. Tensioning is significantly more accurate than torquing, as it eliminates the friction variable entirely. Tensioners are preferred for critical applications including pressure vessel flanges, wind turbine towers, subsea equipment, and API flange connections.
What hydraulic pump is needed to operate a hydraulic torque wrench?
Hydraulic torque wrenches require a pump capable of delivering 700 bar (10,000 PSI) operating pressure. The correct pump selection depends on your power supply and application: SWP electric pumps (single phase 110-240V or three phase 220-575V) for standard site use; SPA air-driven pump (4-8 bar air input) for explosion-proof and remote use; SFBP anti-explosion pump (EXDIICT4 certified) for ATEX hazardous zones; SWPG gasoline pump for locations with no electrical or air supply. For simultaneous operation of multiple wrenches, the SWP8000 large flow pump is recommended.
What torque range is available and how do I select the right wrench?
The range covers 112 Nm to 47,245 Nm across all tool families. To select the correct wrench: (1) Determine required torque from your bolting specification or use the torque recommendation table based on bolt size and strength grade. (2) Measure nut across-flats in mm. (3) Check available working space — choose low profile hexagon (SHW/SOW/SGH) for confined spaces, or square drive (SDW/SBT/AVANTI) for open access. (4) Select loosening torque capacity at 150% of tightening torque to account for rusted or seized fasteners. Contact us with your bolt specification and we will confirm the correct model selection.
Are ATEX or explosion-proof hydraulic bolt tools available?
Yes. For hazardous area and ATEX-classified zones: the SFBP series anti-explosion electric hydraulic pump is EXDIICT4 certified with a three-phase brushless motor and built-in electronic control system. The SPA series air-driven pump requires no electrical components at all and is inherently explosion-proof. Both are widely used for flange bolting on offshore platforms, oil & gas processing facilities, and petrochemical plants in hazardous zones across the Arabian Gulf, offshore Nigeria, and the wider MENA region.
How can I get pricing for hydraulic bolt tools in UAE, Saudi Arabia, Qatar or Africa?
Global Hardware & Tools LLC supplies hydraulic torque wrenches, bolt tensioners, electric torque wrenches, battery torque wrenches, and hydraulic pump stations across the Middle East — UAE (Dubai, Abu Dhabi), Saudi Arabia (Riyadh, Jeddah, Dammam), Qatar (Doha), Oman (Muscat), Kuwait, and Iraq (Baghdad, Basra) — and across Africa including Nigeria (Lagos), Kenya (Nairobi), South Africa (Johannesburg), Ghana (Accra), Egypt (Cairo), Tanzania, and Uganda.

For pricing, send us your: required torque (Nm), bolt size (M or inch), nut across-flats (mm), available power supply, and quantity:

📲 WHATSAPP FOR BEST PRICING — +971 55 697 6535

Regional Supply — Middle East & Africa

Global Hardware & Tools LLC is a Dubai-based industrial equipment supplier with over 30 years of experience serving oil & gas, petrochemical, power generation, offshore, and construction sectors. We supply a complete range of hydraulic bolt tools — hydraulic torque wrenches, bolt tensioners, electric torque wrenches, battery torque wrenches, pneumatic torque wrenches, hydraulic pump stations, hand torque multipliers, torque sockets, backup wrenches, and high-pressure hoses — across the Middle East, including UAE (Dubai, Abu Dhabi), Saudi Arabia (Riyadh, Jeddah, Dammam), Qatar (Doha), Oman (Muscat), Kuwait, and Iraq (Baghdad, Basra, Erbil).

We also support export supply across Africa, including Nigeria (Lagos, Abuja), Kenya (Nairobi), South Africa (Johannesburg, Cape Town), Ghana (Accra), Egypt (Cairo, Alexandria), Tanzania (Dar es Salaam), and Uganda.

View Our Global Service Network (MENA & Africa)
UAE & QatarDubai, Abu Dhabi (UAE).
Doha, Ras Laffan (Qatar).
Saudi ArabiaRiyadh · Jeddah · Dammam.
Khobar · Jubail · Yanbu.
GCCMuscat (Oman).
Kuwait City (Kuwait).
Manama (Bahrain).
Iraq & LevantBaghdad · Basra · Erbil (Iraq).
Amman (Jordan).
North AfricaCairo, Alexandria (Egypt).
Algiers · Casablanca.
West & East AfricaLagos · Abuja (Nigeria).
Nairobi (Kenya) · Dar es Salaam (Tanzania).
Accra (Ghana) · Uganda.
Southern AfricaJohannesburg · Cape Town (South Africa).
