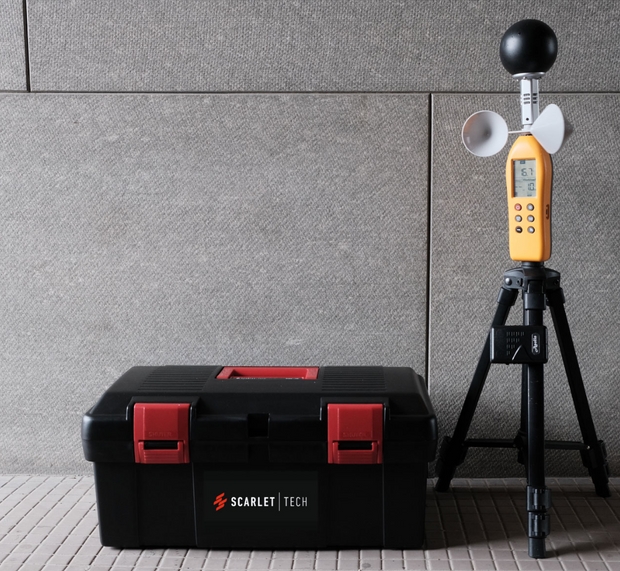

HEAT STRESS METER TWL-1S SCARLET UAE
HEAT STRESS METER TWL-1S SCARLET UAE
Couldn't load pickup availability
The Heat Stress Meter TWL-1S has been tested and validated by Health Authority – Abu Dhabi in the extreme high temperature and high humidity Gulf region as well as the mines in Australia. The TWL algorithm used by TWL-1S device is the latest version attested by the research team in Curtin University, Australia.
Scenario
Risk assessment for heat-related illness in the worksite is quite essential in high temperature environments. TWL-1S can be applied at outdoor and indoor working environments. For instance, a health and safety officer can place the TWL-1S at the “hot spot” zone in worksite and continuously monitor environmental parameters. With 200 meters transmission distance of wireless signal, the paging system can actively warn safety officers in real time. TWL-1S is able to help managers set work/rest cycle and hydration plans for workers.
-
Measurement
Wet Bulb Globe Temperature (WBGT) - Thermal Work Limit (TWL)
- Globe Temperature
- Dry Bulb Temperature
- Relative Humidity
- Wet Bulb Temperature
- Wind Speed
| Item | Description |
| Air Temperature | Range 0…60 °C / Accuracy ±0.6 °C |
| Globe Bulb Indoor | Range 0...80 °C / Accuracy ±1.0 °C (15...40 °C); ±1.5 °C (others) |
| Globe Bulb Outdoor | Range 0...80 °C / Accuracy ±1.5 °C (15...40 °C); ±2.0 °C (others) |
| Relative Humidity | Range 5...95 %rh / Accuracy ±3% (at 25 °C; 10...90 %rh) ±5% (others) |
| Wind Speed | Range 0.5...10 m/s / Accuracy ±(2% of reading + 0.2) m/s |
| Dimensions | Body 59 x 37 x 316 mm (w x d x h). Wind cup (top view) diameter 182 mm |
| Operating range electronics | -10…60 °C |
| Accuracy at 23 ±5 °C | ±1.0 %rh / ±0.2 K |
| Power supply / consumption | 4 AAA 3V battery, power supply 6 mA consumption without lighting |
| Probe protection | Polypropylene plastic cage |
| Measurement interval | 2 seconds |
| Data logger | Yes. Min data rate 1 min up to 60 min, 2,000 data. |
| Connection Interface | Mini USB (UART) |
| Calibration / adjustment | Scarlet calibration kit |
| Wireless Connection (Optional) | 433 MHz (TWL-1SR Model) |
Largest Stockist for Heat stress meter TWL-1S Scarlet Abu Dhabi Dubai UAE Iraq Saudi Arabia Kuwait Oman Africa
