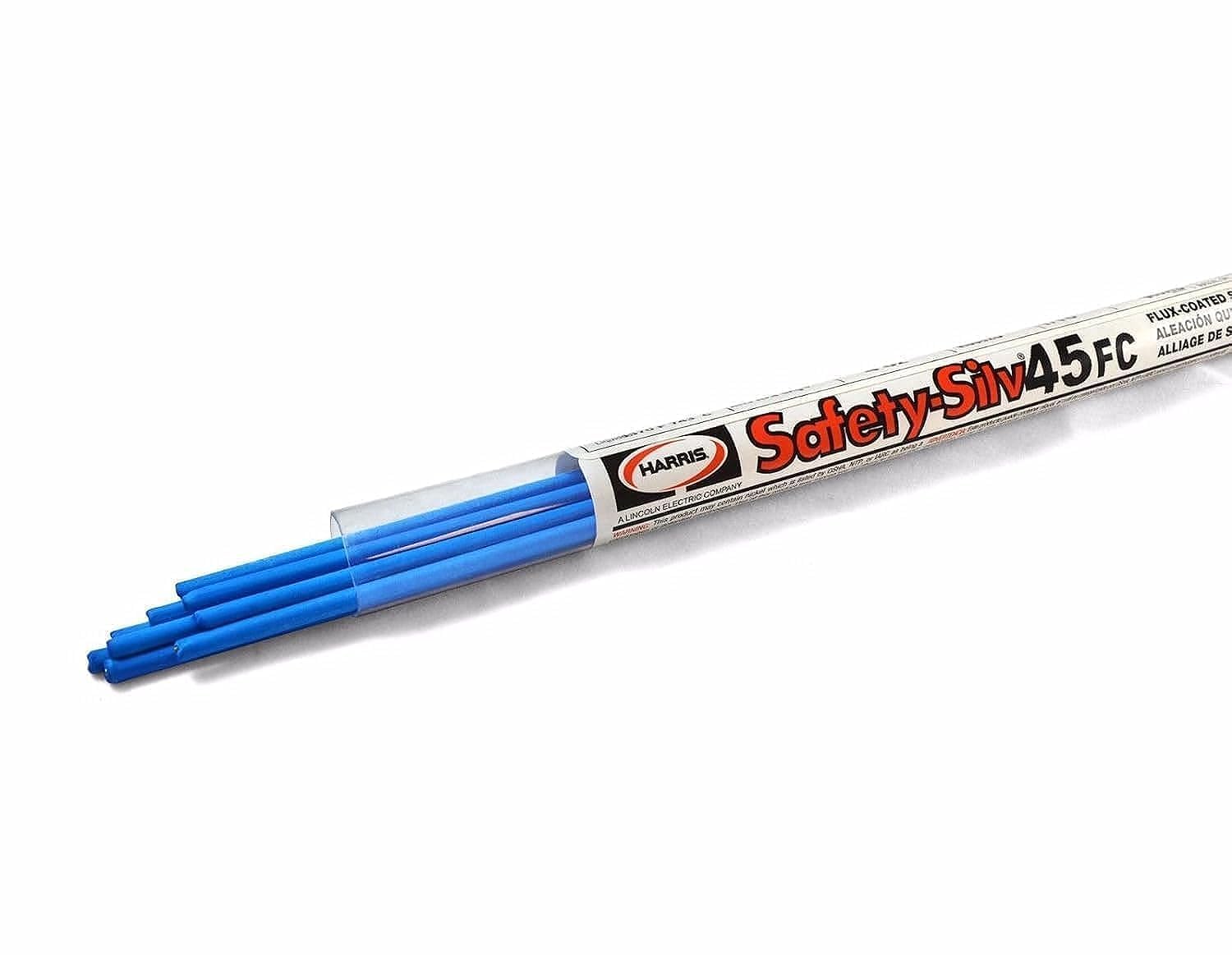

Harris Safety-Silv® 45FC Silver Brazing Alloy
Flux-coated, cadmium-free 45% silver brazing alloy for copper, brass, steel and stainless steel. The flux coating eliminates separate flux application — ideal for general purpose brazing in fabrication, HVAC, refrigeration, food service, and industrial pipework across the Middle East and Africa.
Product Overview
What It Is
Harris Safety-Silv 45FC is a flux-coated, cadmium-free silver brazing alloy containing 45% silver, 30% copper, and 25% zinc. The "FC" designation indicates a flux coating applied directly to the brazing rod — eliminating the need to separately apply and manage brazing flux. AWS A5.8 classified as BAg-5, it is one of the most widely specified general-purpose silver brazing alloys in the world.
Who Uses It
Specified by welding engineers, brazing technicians, HVAC engineers, refrigeration engineers, plumbers, and fabricators. Commonly used by contractors and maintenance teams across the UAE, Saudi Arabia, Qatar, Oman, Kuwait, Iraq, Egypt, Nigeria, Kenya, and South Africa for copper tube joints, food service equipment fabrication, and general industrial brazing.
Where It Is Used
Designed for HVAC copper tube and fitting joints, refrigeration system piping, food and beverage processing equipment, industrial pipework, general steel and stainless fabrication, and anywhere a high-strength, cadmium-free silver brazed joint is required. The flux coating makes it particularly suitable for field work and quick repairs where separate flux handling is impractical.
Safety-Silv 45 vs Safety-Silv 45FC — What's the Difference?
Safety-Silv 45
Standard — No Flux Coating
Safety-Silv 45FC ✅ This Product
Flux-Coated — No Separate Flux Needed
Technical Specifications
Chemical Composition
| Element | Content | Range |
|---|---|---|
| Silver (Ag) | 45% | 44% – 46% |
| Copper (Cu) | 30% | 29% – 31% |
| Zinc (Zn) | 25% | 23% – 27% |
| Other | — | 0.15% max |
Thermal & Performance Properties
| Parameter | Value |
|---|---|
| Solidus Temperature | 1,225°F (663°C) |
| Liquidus Temperature | 1,370°F (743°C) |
| Melting Range | 145°F (63°C) |
| Brazing Temperature Range | 1,370°F – 1,550°F |
| Fluidity Rating | 6.5 |
| Color | Silver to light yellow — good match to polished brass |
| Joint Clearance (preferred) | 0.003" – 0.006" (0.08mm – 0.15mm) |
| Fillet Forming | Good — suitable for filling loose connections |
| Flux Application | Not required — flux coating on rod |
Classification & Compliance
| Standard / Classification | Detail |
|---|---|
| AWS Classification | AWS A5.8 — BAg-5 |
| Cadmium Content | Cadmium-free |
| EU Compliance | Complies with EU REACH and RoHS directive |
| Food Service | Certified to NSF Standard 51 — suitable for food service equipment |
| Government Specification | Often specified in government and defense procurement |
Available Forms & Sizes
| Form | Diameter | Length | Pack |
|---|---|---|---|
| Flux-Coated Rod | 1/32" (0.8mm) | 18" | Various |
| Flux-Coated Rod | 1/16" (1.6mm) | 18" | 1 Troy Oz / 5 Troy Oz / 3-stick |
| Flux-Coated Rod | 3/32" (2.4mm) | 18" | 1 Troy Oz / 5 Troy Oz |
| Flux-Coated Rod | 1/8" (3.2mm) | 18" | 4 Oz Tube |
Key Features & Benefits
Cadmium-Free — Safe to Use
Contains no cadmium — eliminates the serious health risks (carcinogenic fumes) associated with cadmium-bearing silver brazing alloys. Complies with EU REACH and RoHS. Safe for use in enclosed spaces and confined areas across industrial sites in the Middle East and Africa.
Flux-Coated — No Separate Flux Required
The flux coating on the rod eliminates the need to separately purchase, store, and apply brazing flux. Simplifies the brazing process for field technicians and reduces consumable inventory — particularly useful on construction sites, HVAC installations, and maintenance work across the Gulf and Africa.
Excellent Joint Strength & Ductility
45% silver content provides high joint strength with good ductility — joints can withstand vibration, thermal cycling, and mechanical stress without cracking. Critical for refrigeration and HVAC pipework subject to pressure cycling, and for industrial pipework on oil & gas facilities in the UAE, Saudi Arabia, and Qatar.
145°F Melting Range — Versatile
The 145°F (63°C) melting range between solidus (1,225°F) and liquidus (1,370°F) provides good working time and fillet-forming qualities — suitable for both tight joints and wider clearance connections. Compatible with standard oxy-acetylene and air-acetylene torch brazing setups.
NSF 51 Certified — Food Service Safe
Certified to NSF Standard 51 for food equipment materials — approved for use in food service, beverage, and food processing equipment fabrication. Suitable for stainless steel joints in commercial kitchen equipment, dairy processing, and food and beverage plant pipework.
Good Capillary Flow & Fillet Forming
Excellent capillary flow draws alloy into tight joint clearances efficiently. Good fillet-forming qualities make it suitable for filling connections with wider-than-ideal clearances — a practical advantage in maintenance and repair situations where joint fit-up may not be perfect.
Applications by Industry
| Industry | Application |
|---|---|
| HVAC & Refrigeration | Copper tube and fitting joints in chilled water systems, refrigeration pipework, air conditioning installations and heat exchanger connections across UAE (Dubai, Abu Dhabi), Saudi Arabia (Riyadh, Jeddah), Qatar (Doha), and Kuwait |
| Food & Beverage | Brazing stainless steel food processing equipment, dairy pipework, beverage production vessels, and commercial kitchen equipment — NSF 51 certification makes it approved for direct food contact applications |
| Oil & Gas Maintenance | Brazing copper and brass instrument tubing connections, heat exchanger repairs, and process equipment maintenance at oil & gas facilities across UAE (ADNOC), Saudi Arabia (Aramco), Qatar (QatarEnergy), Iraq (Basra), and Nigeria (NNPCL) |
| Industrial Fabrication | General purpose brazing of steel, stainless steel, brass, and copper components in fabrication shops across the Middle East and Africa — commonly specified where AWS BAg-5 is required |
| Plumbing & Pipework | Copper pipework joints in commercial and industrial plumbing installations, hot and cold water systems, and mechanical services pipework across the GCC construction sector |
| Petrochemical Plants | Instrument and control tubing joints, heat exchanger tube-to-header connections, and small-bore process pipework repairs in petrochemical facilities across Dammam, Jeddah, Ruwais, and Lagos |
| Electrical & Electronics | Brazing electrical contacts, busbars, copper conductor connections, and high-conductivity joints where silver content and joint quality are critical |
| Shipbuilding & Marine | Copper and brass pipework joints in ship HVAC, refrigeration, and mechanical services systems — UAE shipyards, South Africa (Cape Town), Ghana, and Nigeria (Lagos) |
Frequently Asked Questions
What is the difference between Harris Safety-Silv 45 and Safety-Silv 45FC?
What metals can Harris Safety-Silv 45FC braze together?
Is Harris Safety-Silv 45FC cadmium-free and safe to use indoors?
What temperature is needed and what torch setup is required?
How can I get pricing for Harris Safety-Silv 45FC in UAE, Saudi Arabia, Qatar or Africa?
