Explosion Proof Air Conditioner (ATEX & IECEx)
-
1 Day delivery all over UAENov 02 - Nov 06
Explosion Proof Air Conditioner (ATEX & IECEx)
ATEX and IECEx certified explosion-proof air conditioning in six series — wall-mounted, floor-standing, cassette, suspended duct, window and package units up to 80 kW. Engineered for continuous cooling in oil & gas, petrochemical, marine and offshore hazardous areas. Zone 1 & 2, Gas Groups IIA/IIB/IIC, rated to +52°C. Supplied across the UAE, Saudi Arabia and Qatar, including oil & gas and petrochemical sites around Abu Dhabi, Dammam and Doha.
Product Overview
What It Is
An explosion-proof air conditioner is an HVAC unit built so none of its components can ignite a surrounding flammable atmosphere. Every part — compressor, fan, control system and wiring — uses certified explosion-protection methods (flameproof Ex db, intrinsic safety Ex ib, encapsulation Ex mb, pressurisation Ex px). Available in six series to suit any installation, from compact wall units to 80 kW package systems.
Who Uses It
Specified by HSE engineers, HVAC consultants and project procurement teams for petroleum, petrochemical, military, aerospace, power energy, chemical tanker and drilling platform facilities.
Where It Is Used
Zone 1 and Zone 2 hazardous areas — industrial workshops, hazardous storage areas, online analysis rooms, control and operator rooms, electrical rooms, e-houses, camp houses and specialized enclosures at ADNOC, Aramco, QatarEnergy, KOC and PDO sites throughout the Gulf.
Six Series — One for Every Installation

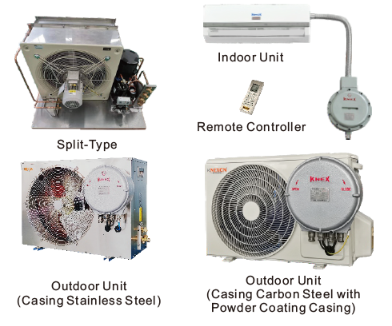

Wall-Mounted Split
Models BKT-35 to BFKT-100
Compact split unit with wall-mounted indoor unit — the everyday choice for analyser houses, instrument shelters, small control cabins and personnel rooms in classified areas.
Best for: Small rooms & shelters · 12,000–36,000 BTU/h

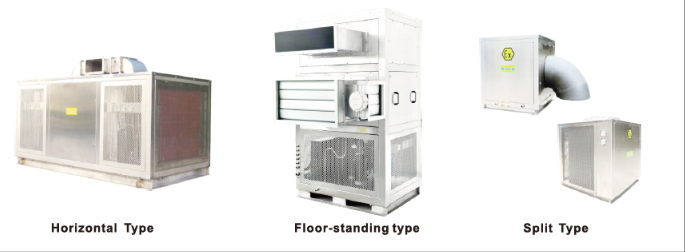

Floor-Standing (Cabinet)
Cabinet Split Series
Higher-capacity floor-standing unit for larger control rooms, laboratories, e-houses and process buildings needing greater cooling load in a self-contained cabinet.
Best for: Larger control rooms & e-houses

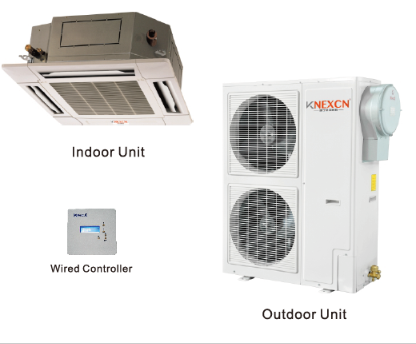

Ceiling Cassette
CoolSurround 360° Airflow
Recessed ceiling cassette with 360° airflow that diffuses cool air evenly for uniform cooling. Ideal for control rooms and offices where a clean ceiling finish is required.
Best for: Offices & control rooms · even airflow

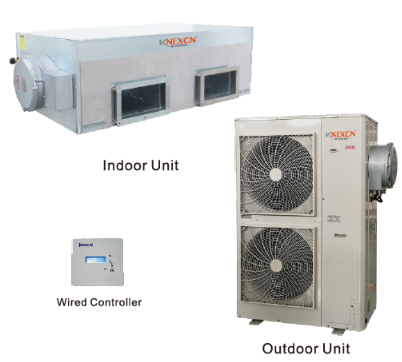

Suspended Split-Duct
Models BKT-35 to BFKT-140
Concealed suspended indoor unit for ducted installation above a ceiling — delivers cooling through ductwork where discreet, distributed air supply is needed.
Best for: Concealed ducted installs · up to 57,000 BTU/h

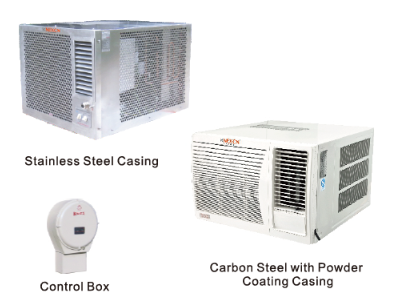

Window Type
Single-Package Window Series
Self-contained single-package window unit — the simplest explosion-proof cooling solution for compact cabins, guard rooms and small enclosures with a wall or window opening.
Best for: Compact cabins & guard rooms

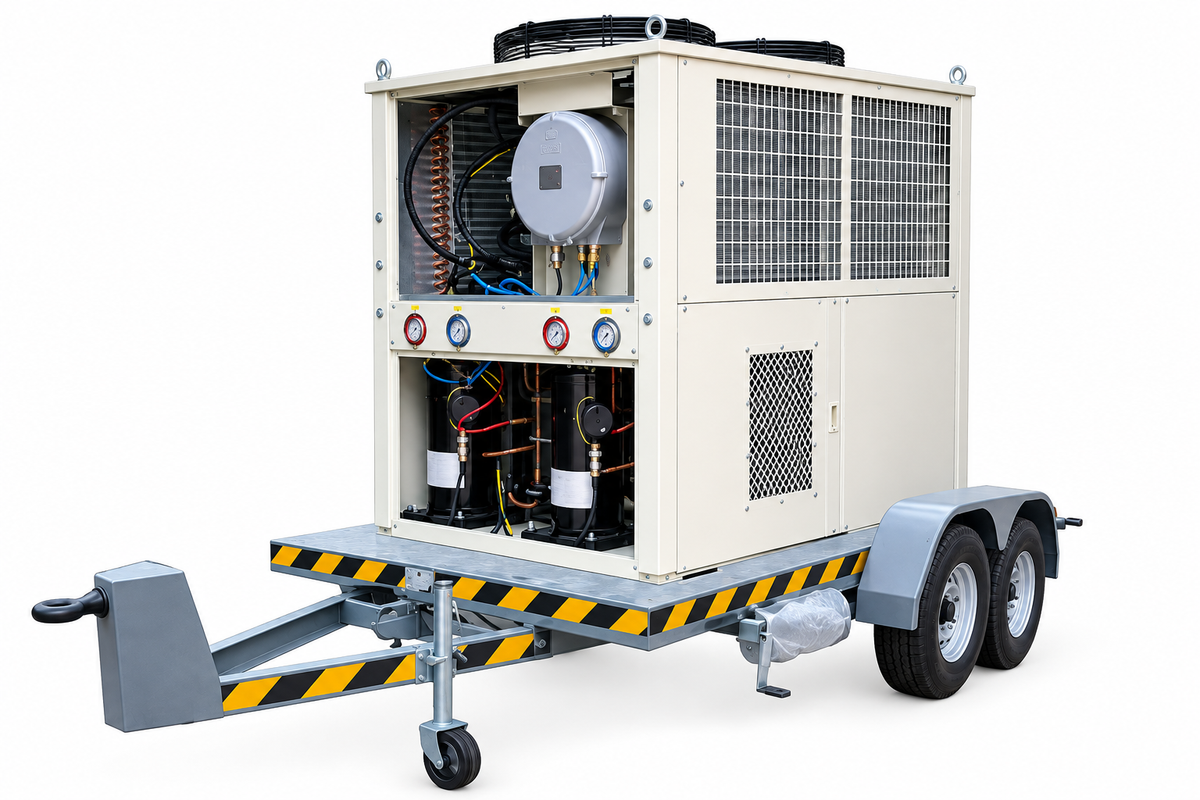

Package (Unitary)
Models BKT-250H to BKT-800H
Large packaged/unitary units with direct-expansion or water systems — full return, fresh air or mixed modes. Up to 80 kW cooling for large process buildings and packaged rooms.
Best for: Large buildings · 25–80 kW cooling
Certification & Hazardous Area Rating
Certified to ATEX · IECEx · EAC · CCC
Hazardous Area Suitability
| Parameter | Rating |
|---|---|
| Zone | Zone 1 & Zone 2 (gas) · Zone 21/22 dust option on package units |
| Equipment Category | II 2 G (gas) · II 2 D (dust, package units — Ex tb IIIC T130°C Db) |
| Gas Groups | IIA, IIB and IIC (IIC covers hydrogen & acetylene — most stringent) |
| Temperature Class | T1 to T4 |
| Protection Types | Ex db (flameproof), Ex ib (intrinsic safety), Ex mb (encapsulation), Ex px/pxb (pressurisation) |
| Equipment Protection Level | Gb |
| Marine Option | DNV / ABS compliant · Marine Protection Class IP56 (cassette & select series) |
Representative Technical Data
Wall-Mounted Split — T3 Condition (50Hz)
| Model | Cooling Capacity | Cooling Input | EER (T1) | Air Flow | Refrigerant |
|---|---|---|---|---|---|
| BKT-35-F | 12,000 BTU/h | 1,095 W | 3.21 W/W | 645 m³/h | R410A |
| BKT-50-F | 18,000 BTU/h | 1,620 W | 3.26 W/W | 860 m³/h | R410A |
| BKT-70-F | 30,000 BTU/h | 2,710 W | 3.24 W/W | 1,260 m³/h | R410A |
| BFKT-100 | 36,000 BTU/h | 3,206 W | 3.24 W/W | 1,550 m³/h | R410A |
Package (Unitary) — T1 Condition
| Model | Cooling Capacity | Cooling Input | Air Flow | Ext. Static Pressure | Supply Power |
|---|---|---|---|---|---|
| BKT-250H | 25 kW | 8.9 kW | 5,400 m³/h | 220 Pa | 380–460V |
| BKT-320H | 30 kW | 11.5 kW | 6,480 m³/h | 220 Pa | 380–460V |
| BKT-400H | 40 kW | 16.1 kW | 8,280 m³/h | 250 Pa | 380–460V |
| BKT-550H | 50 kW | 18.9 kW | 10,800 m³/h | 250 Pa | 380–460V |
| BKT-750H | 60 kW | 22.6 kW | 12,960 m³/h | 270 Pa | 380–460V |
| BKT-800H | 80 kW | 32.8 kW | 17,100 m³/h | 300 Pa | 380–460V |
Representative data shown. Full model tables for all six series (wall, floor, cassette, suspended, window, package) available on request — contact us with your cooling load and area classification.
- 6 Series Available
- Up to 80 kW Cooling
- ATEX & IECEx
- Zone 1 & 2 · Gas Group IIC
- Rated to +52°C
- 50/60 Hz
- SS or Coated Casing
- Marine DNV/ABS Option
Key Features & Benefits
Fully Certified Explosion Protection
Every component carries certified Ex protection — flameproof, intrinsic safety, encapsulation and pressurisation combined into one unit. ATEX, IECEx, EAC and CCC certified for global project acceptance across GCC oil & gas standards.
Gulf-Rated to +52°C
T3 working condition covers ambient up to +52°C — engineered for the extreme summer temperatures of the UAE, Saudi Arabia, Qatar, Kuwait and Oman. Customized ultra-high-temperature versions available.
Six Configurations
Wall, floor, cassette, suspended duct, window and package units — a single supplier for every hazardous-area cooling requirement, from a small analyser shelter to an 80 kW packaged process room.
High-Efficiency Heat Exchanger
Internal-threaded copper tubes with hydrophilic-membrane aluminium fins deliver compact, high heat-transfer efficiency — maximising cooling output within explosion-proof enclosure design.
Corrosion-Resistant & Marine Ready
Stainless steel (SS304/SS316L) or powder-coated carbon steel casing options, with DNV/ABS marine compliance and IP56 marine protection on select series — for coastal, offshore and process-plant environments.

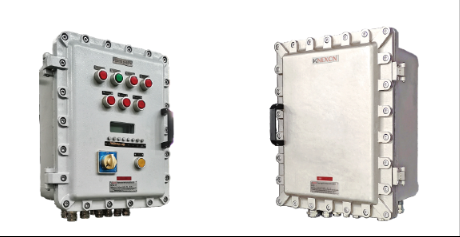

Remote or Wired Control
Explosion-proof control system with remote or wired control options, anti-static indoor case to eliminate static ignition hazard, and customizable alarm interfaces on package units for on-site alarm integration.
Applications by Industry
| Application | Detail |
|---|---|

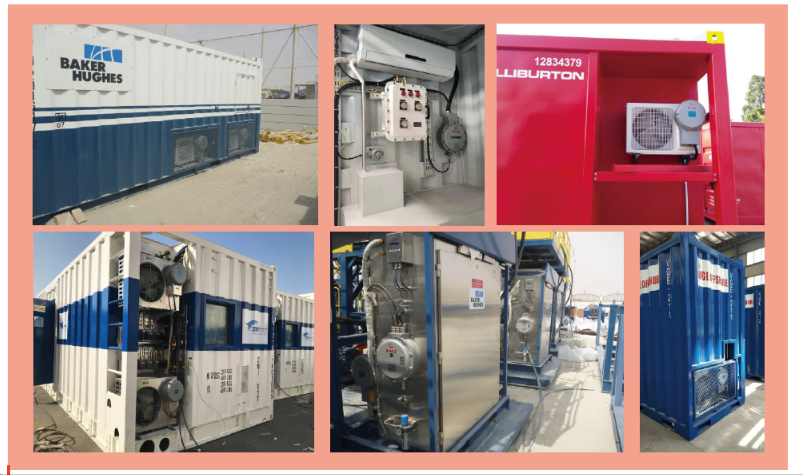

| Oil & Gas — Process Facilities | Cooling of analyser houses, instrument shelters, control rooms and process buildings in Zone 1/2 areas at ADNOC (UAE), Aramco (Saudi Arabia), QatarEnergy (Qatar), KOC (Kuwait) and PDO (Oman) |
| Offshore & Marine | Explosion-proof cooling for offshore control cabins, e-houses, chemical tankers and drilling platforms — DNV/ABS marine-compliant units with IP56 protection across the Arabian Gulf |
| Petrochemical Plants | Cassette and package units for laboratories, control rooms and analyser shelters in classified areas of refineries and chemical plants across Ruwais, Jubail, Ras Laffan and Dammam |
| Power & Energy | Package and floor-standing units for e-houses, packaged substations and switchgear rooms located within or adjacent to hazardous areas at power facilities |
| Military & Aerospace | Explosion-proof cooling for defence, aerospace and specialized enclosures where certified hazardous-area HVAC is mandatory |
| Camp & Personnel Rooms | Wall and window units for camp houses, guard cabins, operator rooms and personnel shelters located in or near classified areas at remote sites across the GCC |
Frequently Asked Questions
What is an explosion-proof air conditioner and where is it used?
An explosion-proof air conditioner is an HVAC unit engineered so no part of it can ignite a surrounding flammable gas, vapour or dust atmosphere. Every component uses certified explosion-protection (flameproof Ex db, intrinsic safety Ex ib, encapsulation Ex mb, pressurisation Ex px). Used in Zone 1 and Zone 2 hazardous areas across petroleum, petrochemical, military, aerospace, power, chemical tanker and drilling facilities — industrial workshops, analysis rooms, control rooms, electrical rooms, camp houses and specialized enclosures.
What types of explosion-proof air conditioner are available?
Six series: wall-mounted split (compact rooms/shelters), floor-standing cabinet (larger control rooms/e-houses), ceiling cassette with 360° airflow (offices/control rooms), suspended split-duct (concealed ceiling install), window type (compact single-package), and package/unitary units up to 80 kW cooling (large process buildings). All carry the same ATEX/IECEx hazardous-area certification.
What ATEX / IECEx certification do these units carry?
Certified to ATEX, IECEx, EAC and CCC. ATEX marking: II 2 G Ex db ib mb pxb IIC T4 Gb; IECEx marking: Ex db ib mb pxb IIC T4 Gb. Suitable for Zone 1 & Zone 2, Gas Groups IIA, IIB and IIC (IIC — hydrogen & acetylene), Temperature Classes T1–T4. Package units also offer II 2 D dust protection (Ex tb IIIC T130°C Db).
Can these handle the high temperatures of the Gulf?
Yes. Units are rated for T3 working condition, -7°C up to +52°C — suited to summer temperatures. Customized products are available for ultra-high-temperature areas. Units run on both 50Hz and 60Hz, with stainless steel casing options for corrosive coastal and offshore environments.
How do I get a price for an explosion-proof air conditioner?
Send us the models, sizes and quantities you need on WhatsApp +971 55 697 6535 and we will reply with pricing, availability and delivery time.
Explosion-Proof Air Conditioner Supplier in the UAE & GCC
Global Hardware & Tools LLC is a Dubai-based supplier of ATEX and IECEx explosion-proof air conditioners for projects across the UAE, Saudi Arabia and Qatar, including delivery to Abu Dhabi, Dammam and Doha. Buyers in Kuwait, Oman, Iraq and across Africa, including Nigeria, are supplied from our UAE head office in Abu Dhabi. For pricing and availability, WhatsApp +971 55 697 6535.
