Dynaweld Wrap Around Pipe Wrap WW-16 WW-19 Dubai UAE

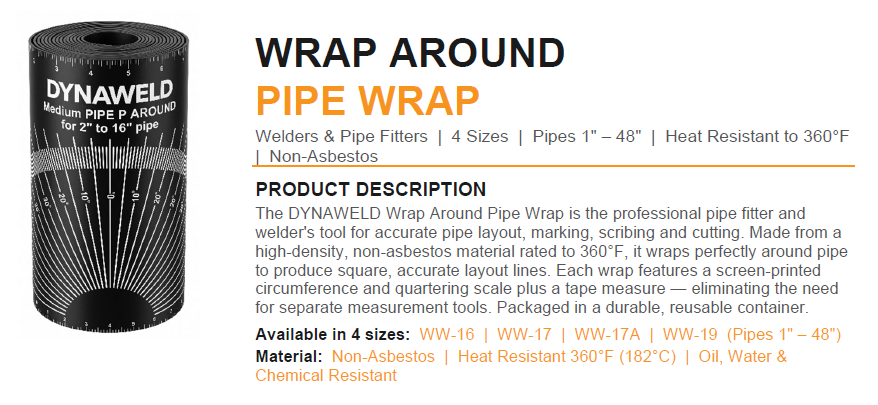

Dynaweld Wrap Around Pipe Wrap
The professional pipe fitter and welder's tool for accurate pipe layout, marking, scribing and cutting. Available in 4 sizes covering 1" to 48" pipe. Non-asbestos, heat resistant to 360°F — with a screen-printed circumference scale and built-in tape measure. Engineered for pipeline, fabrication, offshore, and shipyard use.
Product Overview
What It Is
The Dynaweld Wrap Around Pipe Wrap is a flexible precision tool that wraps around pipe to produce square, accurate layout and cut lines. Made from non-asbestos high-density material rated to 360°F, each wrap features a screen-printed circumference scale, quartering values (¼, ½, ¾), actual pipe diameter, and a built-in tape measure — providing everything needed for accurate pipe layout in a single tool.
Who Uses It
Designed for professional pipe fitters and welders on pipeline construction, structural fabrication, offshore platforms, and shipyard projects. Used daily by pipefitting crews across the UAE (ADNOC), Saudi Arabia (Aramco, SABIC), Iraq (pipeline projects), Qatar, Kuwait, Nigeria (NNPCL), Kenya, Egypt, and South Africa for accurate field marking on all pipe sizes from small bore to large-diameter mainline.
Where It Is Used
Suited for oil & gas pipeline construction and maintenance, structural pipe fabrication, offshore and onshore field welding, shipbuilding and marine pipe fitting, HVAC, plumbing and industrial pipework, and stainless steel and high-alloy pipe fabrication. Works on all pipe materials including carbon steel, stainless steel, alloy, HDPE, and GRE pipe.
Size Selection Guide — Which Wrap Do I Need?
WW-16
SMALLWW-17
MEDIUMWW-17A
LARGEWW-19
X-LARGETechnical Specifications
Model Specifications — All Sizes
| Model | Size | Pipe Range | Wrap Length | Wrap Width | Tape Measure |
|---|---|---|---|---|---|
| WW-16 | Small | 1" – 6" | 30" (762 mm) | 2-5/8" (67 mm) | 28" |
| WW-17 | Medium | 2" – 16" | 60" (1,524 mm) | 3-7/8" (98 mm) | 36" |
| WW-17A | Large | 6" – 30" | 120" (3,048 mm) | 5-1/4" (133 mm) | 36" |
| WW-19 | X-Large | 12" – 48" | 180" (4,572 mm) | 7" (178 mm) | 48" |
Material Specifications — All Models
| Parameter | Specification |
|---|---|
| Material | Non-asbestos high-density compound |
| Asbestos Content | Asbestos-free — safe for all environments including enclosed and confined spaces |
| Temperature Rating | Up to 360°F (182°C) |
| Chemical Resistance | Oil, gasoline, kerosene, water, and sea water resistant |
| Edge Profile | Thick and straight — designed for precision scribing and marking |
| Scale Printed | Circumference, ¼, ½, ¾ circumference values, and actual pipe diameter |
| Tape Measure | Screen-printed directly on each wrap (28", 36" or 48" depending on model) |
| Use Orientation | Right-side up only — NEVER upside down |
| Container | Reusable durable tube — toolbox safe, keeps wrap clean and protected |
Key Features & Benefits
Screen-Printed Tape Measure
A tape measure is printed directly onto each wrap — 28" on WW-16, 36" on WW-17/17A, and 48" on WW-19. Eliminates the need for a separate tape measure on the job, reducing tools carried to the work face on pipeline and offshore installations.
Circumference & Quartering Scale
Exact circumference values plus ¼, ½, and ¾ circumference marks and actual pipe diameter are printed on the outside of each wrap. Eliminates manual calculations on site — critical for accurate saddle cuts, branch connections, and pipe alignment on structural and pipeline projects.
Thick & Straight Edges
Edges are designed thick and straight for easier, more accurate scribing and marking with soapstone or marker. Produces clean, straight cut lines that reduce rework and improve weld joint preparation quality — important on projects with radiographic or visual weld inspection requirements.
Heat Resistant to 360°F / 182°C
High-density non-asbestos material withstands temperatures up to 360°F — safe for use near active welding, in hot fabrication environments, and on pipe that has been pre-heated. Maintains dimensional stability in the high-ambient-temperature conditions on outdoor sites across the Gulf and equatorial Africa.
Oil, Chemical & Sea Water Resistant
Outstanding resistance to oil, gasoline, kerosene, water, and sea water — performs reliably in harsh outdoor, marine, and offshore environments. Suitable for use on offshore platforms, coastal pipeline projects, shipyards, and process plant environments across the Middle East and Africa.
Covers 1" to 48" Pipe — One Range
Four wrap sizes cover virtually every pipe diameter in use across pipeline, structural, HVAC, and process plant applications — from 1" small bore instrument tubing to 48" large-diameter mainline pipe. A complete set covers the full range needed on a large pipeline or fabrication project.
Asbestos-Free
All wraps are made from non-asbestos material — fully compliant with asbestos-free workplace requirements on oil & gas, petrochemical, and government construction projects across the UAE, Saudi Arabia, Iraq, and the wider MENA region where asbestos-free certification is a standard procurement requirement.
Reusable Tube Container
Each wrap is packaged in a durable, reusable tube container that survives daily toolbox use, site transport, and outdoor storage. Keeps the wrap clean, dry, and protected — extending service life and maintaining the accuracy of the printed scales over repeated use.
How To Use
Select the correct size for your pipe diameter using the size guide — WW-16 for 1"–6", WW-17 for 2"–16", WW-17A for 6"–30", WW-19 for 12"–48".
Remove the wrap from the tube. Wrap around the pipe — always use right-side up. Never use upside down.
Align the ends to close the wrap around the pipe circumference — the wrap is sized to meet end-to-end on the correct pipe diameter.
Use the thick, straight edge to scribe or mark your cut line with a soapstone or marker — the straight edge guides the scribing tool for a square, accurate line.
Read pipe data directly from the printed scale — pipe diameter, circumference, and quartering values (¼, ½, ¾) are all visible without manual calculation.
Use the built-in tape measure for accurate linear measurements along the pipe without needing a separate tape.
Return the wrap to its tube for storage — the reusable container protects the wrap and keeps scales legible for future use.
Applications by Industry
| Industry | Application |
|---|---|
| Oil & Gas — Pipeline | Field marking of cut lines, weld fit-up lines, and layout marks on carbon steel and alloy mainline pipe (6"–48") during pipeline construction and tie-in operations across UAE (ADNOC), Saudi Arabia (Aramco), Iraq (Basra, Baghdad), Qatar, and Nigeria (NNPCL) |
| Petrochemical & Refining | Accurate pipe layout and cut marking for process piping modifications, turnaround maintenance, and new pipework installation in refineries across Dammam, Jeddah, Ruwais, Basra, and Lagos |
| Structural Fabrication | Square cut marking on structural pipe and hollow section members for connections, stiffeners, and bracing in fabrication shops and on construction sites across the UAE, Saudi Arabia, Egypt, and South Africa |
| Offshore Platforms | Pipe layout and marking on topside and subsea pipework during offshore platform construction, maintenance, and modification — particularly suited for confined deck spaces where measurement accuracy is critical |
| Shipbuilding & Marine | Pipe fitting layout and cut marking on ship pipework systems — fuel, ballast, fire main, and HVAC piping — in shipyards across UAE, South Africa, Ghana, and Nigeria |
| HVAC & Plumbing | Accurate square cut marking on HVAC ductwork, chilled water piping, and plumbing pipework in commercial and industrial building projects across the GCC and East Africa |
| Stainless & High-Alloy Fabrication | Layout and scribing on stainless steel, duplex, and high-alloy pipe for food processing, pharmaceutical, and chemical plant fabrication — where accurate, clean cut lines are essential for hygienic joint preparation |
Frequently Asked Questions
What is a wrap around pipe wrap and what is it used for?
Which pipe wrap size do I need for my pipe diameter?
Is the Dynaweld pipe wrap asbestos-free?
Can the pipe wrap be used near welding operations or on hot pipe?
How can I get pricing for the Dynaweld pipe wrap in UAE, Saudi Arabia, Iraq or Africa?
For pricing on WW-16, WW-17, WW-17A, WW-19, or a full set:
