Dynaweld · Calibrated click torque wrench
Dynaweld Click Torque Wrench
Micrometer-setting click torque wrench, made in England, for controlled and repeatable bolt tightening. Dial the value, lock the barrel and feel the click at the set torque.
- ISO 6789-1:2017 Type II, Class A
- ±3% accuracy CW & CCW
- 5 to 3,000 N·m
- Serialized, with calibration certificate
- Made in England
10 sizes available
Send the drive size, torque range and quantity and we reply with pricing and availability.
Delivery from Dubai across the UAE, Saudi Arabia and Qatar. Shipping & service areas
- Dubai-based supplierGlobal Hardware & Tools LLC
- UAE, Saudi Arabia & QatarDelivery from Dubai
- Kuwait, Oman, MENA & AfricaSupplied via our UAE hub
- Quotes on WhatsAppPricing and availability
Why bolting teams choose Dynaweld
Key features & benefits
Specifications
Which size do I need?
Choose by drive size and the torque range your bolting procedure calls for. Ten models cover 5 to 3,000 N·m.
| Item | Drive size | Torque range | Drive (mm) | Accuracy | Direction |
|---|---|---|---|---|---|
| 1 | 3/8" | 5 – 30 N·m | 9.5 mm | ±3% | CW & CCW |
| 2 | 3/8" | 5 – 60 N·m | 9.5 mm | ±3% | CW & CCW |
| 3 | 1/2" | 20 – 220 N·m | 12.7 mm | ±3% | CW & CCW |
| 4 | 1/2" | 40 – 400 N·m | 12.7 mm | ±3% | CW & CCW |
| 5 | 3/4" | 100 – 600 N·m | 19.0 mm | ±3% | CW & CCW |
| 6 | 3/4" | 150 – 1,000 N·m | 19.0 mm | ±3% | CW & CCW |
| 7 | 1" | 150 – 1,000 N·m | 25.4 mm | ±3% | CW & CCW |
| 8 | 1" | 300 – 1,500 N·m | 25.4 mm | ±3% | CW & CCW |
| 9 | 1" | 400 – 2,000 N·m | 25.4 mm | ±3% | CW & CCW |
| 10 | 1" | 600 – 3,000 N·m | 25.4 mm | ±3% | CW & CCW |
Swipe to see all columns →
Technical specifications (all models)
| Type | Click (micrometer) setting wrench – ISO 6789-1:2017 Type II, Class A |
|---|---|
| Accuracy | ±3% declared accuracy (CW & CCW) – tighter than the ±4% ISO limit |
| Mechanism | Audible + tactile click at set torque value |

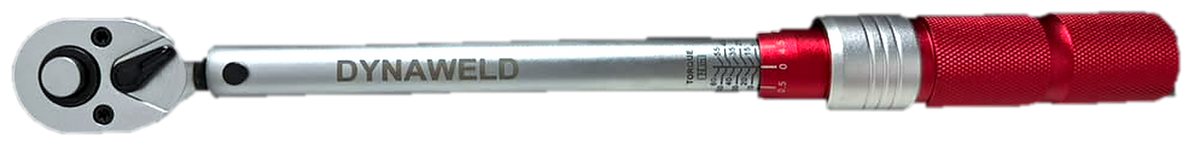

| Scale | Dual scale – N·m & ft·lb |
| Locking | Barrel locking collar – prevents accidental adjustment |
| Direction | Bi-directional ratchet – CW & CCW |
| Body material | Chrome Vanadium steel (CrV) |
| Head finish | Polished chrome |
| Handle | Knurled anti-slip grip |
| Calibration | Individual serialized certificate per wrench |
| Traceability | Serial No. tied to calibration records |
| Recalibration | Per ISO 6789-2:2017 – 12 months or 5,000 cycles |
| Quality standard | ISO 9001 Quality Management System |
| Origin | Made in England |
Applications
Where it is used
- Oil & Gas
Flange & valve bolting – torque-controlled tightening - Petrochemical
Pressure piping maintenance – calibrated bolt tightening - Power Plants
Pressure vessel & turbine bolting with traceability - Construction
HSFG structural bolt tightening to BS EN 1090 - Automotive / Heavy
Engine, drivetrain and chassis fastener assembly - Fabrication
Repeatable torque on spool flange connections - Water / Process
Consistent gasket loading across all flange bolts - Quality / QC
Torque audit and verification – certificate on file
How to use & care
Set, lock, click
- Unlock the barrel and dial the required torque on the dual N·m / ft·lb scale.
- Lock the barrel with the locking collar so the setting cannot change.
- Tighten until the audible and tactile click signals that the set torque is reached.
- Always return the barrel to the minimum setting before storing – a spring stored at a set value stays loaded, which causes drift and inaccuracy.
Recalibration (ISO 6789-2:2017)
- Every 12 months – or every 5,000 tightening cycles
- Immediately after any drop from height
- Immediately after suspected overload or misuse
Good to know
Frequently asked questions
What does ISO 6789-1:2017 Type II, Class A mean?
Type II is a setting (click) torque tool; Class A is a wrench, adjustable, with a graduated scale. The Dynaweld Click Torque Wrench has a ±3% declared accuracy (CW & CCW), tighter than the ±4% ISO limit.
Does each wrench come with a calibration certificate?

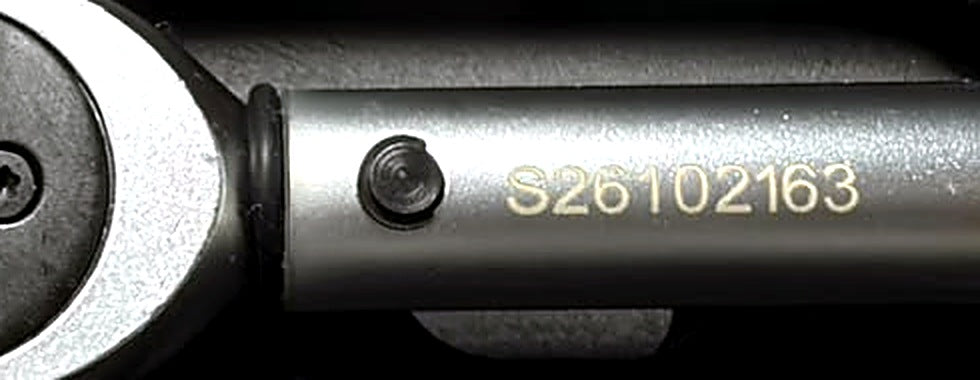

Yes. Every wrench is individually serialized – each wrench is laser-engraved with its own serial number for easy calibration traceability – and is supplied with its own calibration certificate.
How often should the torque wrench be recalibrated?
Per ISO 6789-2:2017, every 12 months or 5,000 cycles, whichever comes first, and immediately after a drop from height or suspected overload or misuse.
Do you supply in the UAE, Saudi Arabia and Qatar?
Yes. We supply from our offices in the UAE, Saudi Arabia and Qatar, covering Dubai, Abu Dhabi, Riyadh, Dammam and Doha.
How do I get a price for the Dynaweld Click Torque Wrench?
Send the drive size, torque range and quantity on WhatsApp +971 55 697 6535 for a quote.
Need a price for one wrench or a full set?
Send the drive size, torque range and quantity and we reply with pricing and availability. Supplied from Dubai to Abu Dhabi, Sharjah, Riyadh, Jeddah, Dammam and Doha.
More information
Full product details
Full description
The Dynaweld Click Torque Wrench is a professional-grade micrometer setting wrench, made in England, for controlled and repeatable bolt tightening wherever torque has to be verified and recorded. Dial the value on the dual N·m / ft·lb scale, lock the barrel, and the wrench signals with an audible and tactile click the moment the set torque is reached.
Individually serialized – each wrench is laser-engraved with its own serial number for easy calibration traceability. Built to ISO 6789-1:2017 Type II, Class A, every wrench carries a ±3% declared accuracy (CW & CCW) and is supplied with its own calibration certificate. Ten models cover 5 to 3,000 N·m on 3/8", 1/2", 3/4" and 1" drives.
Click Torque Wrench Models & Specifications
| Item | Drive Size | Torque Range | Drive (mm) | Accuracy | Direction |
|---|---|---|---|---|---|
| 1 | 3/8" | 5 – 30 N·m | 9.5 mm | ±3% | CW & CCW |
| 2 | 3/8" | 5 – 60 N·m | 9.5 mm | ±3% | CW & CCW |
| 3 | 1/2" | 20 – 220 N·m | 12.7 mm | ±3% | CW & CCW |
| 4 | 1/2" | 40 – 400 N·m | 12.7 mm | ±3% | CW & CCW |
| 5 | 3/4" | 100 – 600 N·m | 19.0 mm | ±3% | CW & CCW |
| 6 | 3/4" | 150 – 1,000 N·m | 19.0 mm | ±3% | CW & CCW |
| 7 | 1" | 150 – 1,000 N·m | 25.4 mm | ±3% | CW & CCW |
| 8 | 1" | 300 – 1,500 N·m | 25.4 mm | ±3% | CW & CCW |
| 9 | 1" | 400 – 2,000 N·m | 25.4 mm | ±3% | CW & CCW |
| 10 | 1" | 600 – 3,000 N·m | 25.4 mm | ±3% | CW & CCW |
Specifications
| Type | Click (micrometer) setting wrench – ISO 6789-1:2017 Type II, Class A |
|---|---|
| Accuracy | ±3% declared accuracy (CW & CCW) – tighter than the ±4% ISO limit |
| Mechanism | Audible + tactile click at set torque value |
| Scale | Dual scale – N·m & ft·lb |
| Locking | Barrel locking collar – prevents accidental adjustment |
| Direction | Bi-directional ratchet – CW & CCW |
| Body material | Chrome Vanadium steel (CrV) |
| Head finish | Polished chrome |
| Handle | Knurled anti-slip grip |
| Calibration | Individual serialized certificate per wrench |
| Traceability | Serial No. tied to calibration records |
| Recalibration | Per ISO 6789-2:2017 – 12 months or 5,000 cycles |
| Quality standard | ISO 9001 Quality Management System |
| Origin | Made in England |
Key Features & Benefits
- ±3% declared accuracy clockwise and counter-clockwise – tighter than the ±4% ISO 6789-1 limit
- Audible + tactile click signals the moment the set torque is reached
- Barrel locking collar prevents accidental change of the setting
- Dual scale in N·m and ft·lb for metric and imperial specifications
- Bi-directional ratchet for tightening (CW) and loosening (CCW)
- Chrome Vanadium (CrV) steel body, polished chrome head and knurled anti-slip grip
- Individually serialized – each wrench is laser-engraved with its own serial number for easy calibration traceability
- Individual calibration certificate with every wrench – audit-ready out of the box
Applications
- Oil & Gas: Flange & valve bolting – torque-controlled tightening
- Petrochemical: Pressure piping maintenance – calibrated bolt tightening on live and static plant
- Power Plants: Pressure vessel & turbine bolting – critical fastener assembly with traceability
- Construction: High-strength friction grip (HSFG) structural bolt tightening to BS EN 1090
- Automotive / Heavy: Workshop maintenance – engine, drivetrain and chassis fastener assembly
- Fabrication: Workshop & site spool fabrication – repeatable torque on flange connections
- Water / Process: Process pipe flange bolting – consistent gasket loading across all bolts
- Quality / QC: Torque audit and verification on completed assemblies – certificate on file
How to Use & Care
- Unlock the barrel and dial the required torque on the dual N·m / ft·lb scale.
- Lock the barrel with the locking collar so the setting cannot change.
- Tighten until the audible and tactile click signals that the set torque is reached.
- Always return the barrel to the minimum setting before storing – a spring stored at a set value stays loaded, which causes drift and inaccuracy.
Recalibration (ISO 6789-2:2017)
- Every 12 months – or every 5,000 tightening cycles
- Immediately after any drop from height
- Immediately after suspected overload or misuse
FAQ
What does ISO 6789-1:2017 Type II, Class A mean?
Type II is a setting (click) torque tool; Class A is a wrench, adjustable, with a graduated scale. The Dynaweld Click Torque Wrench has a ±3% declared accuracy (CW & CCW), tighter than the ±4% ISO limit.
Does each wrench come with a calibration certificate?
Yes. Every wrench is individually serialized – each wrench is laser-engraved with its own serial number for easy calibration traceability – and is supplied with its own calibration certificate.
How often should the torque wrench be recalibrated?
Per ISO 6789-2:2017, every 12 months or 5,000 cycles, whichever comes first, and immediately after a drop from height or suspected overload or misuse.
Do you supply in the UAE, Saudi Arabia and Qatar?
Yes. We supply from our offices in the UAE, Saudi Arabia and Qatar, covering Dubai, Abu Dhabi, Riyadh, Dammam and Doha.
How do I get a price for the Dynaweld Click Torque Wrench?
Send the drive size, torque range and quantity on WhatsApp +971 55 697 6535 for a quote.
Global Hardware & Tools LLC supplies the Dynaweld Click Torque Wrench across the UAE, Saudi Arabia and Qatar. Buyers in Kuwait, Oman, Iraq and across Africa, including Nigeria, are supplied from our UAE head office in Dubai. For a quote, WhatsApp +971 55 697 6535.
