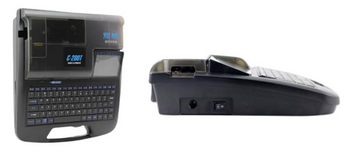

CAPELABEL C-280T Ferrule Printer with PC Connection

Specifications

Printing Method ： Heat transfer

Input Method ： USB port connect to PC, on-board keyboard, USB flash-disk input

Printing Accuracy ： 300DPI

Printing Speed ： Max:40mm/sec

Printing Width ： 8.12mm

Production Capacity ： 45 sections/min (label, length of section: 20mm, 3mm SBC case, 5 characters, half-cutting）

Ribbons ： box (W×L:12mm×80m, black/white/red）

Character Size ： 8 sizes

Display Screen ： 320×240 full color LCD

Number of Rows ： Max:3 rows (available while printing 9mm/12mm labels）

Storage Capacity ： RAM: characters: 12 million；files:200; ROM: 8MB-120G SD card

Cutting Method ： Auto half-cutting/no cut/auto full cutting

Power ： AC adaptor input: 100～240V,50/60Hz; DC Output: 12V, 3A

Operating Environment ： Temperature Degree: 15􀔨～35􀔨; Humidity: 20%～90％RH

Storage Environment ： Temperature Degree: 5􀔨～35􀔨; Humidity: 20%～93％RH

Size ： L×W×H: 319mm×285mm×95mm

Consumables-Tube ： Internal Diameter Range: Φ2.0mm～Φ6.0mm，Thickness:0.2mm~0.5mm

Consumables-Heat-shrink Tube ： Internal Diameter Range: Φ2.0、Φ3.0、Φ4.0、Φ5.0、Φ6.0

Consumables-Label Tape ： Box-packed (white/yellow); Width:6mm/9mm/12mm, Length:16m

Net Weight ： 2.2kg（accessories and outbox excluded）
