Cable Laying Rollers & Manhole Guide Rollers UAE Qatar Saudi
Cable Laying Rollers &
Manhole Guide Rollers
Heavy-duty cable pulling rollers for underground and trench cable installation — straight, triple corner, manhole guide and bend rollers. Galvanized steel frame, aluminium or nylon rollers on sealed bearings. Up to 200mm cable, 10 kN load. Reduces pulling force and protects the cable sheath. Supplied across the UAE, Qatar, Saudi Arabia and wider GCC.
Product Overview
What It Is
Cable laying rollers (cable pulling rollers) support and guide power and communication cables during underground, trench and cable-tray installation. By converting the sliding friction between the cable and the ground into rolling friction, they dramatically reduce the pulling force required and protect the cable sheath from abrasion damage. The range covers straight, corner, manhole guide and bend rollers to suit every point in a cable route.
Who Uses It
Electrical contractors, MEP contractors, cable-pulling crews, utility and infrastructure installers across the UAE, Qatar, Saudi Arabia, Kuwait and Oman — anyone laying LV, MV or HV power cables, control cables or fibre optic bundles in trenches, ducts, cable trays and manholes.
Where It Is Used
Underground cable trenches, duct banks, cable tray routes, substation cable pits, road and utility crossings, and manhole/duct entries across power distribution (DEWA, SEC, KAHRAMAA), oil & gas, infrastructure and building projects throughout the GCC.
Roller Types — One for Every Point in the Route
Straight Cable Roller
Placed every 2–3 metres along straight trench sections to keep the cable off the ground during the pull. Standard and wide-base versions.

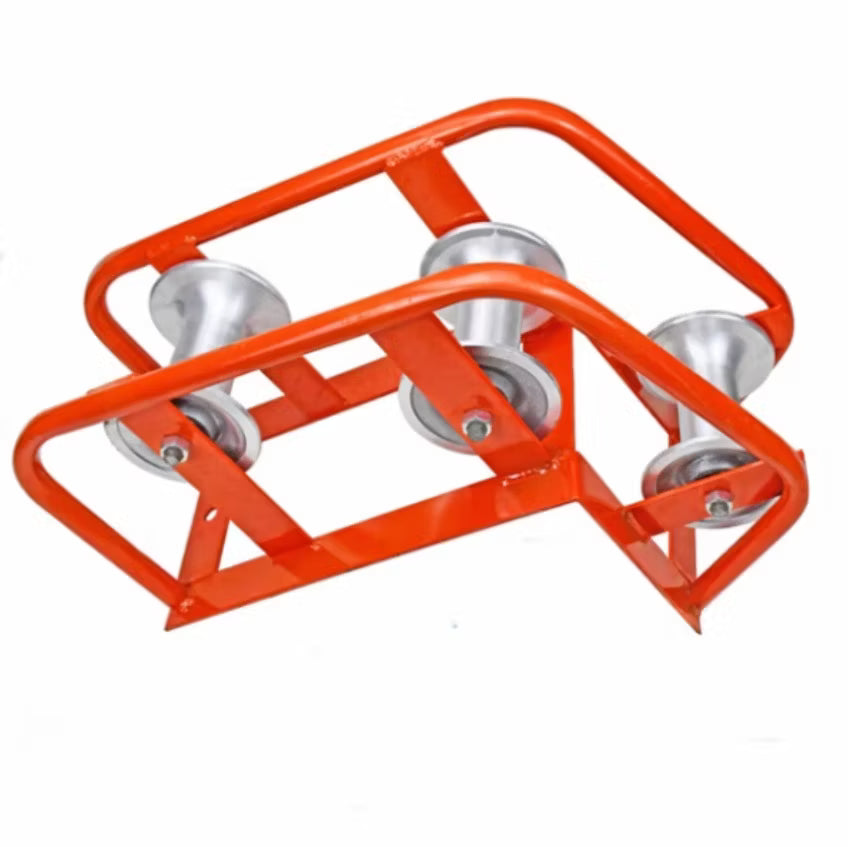

Triple Corner Roller
Three rollers in a steel tubular frame to guide cable around sharp corners. Link multiple units with stake pins to form any turning angle while respecting bend radius.
Manhole Guide Roller
Two vertical waisted rollers plus a horizontal roller, mounted at a manhole or duct entrance to feed cable smoothly down into a vertical duct. Galvanized or stainless.
Bend / Vertical-Horizontal Roller
Vertical, horizontal and skid bend rollers to take the cable around a smooth bend rather than a sharp corner. Combine vertical + horizontal for cable above 130mm.
V-Groove / Drum Feed Roller
V-groove pipe roller that centralises and leads the cable from the drum into the trench. Placed just behind the cable drum as a run-off guide.
4-Roller Cable Protection
Four-roller box that fully surrounds the cable for maximum protection and guidance at high-sidewall-pressure points or tight duct entries.
Technical Specifications
Typical Specifications by Roller Type
| Roller Type | Max Cable Dia. | Load Rating | Roller Material | Frame Finish |
|---|---|---|---|---|
| Straight Roller (standard) | 155 mm | 250 kg | Steel / Nylon | Galvanized |
| Straight Roller (wide) | 200–280 mm | 250 kg | Steel / Nylon | Galvanized |
| Triple Corner Roller | 155 mm | 10 kN (≈1000 kg) | Aluminium / Nylon | Galvanized (zinc) |
| Manhole Guide Roller | 155 mm | 300 kg | Aluminium | Galvanized / Stainless |
| Manhole Guide (heavy duty) | 200 mm | 500 kg+ | Aluminium | Galvanized / Stainless |
| Bend / Vertical-Horizontal | 130–200 mm | Varies | Steel / Nylon | Galvanized |
| Three-Wheel Nylon Roller | 130 / 200 mm | — | Nylon | Galvanized |
Common Build Specification
| Feature | Specification |
|---|---|
| Frame | Heavy-duty steel tubular construction |
| Finish | Electro-galvanized / hot-dip galvanized / stainless steel |
| Roller Material | Aluminium alloy or nylon (waisted / hourglass profile) |
| Bearings | Sealed, water-proofed, maintenance-free ball bearings |
| Connection | Universal link-pin / stake-pin mount positions |
| Cable Capacity | Up to 200mm diameter (type dependent) |
| Load Rating | Up to 10 kN (triple corner) |
Key Features & Benefits
Reduces Pulling Force
Converts sliding friction between the cable and the ground or tray into rolling friction — dramatically cutting the pulling force required and allowing longer pulls with less winch capacity and fewer crew.
Protects the Cable Sheath
Supports the cable off the ground and guides it smoothly around corners within its minimum bend radius — preventing abrasion, sheath damage and the costly rejection of a damaged cable at test.
Sealed Maintenance-Free Bearings
Rollers run on sealed, water-proofed ball bearings that need no maintenance — reliable in muddy, wet and dusty trench conditions across GCC construction sites.
Link-Pin Modular System
Corner and bend rollers share universal link-pin mount positions, so units can be linked together to build any turning angle or a full bend configuration from standard components.
Waisted Roller Profile
The waisted (hourglass) roller shape centralises the cable and stops it climbing or slipping off the roller during the pull — critical on corner and manhole rollers where the cable is under side load.
Corrosion-Resistant Finish
Galvanized (electro or hot-dip) or stainless steel frames resist corrosion in wet trenches, coastal and outdoor storage conditions — long service life and reusable across many projects.
Applications
| Application | Detail |
|---|---|
| Power Distribution | LV/MV/HV cable laying in trenches and duct banks for DEWA (UAE), SEC (Saudi Arabia), KAHRAMAA (Qatar) and other GCC utility projects — straight rollers on runs, corner rollers at bends, manhole rollers at pit entries |
| Infrastructure & Roads | Underground cable installation for road crossings, street lighting, metro, airport and utility infrastructure across the GCC |
| Oil & Gas & Industrial | Power and control cable laying in process plants, substations and cable pits at oil & gas and industrial facilities |
| Building & MEP | Cable pulling through basement cable trenches, riser ducts and cable tray routes on commercial and industrial building projects |
| Telecom & Fibre | Fibre optic and communication cable installation in tight urban ducts and deeper manholes where bend protection is critical |
| Substations & Cable Pits | Manhole guide rollers at substation cable pit entries to feed cable smoothly from trench level down into vertical ducts |
Frequently Asked Questions
What is a cable laying roller and how does it work?
What is a triple corner cable roller used for?
What material and finish are the rollers?
How many rollers do I need for a pull?
