Dynaweld · Pipe layout & marking tool
Dynaweld Argon Regulator with Flowmeter for TIG & MIG
Flexible wrap for marking square cut and weld lines on 1" to 48" pipe, with a built-in tape measure and circumference scale.
- 1" to 48" pipe
- 4 sizes: WW-16 to WW-19
- Heat resistant to 360°F / 182°C
- Asbestos-free
- Oil & sea water resistant
Available sizes
Send the model or pipe sizes and we reply with pricing and availability.
Delivery from Dubai across the UAE, Saudi Arabia and Qatar. Shipping & service areas
- Dubai-based supplierGlobal Hardware & Tools LLC
- UAE, Saudi Arabia & QatarDelivery from Dubai
- Kuwait, Oman, MENA & AfricaSupplied via our UAE hub
- Quotes on WhatsAppPricing and availability
Why pipe fitters choose Dynaweld
Key features & benefits
Specifications
Which size do I need?
Choose by pipe outside diameter. WW-17 and WW-17A overlap between 6" and 16".
| Model | Size | Pipe range | Wrap length | Wrap width | Tape measure |
|---|---|---|---|---|---|
| WW-16 | Small | 1" – 6" | 30" (762 mm) | 2-5/8" (67 mm) | 28" |
| WW-17 | Medium | 2" – 16" | 60" (1,524 mm) | 3-7/8" (98 mm) | 36" |
| WW-17A | Large | 6" – 30" | 120" (3,048 mm) | 5-1/4" (133 mm) | 36" |
| WW-19 | X-Large | 12" – 48" | 180" (4,572 mm) | 7" (178 mm) | 48" |
Swipe to see all columns →
Material specifications (all models)
| Material | Non-asbestos high-density compound |
|---|---|
| Temperature rating | Up to 360°F (182°C) |
| Chemical resistance | Oil, gasoline, kerosene, water and sea water |
| Edge profile | Thick and straight, for precise scribing and marking |
| Printed scale | Circumference, ¼, ½ and ¾ circumference values, and actual pipe diameter |
| Tape measure | Screen-printed on each wrap (28", 36" or 48" depending on model) |
| Use orientation | Right-side up only |
| Container | Durable, reusable storage tube |
Good to know
Frequently asked questions
What is a wrap around pipe wrap used for?
A wrap around pipe wrap wraps around the circumference of a pipe so its straight edge gives a square guide line for cutting, bevelling or weld preparation. The Dynaweld wrap also prints the circumference, quartering marks, pipe diameter and a tape measure, so it replaces separate tapes and calculations on the job.
Which pipe wrap size do I need?
Choose by pipe outside diameter: WW-16 for 1"–6", WW-17 for 2"–16", WW-17A for 6"–30" and WW-19 for 12"–48". WW-17 and WW-17A overlap between 6" and 16"; WW-17A suits the upper end of that range. For pipe above 30", use the WW-19.
Is the pipe wrap asbestos-free and heat resistant?
Yes. It is made from non-asbestos high-density compound and is heat resistant to 360°F (182°C), so it can be used near welding and on pre-heated pipe. It also resists oil, gasoline, kerosene, water and sea water.
Do you supply pipe wraps in the UAE, Saudi Arabia and Qatar?
Yes. We supply the WW-16, WW-17, WW-17A and WW-19 across the UAE (Dubai, Abu Dhabi, Sharjah), Saudi Arabia (Riyadh, Jeddah, Dammam) and Qatar (Doha), and from our Dubai head office to Kuwait, Oman and Africa, including Nigeria, Kenya, Egypt and Ethiopia.
How do I get a price for the wrap around pipe wrap?
Send us the model or pipe sizes you need on WhatsApp +971 55 697 6535 and we will reply with pricing and availability.
Need a price for a single wrap or a full set?
Send the model or pipe sizes and we reply with pricing and availability. Supplied from Dubai to Abu Dhabi, Sharjah, Riyadh, Jeddah, Dammam and Doha.
More information
Full product details
Full description: overview, applications & how to use

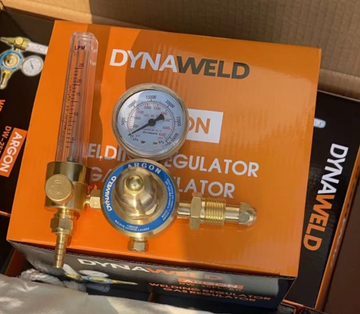

The Dynaweld argon regulator controls shielding gas flow for TIG and MIG welding. It combines a brass pressure regulator, a cylinder contents gauge and a clear tube flowmeter reading up to 25 L/min, so welders set an exact, stable argon flow at the torch. Supplied across the UAE, Saudi Arabia and Qatar from our Dubai head office.
Specifications
| Parameter | Specification |
|---|---|
| Gas | Argon and argon/CO₂ mixes (shielding gas) |
| Flow indication | Tube flowmeter, 0–25 L/min (LPM) |
| Gauge | Cylinder pressure (contents) gauge |
| Body | Heavy-duty brass |
| Outlet | Hose barb for the welding gas hose |
| Inlet | Standard argon cylinder connection with nut and nipple |
| Processes | TIG (GTAW) and MIG (GMAW) welding |
Key Features
Accurate Flowmeter
The ball-float flowmeter shows the actual gas flow in litres per minute, so the same setting can be repeated on every job and gas is not wasted.
Contents Gauge
The cylinder gauge shows how much argon is left, so welders can change cylinders before a weld is spoiled by a loss of shielding.
Brass Construction
A machined brass body handles workshop and site use and resists corrosion in hot, humid conditions.
Simple Setup
Screw it onto the cylinder, push the gas hose onto the barb outlet and set the flow with the adjusting knob.
Applications
- Stainless steel and carbon steel TIG pipe welding in oil & gas and petrochemical projects
- MIG welding in steel fabrication and structural workshops
- Aluminium TIG and MIG welding
- Maintenance, repair and shutdown welding on site
How to Use
- Check that the cylinder is argon or an argon mix, then briefly crack the cylinder valve to clear dust.
- Fit the regulator to the cylinder and tighten the nut with a spanner.
- Connect the gas hose to the outlet barb and secure it with a clip.
- Open the cylinder valve slowly and set the flow on the flowmeter, typically 8–15 L/min for TIG.
- Close the cylinder valve after work.
Dynaweld Argon Regulator Supplier in the UAE & GCC
Global Hardware & Tools LLC is a Dubai-based supplier of Dynaweld argon regulators and welding gas equipment for projects across the UAE, Saudi Arabia and Qatar. Buyers in Kuwait, Oman, Iraq and across Africa, including Nigeria, are supplied from our UAE head office in Dubai. Also available: oxygen regulator and acetylene regulator. For pricing and availability, WhatsApp +971 55 697 6535.
