Aquasol I-Purge X
Inflatable Purge Bladder System
The most adaptable modular inflatable purge bladder for TIG pipe welding. Patented Bladder Expansion Technology fits one unit to multiple pipe sizes — 2" to 70". Spark-resistant, high-heat, quick-connect. CE approved, ISO certified, made in the USA. Supplied across the UAE, Qatar, Saudi Arabia and wider GCC.
Product Overview
What It Is
The Aquasol I-Purge X is a modular inflatable purge bladder system for TIG (GTAW) pipe welding. Two inflatable bladders seal inside the pipe on either side of the weld joint, creating a purge chamber that fills with inert gas to protect the weld root from oxidation. Its patented Bladder Expansion Technology (BET) lets one unit fit multiple pipe sizes and all schedules within its range — a reusable, long-term alternative to water-soluble paper dams.
Who Uses It
TIG welders, pipe fabricators, welding supervisors and QC engineers on stainless steel and alloy pipework across oil & gas, petrochemical, pharmaceutical, food & beverage, and power generation projects throughout the UAE, Qatar, Saudi Arabia, Kuwait and Oman. Ideal for fabrication shops and any pipe with accessible ends.
Where It Is Used
Stainless and duplex pipe TIG welding in fabrication shops and on-site across the GCC — from Dubai and Abu Dhabi to Doha, Ras Laffan, Riyadh, Dammam, Jubail, Kuwait and Muscat. Used wherever a fast, reusable, high-quality purge is needed on repeat pipe diameters.
Tri-Flow Purge System
🔵 BLUE — Inflate & Purge
Inflates the bladders to seal against the pipe wall, then floods the weld zone with inert gas. The primary connection — required on every setup. 30 SCFH (15 LPM) for 2"–36"; 60 SCFH (28.5 LPM) for 38"–48".
⚫ BLACK — Direct Purge
Optional secondary line that floods the weld zone with inert gas and evacuates oxygen at a faster rate — expediting the purge on larger pipe or where fast turnaround matters.
⚪ WHITE — Exhaust / Monitor
Connects to an oxygen monitor such as the Aquasol POM-100B, reading down to 100 PPM (0.01%) for continuous or spot O₂ verification in the weld zone before welding starts.
Complete System Sizes (XABLD)
I-Purge X Modular Inflatable System — Sold as Complete System
| Item No | Min Dia. | Max Dia. | Harness Length | Description |
|---|---|---|---|---|
| XABLD 2-3 | 2" (51mm) | 3" (76mm) | 11" (279mm) | Expandable double purge bag system w/ high heat harness |
| XABLD 4-6 | 4" (102mm) | 6" (152mm) | 11" (279mm) | Expandable double purge bag system w/ high heat harness |
| XABLD 8-12 | 8" (203mm) | 12" (305mm) | 11" (279mm) | Expandable double purge bag system w/ high heat harness |
| XABLD 14-18 | 14" (356mm) | 18" (457mm) | 16" (406mm) | Expandable double purge bag system w/ high heat harness |
| XABLD 20-26 | 20" (509mm) | 26" (660mm) | 18" (457mm) | Expandable double purge bag system w/ high heat harness |
| XABLD 28-36 | 28" (711mm) | 36" (914mm) | 20" (509mm) | Expandable double purge bag system w/ high heat harness |
| XABLD 38-48 | 38" (965mm) | 48" (1219mm) | 36" (914mm) | Expandable double purge bag system w/ high heat harness |
| XABLD 50-58 | 50" (1270mm) | 58" (1473mm) | 42" (1067mm) | Expandable double purge bag system w/ high heat harness |
| XABLD 60-70 | 60" (1524mm) | 70" (1778mm) | 42" (1067mm) | Expandable double purge bag system w/ high heat harness |
I-Purge X Isolator® — One-Sided Plug (XISO)
| Item No | Dimensions | Metric | Description |
|---|---|---|---|
| XISO 2-3 | 2-3" | 51-76mm | One-sided plug with 10' hose and valve |
| XISO 4-6 | 4-6" | 102-152mm | One-sided plug with 10' hose and valve |
| XISO 8-12 | 8-12" | 203-305mm | One-sided plug with 10' hose and valve |
| XISO 14-18 | 14-18" | 356-457mm | One-sided plug with 10' hose and valve |
| XISO 20-26 | 20-26" | 509-660mm | One-sided plug with 10' hose and valve |
| XISO 28-36 | 28-36" | 711-914mm | One-sided plug with 10' hose and valve |
| XISO 38-48 | 38-48" | 965-1219mm | One-sided plug with 10' hose and valve |
| XISO 50-58 | 50-58" | 1270-1473mm | One-sided plug with 10' hose and valve |
| XISO 60-70 | 60-70" | 1524-1778mm | One-sided plug with 10' hose and valve |
Optional Extended Length High-Heat Harnesses
| Item No | Length | Metric | Application |
|---|---|---|---|
| ABLD-ELH-24 | 24" (2') | 610mm | Extended length high heat harness |
| ABLD-ELH-36 | 36" (3') | 914mm | Extended length high heat harness |
| ABLD-ELH-48 | 48" (4') | 1219mm | Extended length high heat harness |
| ABLD-ELH-72 | 72" (6') | 1828mm | Extended length high heat harness |
| ABLD-ELH-CUSTOM | Any size | Any size | Custom lengths available on request |
Key Features & Benefits

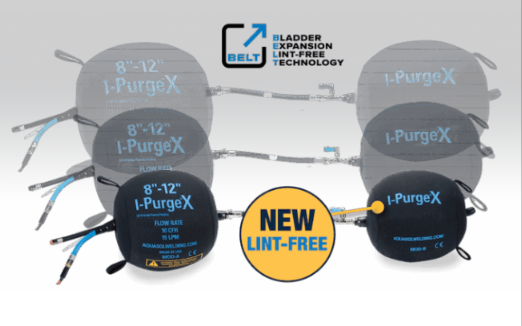

Bladder Expansion Technology (BET)
Patented technology lets one unit fit multiple pipe sizes and all schedules within its range — an 8-12" unit fits every pipe from 8" to 12". Bladders expand and contract repeatedly, dramatically reducing the number of purge units a fabrication shop needs to stock.
Spark-Resistant, High-Heat
The durable exterior cover is infused with spark-resistant elements — it does not combust when exposed to flames and sparks, and withstands up to 400°F (205°C) against the pipe. The fiberglass bridge harness withstands up to 1200°F (650°C).
Quick-Connect Modules
Push-button quick-connect fittings snap modules to the harness in seconds — no tools required. Individual modules and parts can be replaced separately, avoiding costly re-purchase of a complete system if one component wears or a new size is needed.
Inert Gas Diffuser
Patent-pending diffuser reduces turbulence by dispersing inert gas equally in all directions within the weld zone — improving weld quality and consistency by preventing uneven gas flow across the root.
Proprietary Relief Valve
Factory pre-set relief valves deliver precise flow rates, maintain an optimum seal on the pipe wall, and prevent over-inflation and bladder burst. A low-profile relief valve is available on the 2" and 3" models.
Reducer & Isolator Configurations
Combine modules of different sizes to create a reducer for stepped pipe joints, or use the I-Purge X Isolator as a one-sided pipe plug for purging valves and tanks, or for sealing during servicing, cleaning and inspection.
Applications by Industry
| Industry | Application |
|---|---|
| Oil & Gas — Pipe Fabrication | Root pass purge for stainless and duplex pipe TIG welding on process piping and pipeline spools across ADNOC (UAE), Aramco (Saudi Arabia), QatarEnergy (Qatar), KOC (Kuwait) and PDO (Oman) |
| Petrochemical | High-quality purge for corrosion-resistant alloy pipework in refineries and chemical plants across Ruwais, Jubail, Ras Laffan and Dammam — where reusable bladders suit repeat pipe diameters |
| Pharmaceutical & Food | Hygienic stainless steel process pipe welding where oxide-free internal welds are mandatory — reusable, clean bladder purging for high-purity systems |
| Power Generation | Boiler, header, and high-pressure pipe TIG welding for power plant construction and maintenance across the GCC — extended harnesses handle pre-heat/high-heat applications |
| Shipbuilding & Offshore | Stainless marine and offshore process pipe welding in shipyards and on platforms across UAE, Saudi Arabia and Qatar |
| Isolation & Testing | I-Purge X Isolator as a pipe plug for valve/tank purging, and for sealing pipe systems during servicing, cleaning, inspection and pressure testing |
Frequently Asked Questions
What is an inflatable purge bladder and how does it work?
What pipe sizes does the I-Purge X fit?
What temperature can the I-Purge X withstand?
What is the Tri-Flow hose system?
