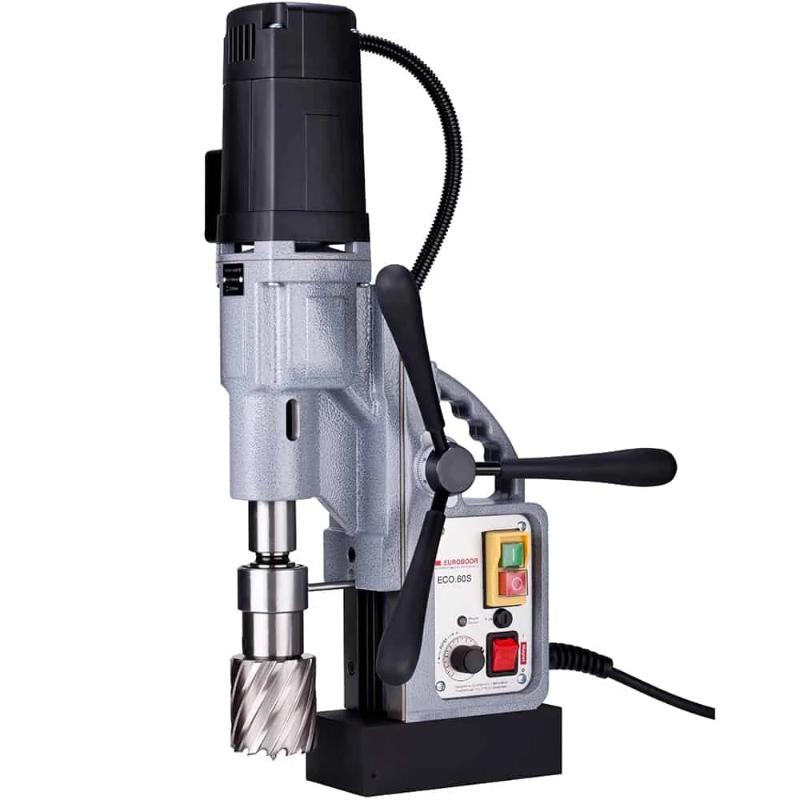

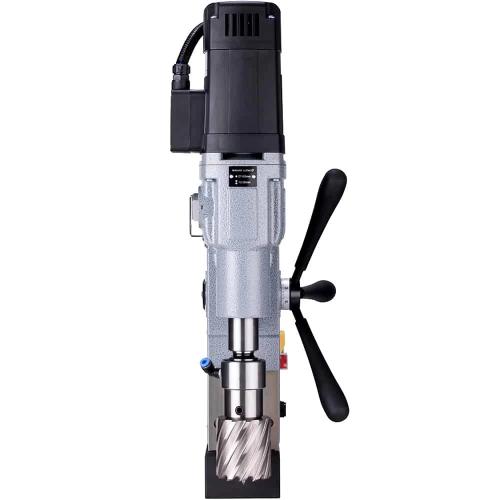

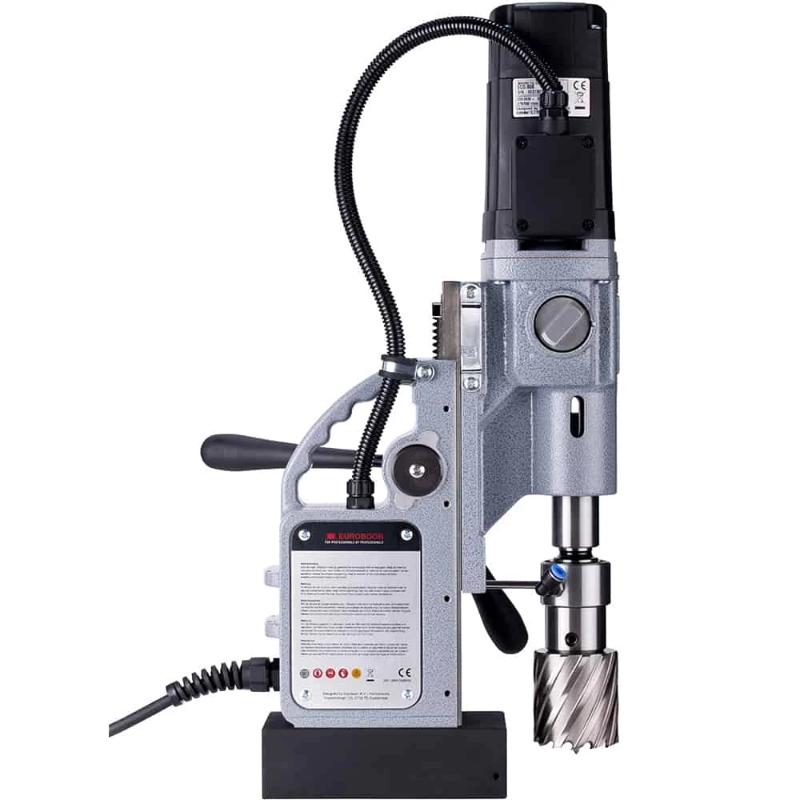

Euroboor Magnetic Drilling Machine ECO.60S

Euroboor Magnetic Drilling Machine ECO.60S

Regular price Dhs. 0.00 AED
Regular price Sale price Dhs. 0.00 AED
Sale Sold out
  • Electronic speed adjustment

  • Heat protection

  • High accuracy capstan hub

  • Morse Taper 3 spindle with integrated tool cooling and lubrication
    • Integrated slide and two-speed oil lubricated gearbox for:
      • High accuracy
      • Enlarged lifecycle
      • Minimal vibration
  • High precision height adjustment for:
    • Low maintenance
    • Minimal wear correction
  • Strong dual coil CNC machined magnet

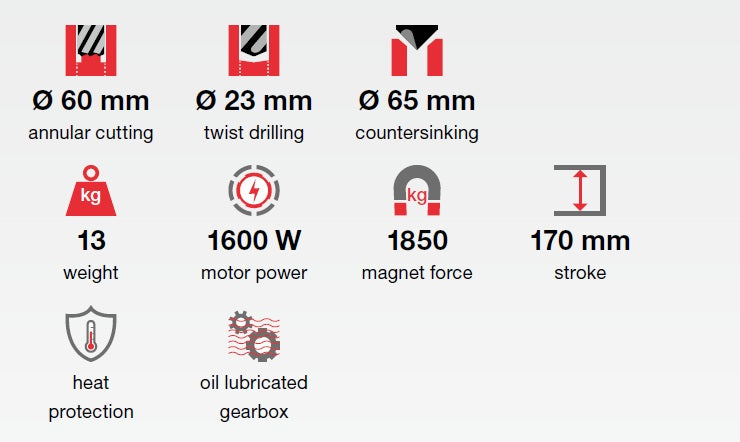

Technical data
Annular cutting Ø 12 - 60 mm
Twist drilling Ø 1 - 23 mm
Countersinking Ø 10 - 65 mm
Length 320 mm
Width 200 mm
Height 452 - 622 mm
Stroke 170 mm
Weight 13 kg
Magnet (l x w x h) 168 x 84 x 49 mm
Magnetic force 1850 kg
Motor power 1600 W
Total power 1700 W
Speed (no load) (I) 60 - 275 rpm
  (II) 100 - 500 rpm
Speed (load 1600 W) (I) 60 - 275 rpm
  (II) 100 - 500 rpm
Spindle (Weldon) MT 3 19,05 mm
Voltage 110 - 120 V / 60 Hz
  220 - 240 V / 50 - 60 Hz


 Largest stockist of Magnetic Drill Machine euroboor in Abu Dhabi, Dubai, UAE, Iraq, Saudi Arabia, Kuwait, Oman.
