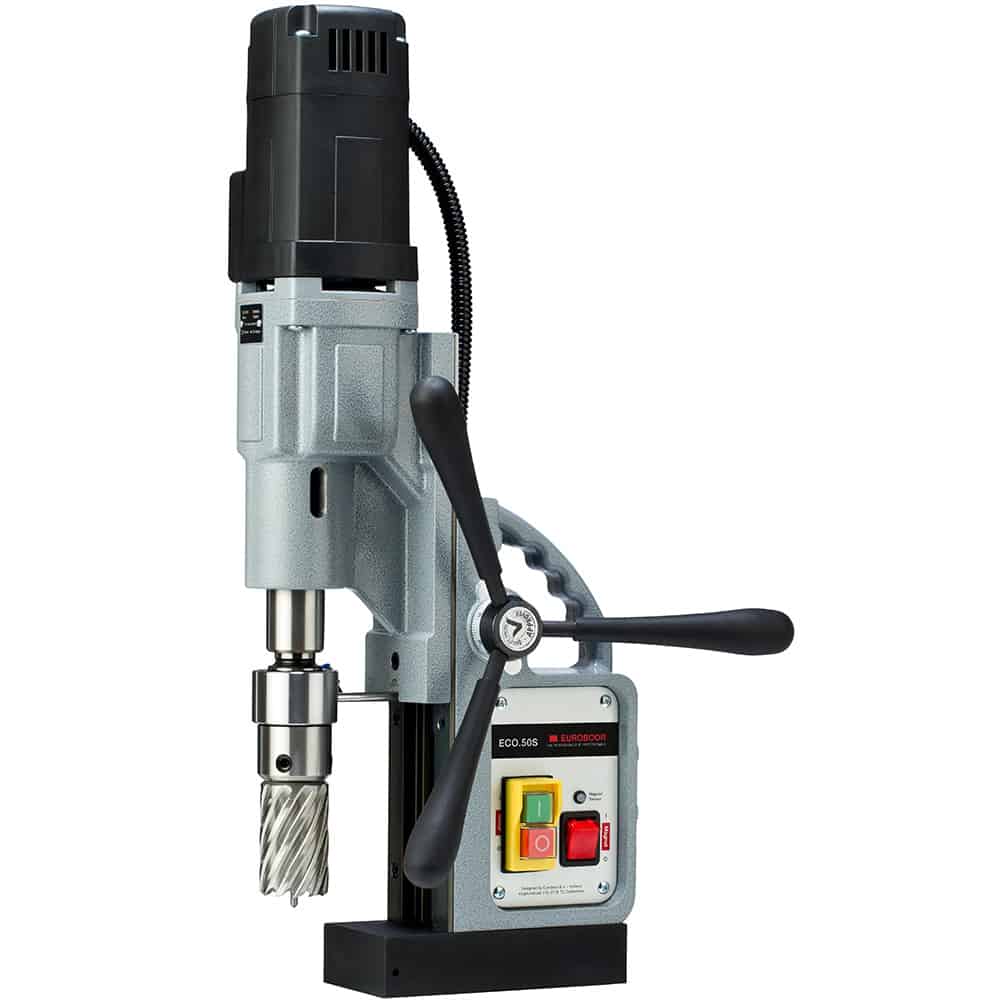

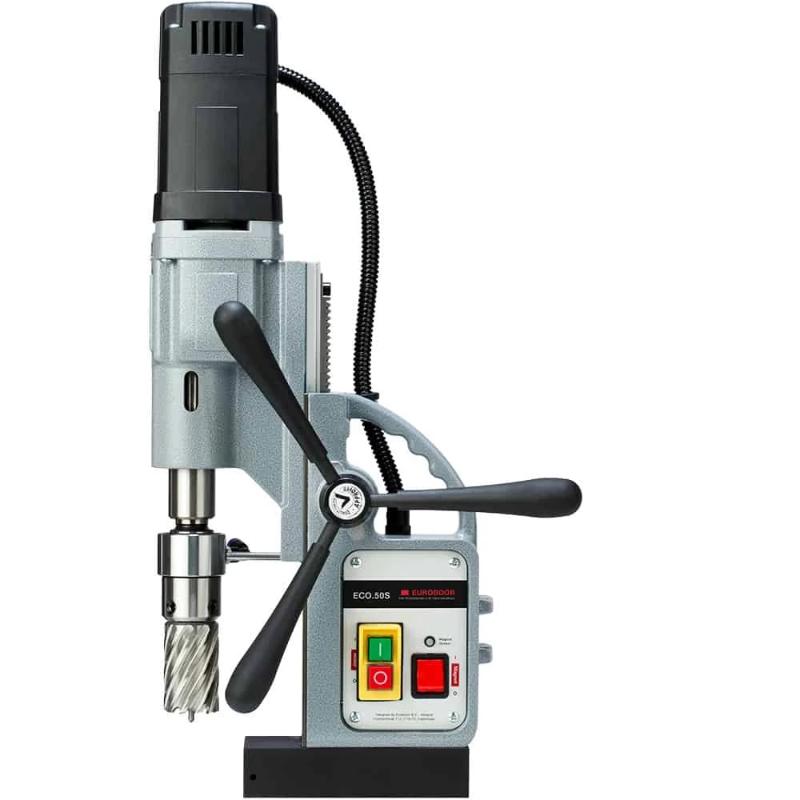

- High accuracy capstan hub
- Morse Taper 3 spindle with integrated tool cooling and lubrication
- Integrated slide and two-speed oil lubricated gearbox for:
- High accuracy
- Enlarged lifecycle
- Minimal vibration
- High precision height adjustment for:
- Low maintenance
- Minimal wear correction
- Strong dual coil CNC machined magnet
Technical data |
|
Annular cutting |
Ø 12 - 50 mm |
Twist drilling |
Ø 1 - 23 mm |
Countersinking |
Ø 10 - 55 mm |
Length |
320 mm |
Width |
200 mm |
Height |
445 - 615 mm |
Stroke |
170 mm |
Weight |
11,2 kg |
Magnet (l x w x h) |
160 x 80 x 42 mm |
Magnetic force |
1700 kg |
Motor power |
1250 W |
Total power |
1300 W |
Speed (no load) |
(I) 315 rpm |
|
(II) 690 rpm |
Speed (load 1250 W) |
(I) 235 rpm |
|
(II) 415 rpm |
Spindle (Weldon) |
MT3 19,05 mm |
Voltage |
110 - 120 V / 60 Hz |
|
220 - 240 V / 50 - 60 Hz |
