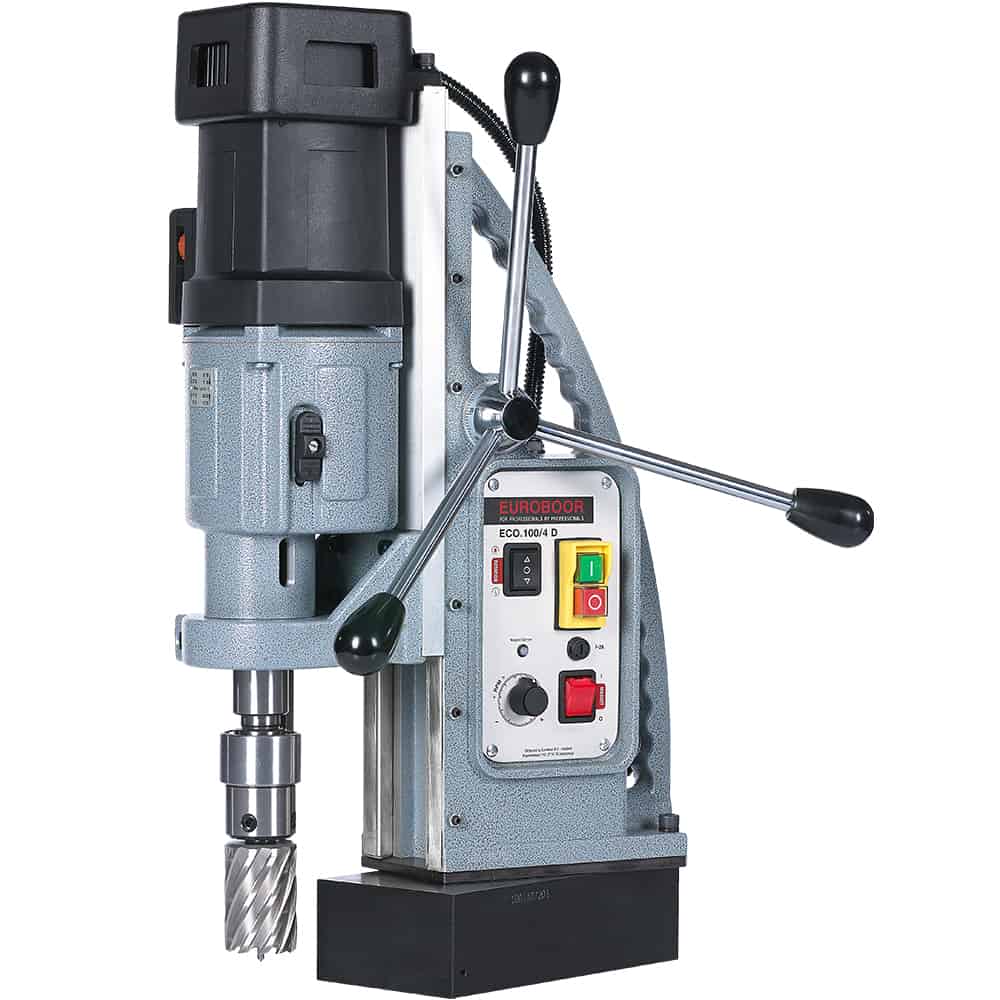

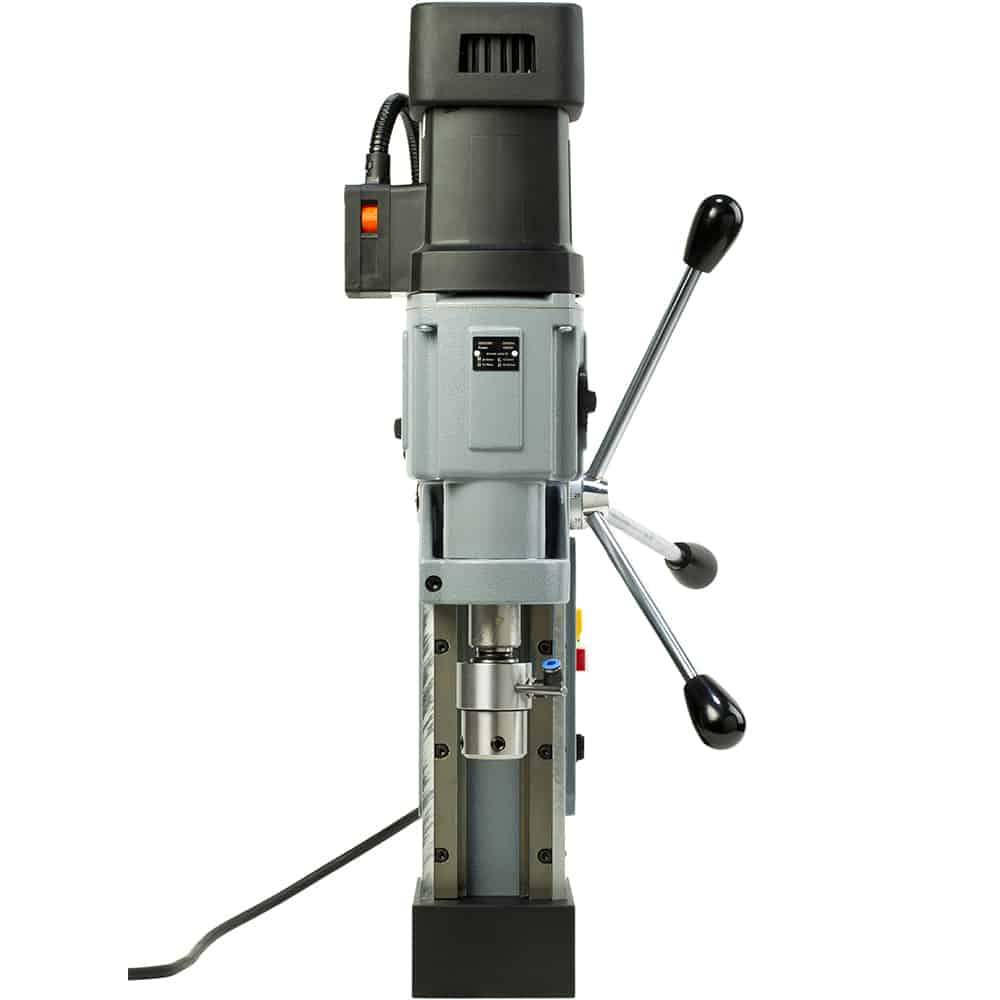

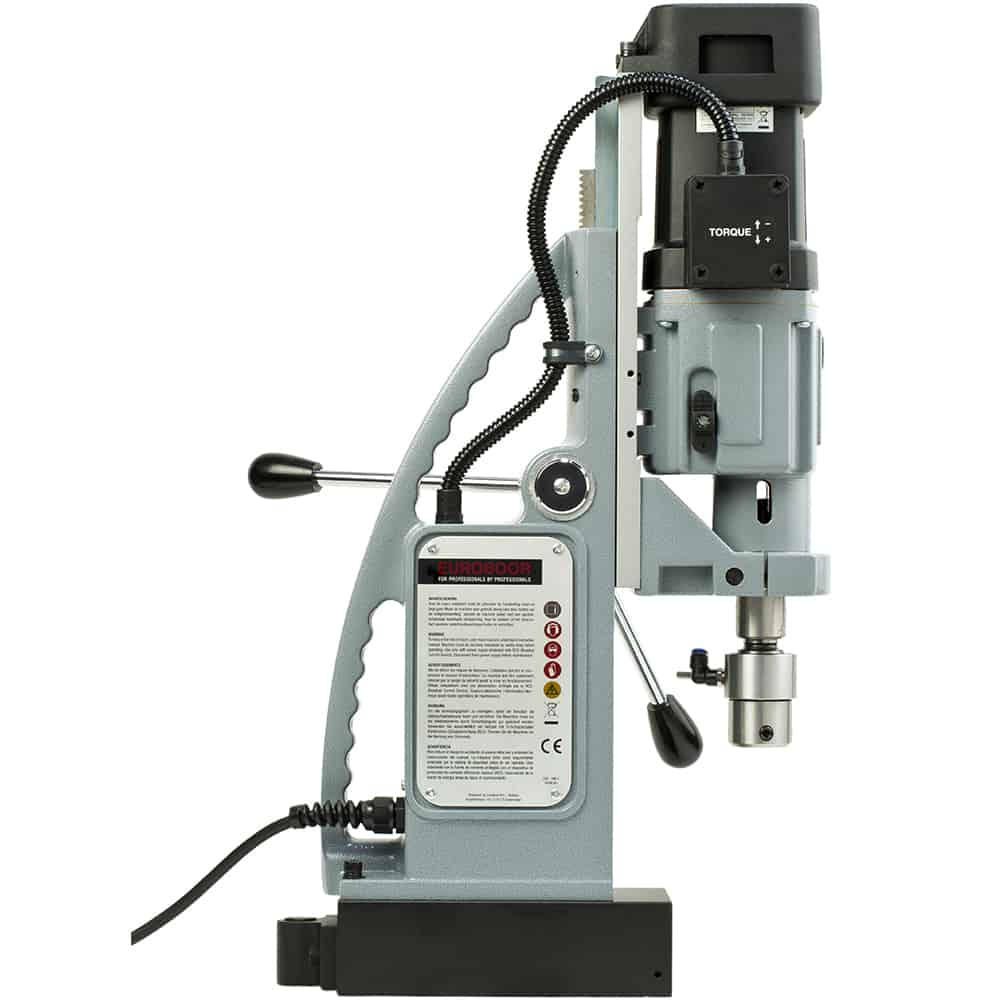

Euroboor Magnetic Drilling Machine ECO.100/4(D)
Euroboor Magnetic Drilling Machine ECO.100/4(D)
Regular price
Dhs. 0.00 AED
Regular price
Sale price
Dhs. 0.00 AED
Unit price
/
per
Couldn't load pickup availability
- Four-speed gearbox
- Particularly suitable for threading
- Right/left functionality and electronic speed adjustment
- Torque control on motor house
- Heat protection
- Morse Taper 3 spindle with integrated tool cooling and lubrication
- Strong dual coil CNC machined magnet
ECO.100/4 D
- Precise positioning swivel base

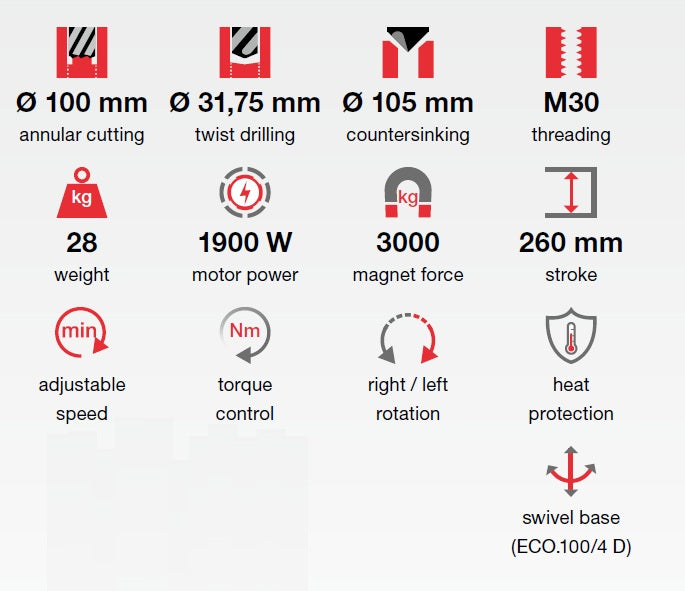

| Technical data | |
| Annular cutting | Ø 12 - 100 mm |
| Twist drilling | Ø 1 - 31,75 mm |
| Countersinking | Ø 10 - 105 mm |
| Threading | M3 - M30 |
| Length | 365 mm |
| Width | 310 mm |
| Height | 515 - 715 mm |
| Stroke | 260 mm |
| Weight | 28 kg |
| Magnet (l x w x h) | 220 x 110 x 64 mm |
| Magnetic force | 3000 kg |
| Motor Power | 1900 W |
| Total power | 2050 W |
| Speed (no load) | (I) 42 - 110 rpm |
| (II) 65 - 190 rpm | |
| (III) 140 - 400 rpm | |
| (IV) 220 - 620 rpm | |
| Speed (load 1900 W) | (I) 85 rpm |
| (II) 152 rpm | |
| (III) 270 rpm | |
| (IV) 480 rpm | |
| Spindle (Weldon) | MT3 19,05 mm |
| Voltage | 110 - 120 V / 60 Hz |
| 220 - 240 V / 50 - 60 Hz |
Largest stockist of Magnetic Drill Machine euroboor in Abu Dhabi, Dubai, UAE, Iraq, Saudi Arabia, Kuwait, Oman.
